TR-D4S5 v2 2.8
PoE:
69WDR:
DWDR 105 dBCorridor mode:
YesBitrate (Mb/sec):
8Archive, Tb:
151Power supply:

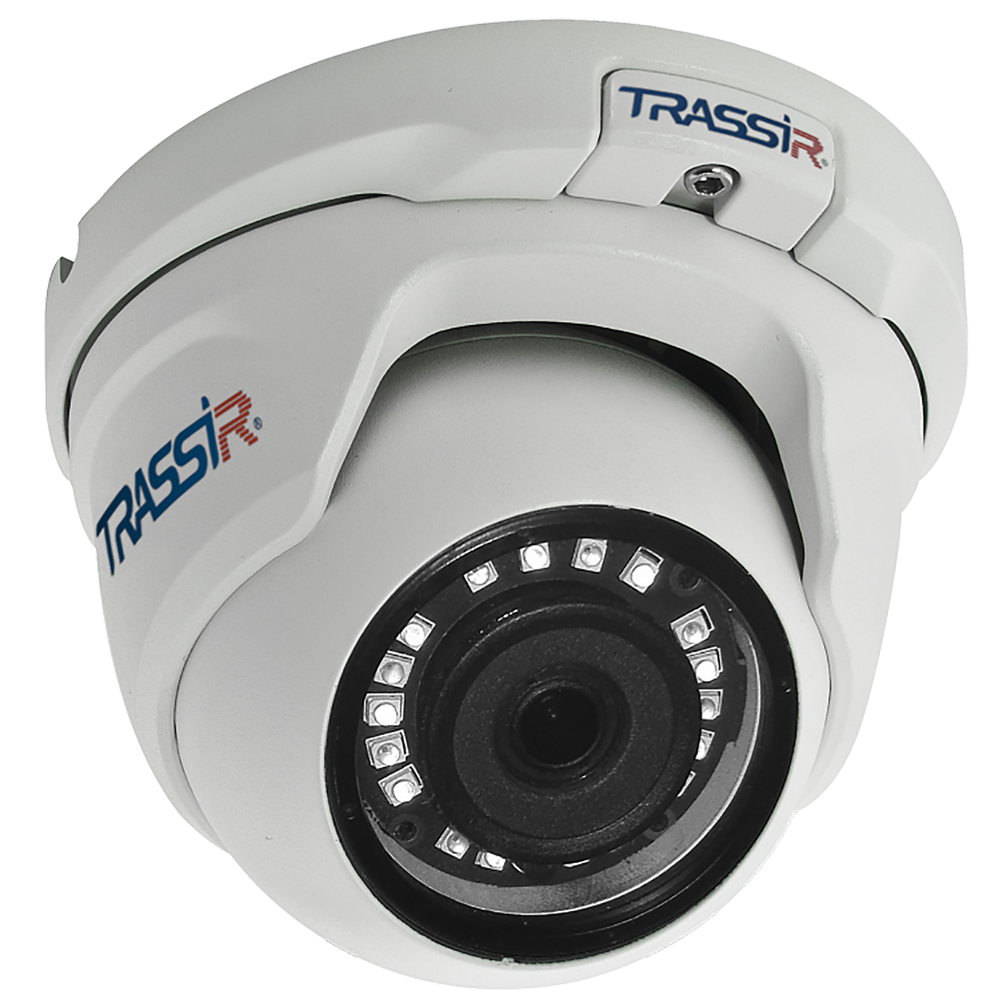

DC 12 V, PoETRASSIR TR-D4S5 v2 (2.8 mm)
4 MP (2560 × 1440) IP-camera adapted for outdoor use at any time of day or year under direct precipitation: supplied in a dust- and moisture-resistant case meeting IP66 standards, the operating temperature range has been extended to –40 ° C ... +60° C, and TVS 4000 V lightning protection and IR illumination with a range of 25 m are provided.
Functionality:
- - Detection of people, movementt, crossing of virtual lines, intrusion into prohibited areas and exiting from the area.
- - WDR 105 dB - Eliminates the effect of fluctuations in illumination levels on picture quality.
- - 3D DNR - Noise Reduction.
- - Corridor mode (vertically oriented video).
- - Defog - contrast enhancement to neutralize the effect of fog and smoke.
- - BLC - Backlight Compensation.
- - Day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction; and in the dark it is mechanically shifted away from the sensor to increase its sensitivity.
- - Compression of H.265 +, H.265 and H.264.
- - Broadcast speed - 25 fps. Bitrate - 8 Mbps.
Basics:
TR-D4S5 v2 (2.8 mm) is built on a 1/3" CMOS sensor with progressive scanning, 0.005 lux sensitivity. Equipped with a 2.8 mm fixed focal length lens, horizontal field of view 94°, vertical field of view - 50°. Power supply - DC 12 V or PoE. Maximum power consumption - 4.1 W. Size - Ø105.5 × 72.0 mm. Weight - 335 g. Case material - metal.
TR-D4S5v2 passport (eng).pdf
