TR-D2S5-noPoE v2 3.6

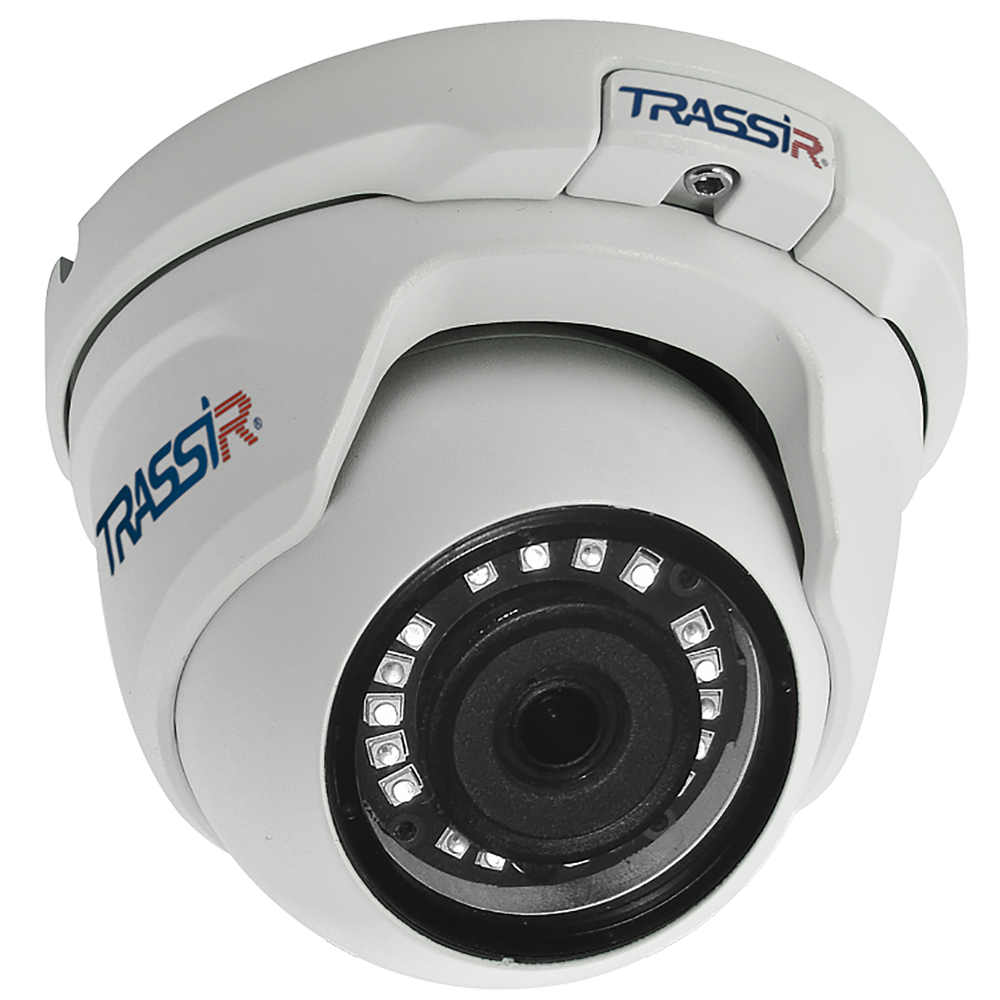

TRASSIR TR-D2S5-noPoE v2 (3.6 mm)

2 megapixel (1920 × 1080) IP-camera is designed taking into account the conditions of round-the-clock year-round outdoor operation: the metal case is protected from moisture and dust according to the IP66 standard, operating temperatures from –40 ° C ... +60 ° C, lightning protection - TVS 4000 V, range integrated lighting action - 25 m.

Functionality:

• - Detection of people and movement.
• - Detection of crossing the virtual line.
• - Area control (detection of intrusion / exit from the zone).
• - WDR 105 dB - Reduces the impact of changes in light level on picture quality.
• - 3D DNR - spatial noise reduction.
• - Day / night mode with ICR: in sufficient light, the filter blocks the infrared rays that distort color rendition, and in the dark it is mechanically shifted away from the matrix so that its sensitivity is increased and the backlight can work.
• - The data transfer rate is 25 frames per second.
• - Compression of H.265 + and H.264 +, H.265 and H.264.
• - Bitrate 8 Mbps.
• - Corridor Mode - Supports 9:16 vertical resolution.
• - Defog - enhances contrast to minimize the effect of fog and smoke.
• - BLC - Backlight Compensation.

TR-D2S5-noPoE v2 (3.6 mm) is based on a 1 / 2.9 "progressive scan CMOS sensor, 0.005 lux sensitivity. Equipped with a 3.6 mm fixed focal length lens, horizontal viewing angle 81 °, vertical - 44 °, aperture F / 1.8. Power supply - DC 12 V. Maximum power consumption - 2.8 W. Size - Ø105.5 × 72.0 mm. Weight - 315 g.
