TR-D2121IR3 v6 3.6
Technical specifications
PoE:
69Audio:
Built-in microphoneWDR:
RWDR 120 dBBitrate (Mb/sec):
8Archive, Tb:
151Power supply:
DC 12 V, PoEOverview

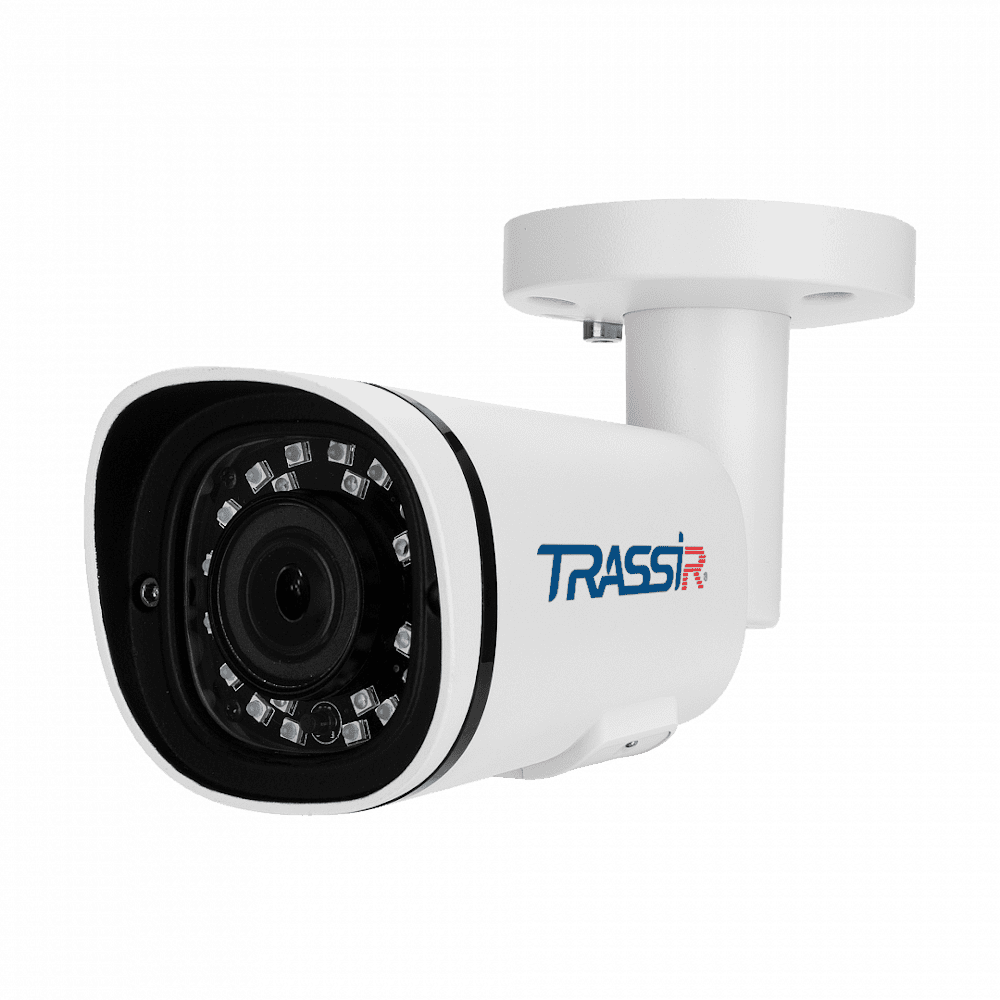

TRASSIR TR-D2121IR3 v6 (3.6 mm)
2 megapixel (1920 × 1080) IP-camera is designed taking into account the conditions of round-the-clock year-round outdoor operation: the metal case is protected from moisture and dust according to the IP67 standard, operating temperatures from –40 ° C ... +60 ° C, lightning protection - TVS 4000 V, range integrated lighting action - 35 m.
Functionality:
- - Built-in microphone.
- - Detection of people.
- - Motion detection.
- - Area control (detection of intrusion / exit from the zone).
- - Detection of crossing the virtual line.
- - WDR 120 dB - minimizes the effect of changes in illumination levels on picture quality.
- - 3D DNR - spatial noise reduction.
- - Corridor mode - vertical resolution shooting with an aspect ratio of 9:16.
- - Defog - increase the contrast to minimize the effect of fog and smoke.
- - BLC - Backlight Compensation.
- - Day / night mode with ICR, with sufficient illumination to block the rays of the infrared range to normalize color reproduction; in the dark, the filter is shifted to the side to expand the matrix's sensitivity to the infrared range and work the backlight.
- - Compression with H.265 +, H.264 +, H.265, H.264 codecs.
- - Broadcast speed - 25 fps.
Basics:
The TR-D2121IR3 v6 (3.6 mm) is equipped with a 3.6 mm fixed focal length lens, 82 ° horizontal field of view, 44 ° vertical field, F / 1.8 aperture. Equipped with an RJ-45 network port, a microSD slot with a capacity of up to 128 GB, a power connector. Power Supply - 12V DC or PoE. The maximum power consumption is 3.9 W. Dimensions - 183.3 × 67.3 × 63.9 mm. Weight - 460 g.
Documentation
Other Products
TR-D2121IR3v6_passport_en.pdf
