Technical specifications

PoE:

Audio:

Built-in microphone
Built-in speaker

WDR:

RWDR 120 dB

Bitrate (Mb/sec):

Archive, Tb:

151

Power supply:

DC 12 V, PoE

Overview

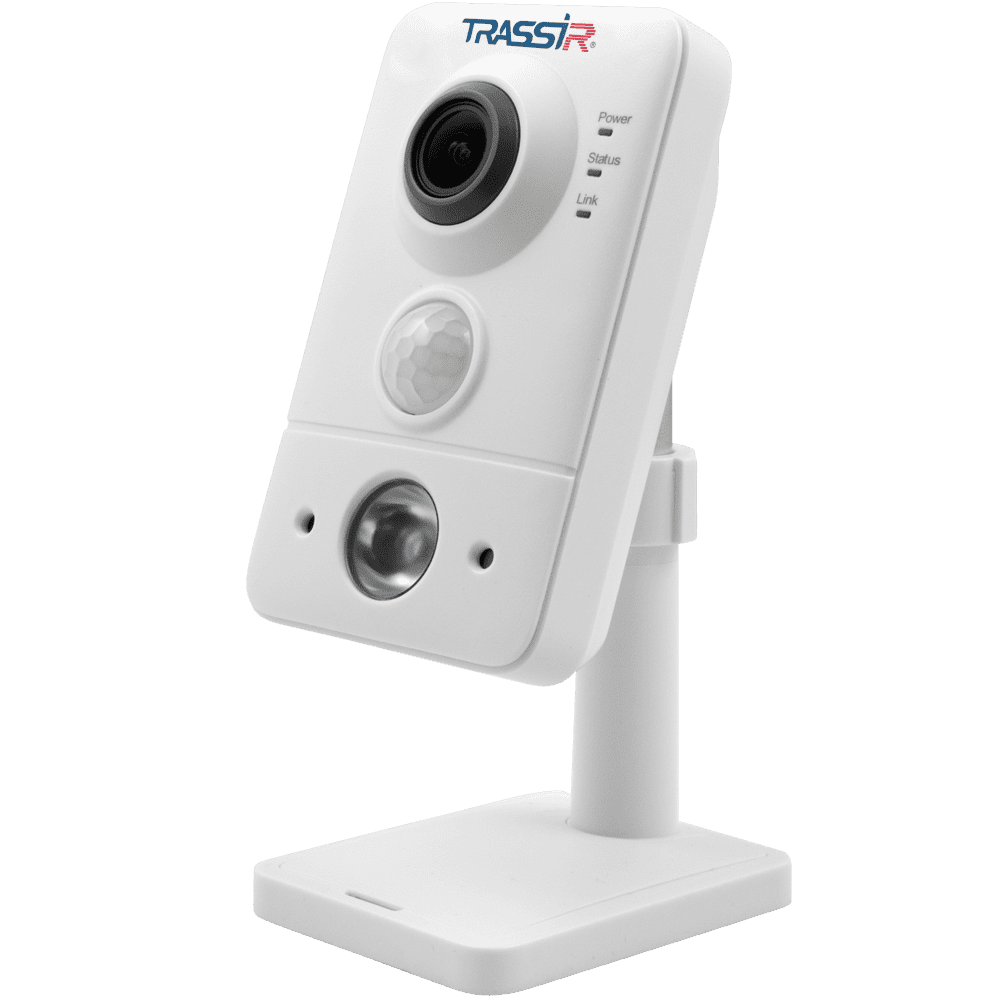

TRASSIR TR-D7121IR1

The 2MP (1920 × 1080) v6 (1.9mm) IP camera is designed for indoor use. Equipped with a PIR sensor for detecting movement based on temperature changes. Suitable for night video surveillance - equipped with IR illumination with a range of 10 m. Equipped with a microphone and speaker. On board a complex of analytical functions - motion detection, people detection, detection of crossing a virtual line and intrusion into the zone.

Functionality:

- WDR 120 dB - neutralizes the effect of different contrast lighting on image quality.
- 3D DNR - Noise Reduction.
- Support for vertical resolution with an aspect ratio of 9:16.
- Defog (anti-fog) - increase the contrast to eliminate the effect introduced by fog, smoke.
- BLC - Backlight Compensation.
- Day / night mode with ICR, with sufficient illumination refracting IR rays, and without illumination shifting to the side to increase the sensitivity of the matrix and the backlight.
- Compression with H.264, H.264 +, H.265, H.265 + codecs.
- Broadcast speed - 25 frames per second.

Basics:

TR-D7121IR1 v6 (1.9 mm) is equipped with a 1.9 mm fixed focal length lens, 82 ° horizontal field of view, 44 ° vertical field, F / 1.8 aperture. Equipped with an RJ-45 network port, a microSD slot with a capacity of up to 128 MB, a power connector. Power supply - 12V DC or PoE. The maximum power consumption is 2 W. Dimensions - 60.0 × 99.0 × 32.8 mm. Weight - 95 g.

Documentation

TR-D7121IR1v6_passport_en.pdf
