TR-D2181IR3 v3 3.6

Book A Demo How To Buy

Technical specifications

PoE:

Audio:

Built-in microphone

WDR:

RWDR 120 dB

Frame rate:

Electronic shutter speed:

1/3 ~ 1/10 000 s

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Bitrate (Mb/sec):

Archive, Tb:

151

Power supply:

12V DC

Overview

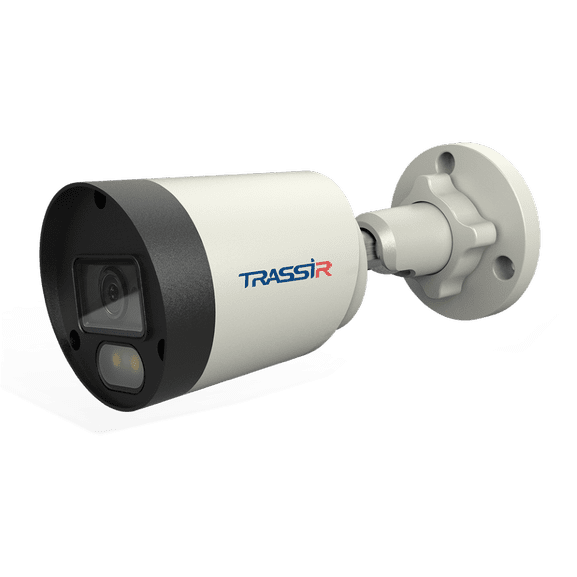

8 MP (3840 × 2160) TRASSIR TR-D2181IR3 v3 3.6 IP camera is adapted for outdoor use regardless of the season: housing protection against moisture and dust - IP67, operating temperatures from -40 °C ... +60 °C, lightning protection - TVS 4000V.

Functionality

Motion detection, virtual line crossing, area intrusion, area exit, abandoned and missing objects, loitering, crowd, parking, sound events, defocus, scene change.
WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
3D DNR - spatial noise reduction.
Corridor mode - shooting in vertically oriented resolution.
Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
BLC - backlight compensation.
IR illumination with a range of 30 m.
Compression H.265+, H.265, H.264+, H.264.
Broadcast speed and resolution of the main stream - 15 fps 3840 × 2160, 25 fps 2592 × 1944, 2560 × 1440, 2304 × 1728, 2048 × 1536, 1920 × 1080, 1280 × 960, additional - 15 fps 1280 × 720, 704 × 576 , 352×288.

Basics

TR-D2181IR3 v3 3.6 is built on a 1/2.7-inch CMOS sensor with 0.005 lux sensitivity. Supports day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor to increase its sensitivity. Bitrate - 10 Mbps. Equipped with a fixed lens (focal length - 2.8 mm, horizontal viewing angle - 105°, vertical - 56°, aperture - F / 1.8), RJ-45 network port, integrated microphone, slot for microSD up to 128 GB. Power supply - DC 12 V, PoE. The maximum power consumption is 6.8 W. Size - Ø67.9×165.3 mm. Weight - 364 g.

Documentation

TR-D2181IR3v3_passport_en.pdf
