TR-D2354WDZIR9

Overview:

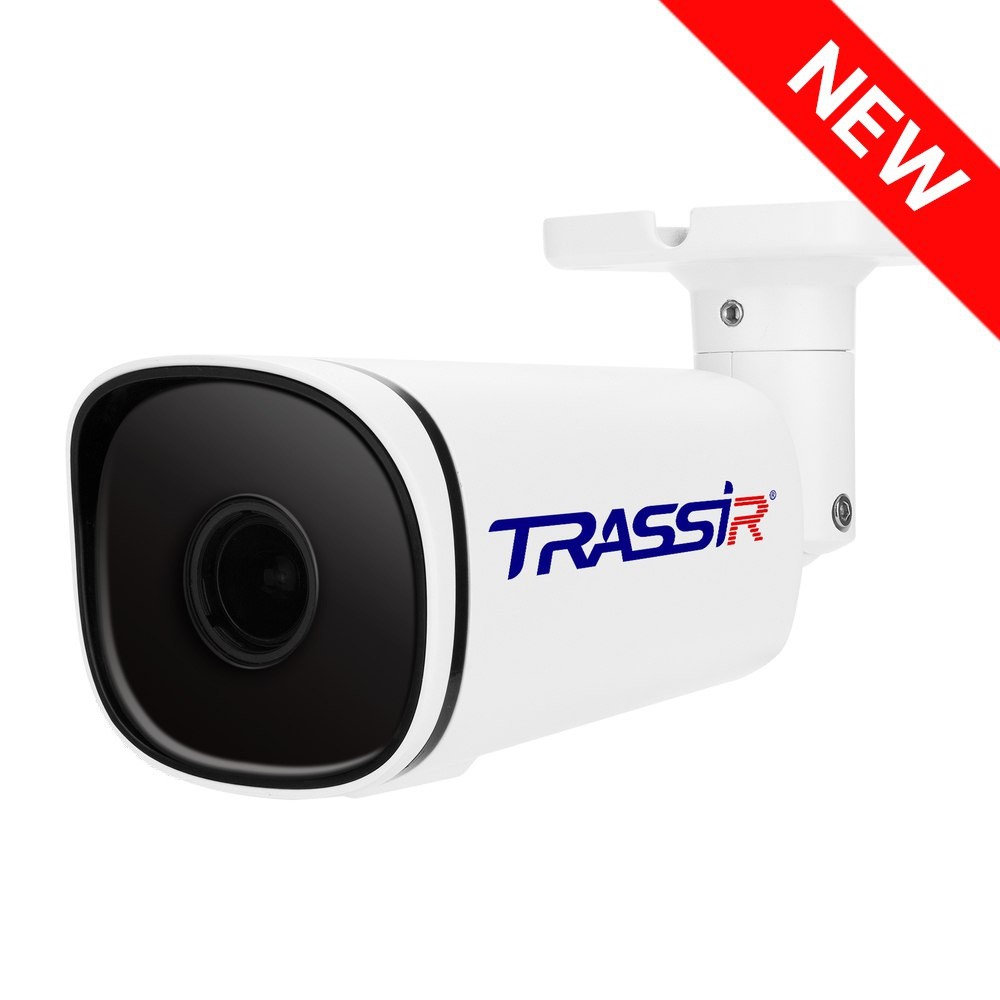

TRASSIR TR-D2354WDZIR9

Vandal-proof (IK08) 5 MP (2592x1920) IP camera TRASSIR TR-D2354WDZIR9 5–50 is adapted for year-round outdoor use: the housing is protected against moisture and dust according to the IP67 standard, operating temperatures range from –50°C to +60°C, and it has lightning protection rated at TVS 4000 V.

Functionality

• Motion, face, and person detection, line crossing, area entry and exit, loitering, and vehicle detection, as well as people counting.

• IR illumination with a range of 90 meters.

• WDR 120 dB — mitigates the effects of varying light levels on image quality.

• 3D DNR — spatial noise reduction.

• Defog — software removal of blurriness caused by fog or smoke.

• BLC — backlight compensation.

• HLC — masking of local light sources.

• Day/night mode with ICR: the filter blocks IR rays in sufficient light to optimize color rendering and mechanically moves away from the sensor in the dark to enhance its sensitivity.

• H.265+, H.265, H.264 compression.

• Streaming rate — 25 fps with WDR off, 25 fps with WDR on. Bitrate — 8 Mbps.

• Built-in microphone.

• Cold start.

Basics:

The TR-D2354WDZIR9 5–50 is based on a 1/2.7" CMOS sensor with a sensitivity of 0.002 lux. It is equipped with a motorized lens with a focal length of 5 ~ 50 mm, a horizontal field of view of 40° ~ 5°, a vertical field of view of 30° ~ 5°, and an aperture of F/1.6. The camera features an RJ-45 network port, an audio input, an audio output, an alarm input, an alarm output, and a microSD slot supporting up to 256 GB. It is powered by DC 12 V or PoE, with a maximum power consumption of 9.0 W. The dimensions are 234.33 x 77.5 x 73.4 mm, and it weighs 640 g.
