TR-D5123IR3 2.7-11
Technical specifications
PoE:
69Audio:
Built-in microphoneWDR:
RWDR 120 dBFrame rate:
25Bitrate (Mb/sec):
8Archive, Tb:
151Power supply:
12V DCOverview

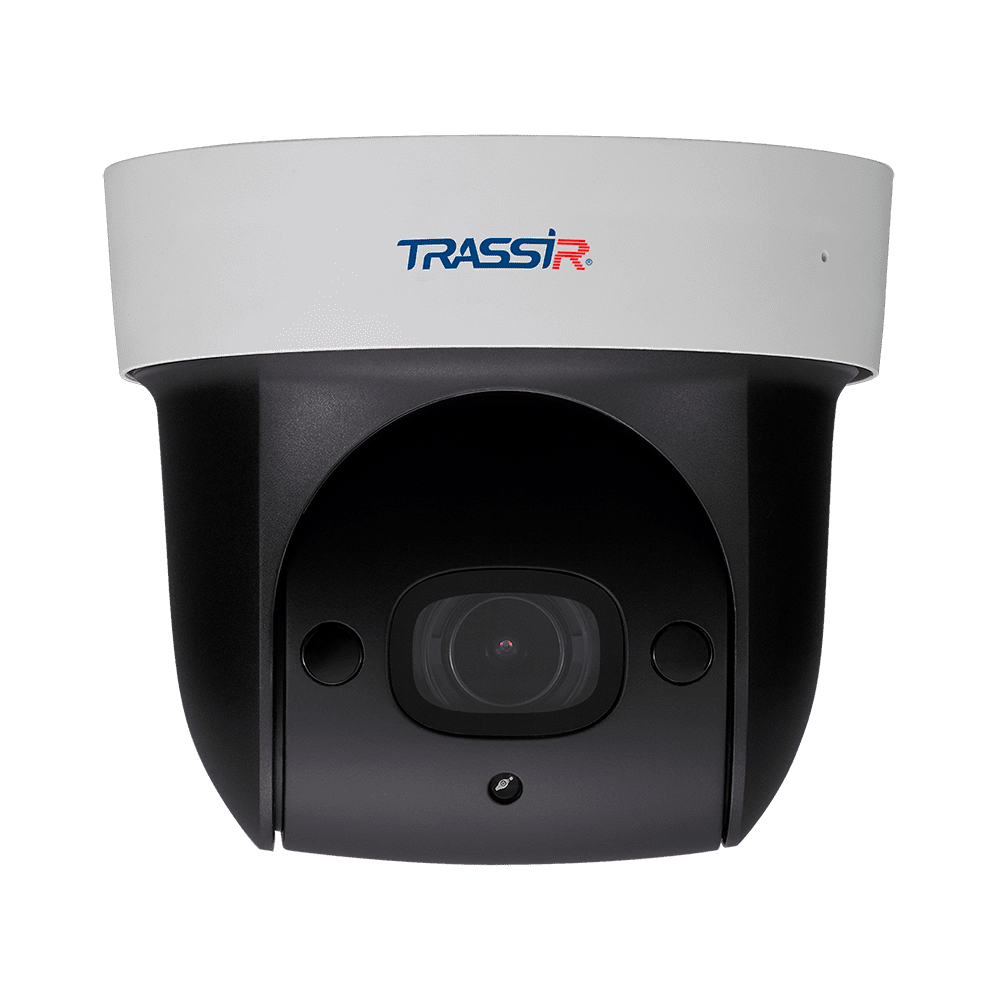

TRASSIR TR-D5123IR3
2 MP (1920 × 1080) PTZ IP-camera is designed for indoor use - thanks to the extended operating temperature range of -30 ° C ... +60 ° C, it works stably in winter in unheated rooms. Tilt range - 90 °, rotation - 360 °. Speed - up to 100 ° per second.
Functionality:
To improve the image provided: Ultra DNR - noise reduction in 2D and 3D; WDR 120 dB - double scanning with different exposure and subsequent merging of two frames into one balanced in terms of brightness; reducing the influence of changes in the level of illumination on the quality of the picture; HLC - local exposure masking; Defog - elimination of blur caused by fog or smoke from the scene; ROI (area of interest) - high quality of the picture in the selected area with an accompanying decrease in resolution in the rest of the frame (bitrate optimization).
Basics:
TRASSIR TR-D5123IR3 is built on a 1 / 2.8 "sensor with 0.005 lux sensitivity. Equipped with a motorized lens with a focal length of 2.7 mm ~ 11.0 mm, aperture F / 1.6 ~ F / 4.4, automatic iris and autofocus. Optical zoom - × 4, digital zoom - × 16.
The camera supports day / night mode with a mechanical IR-cut filter to refract IR rays that distort color rendition (in the dark, the filter moves away from the matrix, increasing its sensitivity in the IR range). For compression, H.265 +, H.265, H.264 codecs are provided. Broadcast speed - 25 fps at 2 Mp, 25 fps at 1 Mp. The interfaces are represented by an RJ-45 network port, a built-in microphone, a slot for a microSD card with a capacity of up to 128 GB, and a power connector. Power supply - DC 12V or PoE. Power - 13 W. Dimensions - Ø133.0 × 116.5 mm, weight - 950 g.
2 MP (1920 × 1080) PTZ IP-camera is designed for indoor use - thanks to the extended operating temperature range of -30 ° C ... +60 ° C, it works stably in winter in unheated rooms. Tilt range - 90 °, rotation - 360 °. Speed - up to 100 ° per second.
Functionality:
To improve the image provided: Ultra DNR - noise reduction in 2D and 3D; WDR 120 dB - double scanning with different exposure and subsequent merging of two frames into one balanced in terms of brightness; reducing the influence of changes in the level of illumination on the quality of the picture; HLC - local exposure masking; Defog - elimination of blur caused by fog or smoke from the scene; ROI (area of interest) - high quality of the picture in the selected area with an accompanying decrease in resolution in the rest of the frame (bitrate optimization).
Basics:
TRASSIR TR-D5123IR3 is built on a 1 / 2.8 "sensor with 0.005 lux sensitivity. Equipped with a motorized lens with a focal length of 2.7 mm ~ 11.0 mm, aperture F / 1.6 ~ F / 4.4, automatic iris and autofocus. Optical zoom - × 4, digital zoom - × 16.
The camera supports day / night mode with a mechanical IR-cut filter to refract IR rays that distort color rendition (in the dark, the filter moves away from the matrix, increasing its sensitivity in the IR range). For compression, H.265 +, H.265, H.264 codecs are provided. Broadcast speed - 25 fps at 2 Mp, 25 fps at 1 Mp. The interfaces are represented by an RJ-45 network port, a built-in microphone, a slot for a microSD card with a capacity of up to 128 GB, and a power connector. Power supply - DC 12V or PoE. Power - 13 W. Dimensions - Ø133.0 × 116.5 mm, weight - 950 g.
Documentation
TR-D5123IR3_passport_en.pdf
