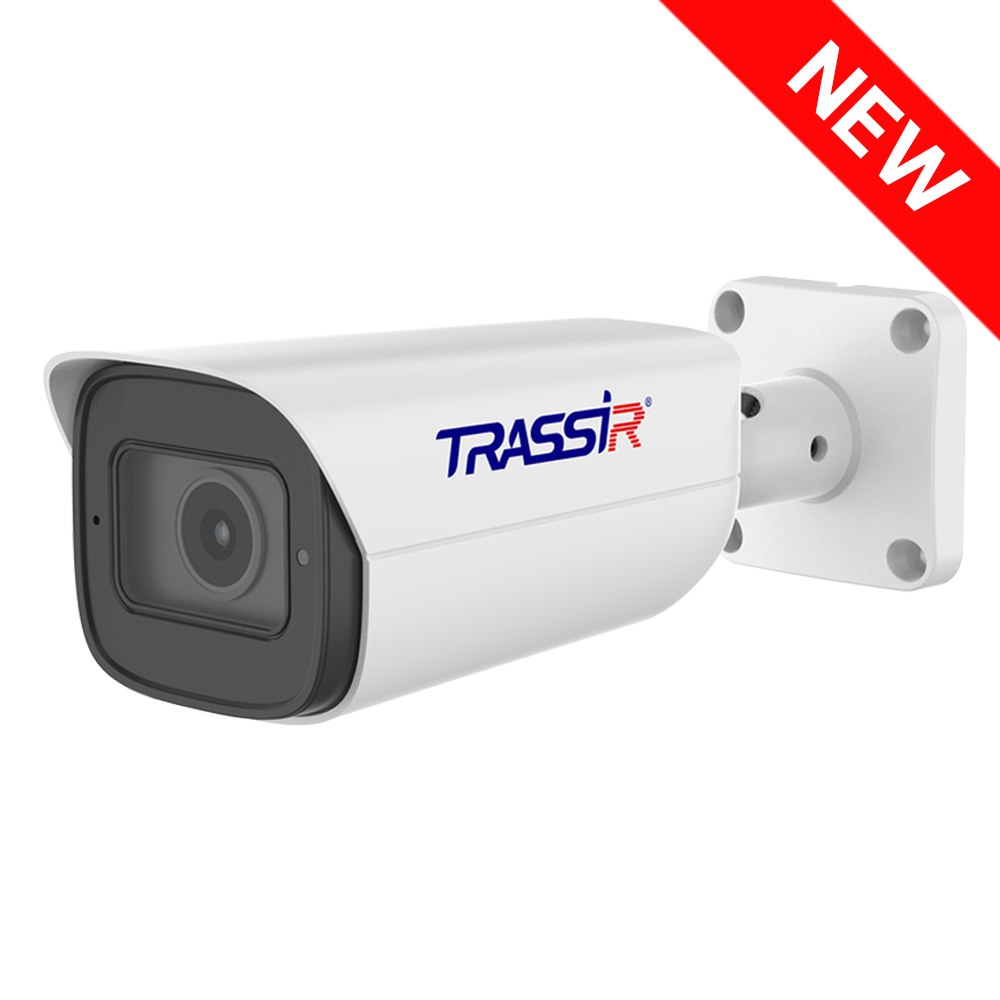

TR-D2353WDZIR7

Overview:

The IK08 impact-resistant 5 MP (2592x1920) IP camera TRASSIR TR-D2353WDZIR7 2.7–13.5 is designed for outdoor use in all weather conditions and at any time of day. The housing is protected against moisture and dust according to the IP67 standard, the operating temperatures range from -50°C to +60°C, and it has surge protection rated at TVS 4000V. The integrated IR illumination has a range of 70 meters, and it features a cold start capability.

Functionality:

Detection of motion, faces, people, line crossing, area entrance and exit, loitering, vehicles, and people counting.

WDR 120 dB — eliminates the impact of varying light levels on image quality.

3D DNR — suppression of spatial noise.

Defog — neutralizes blur caused by fog or smoke.

BLC — backlight compensation.

HLC — masking of local light sources.

Corridor mode — recording in vertically oriented resolution.

Day/Night mode with ICR: in sufficient light, the filter blocks IR rays to optimize color rendering, and in darkness, it mechanically moves away from the sensor to increase sensitivity.

Compression: H.265+, H.265, H.264.

Streaming speed: 25 fps with WDR off, 25 fps with WDR on.

Bitrate: 8 Mbps.

Basics:

The TR-D2353WDZIR7 2.7–13.5 is built on a 1/2.7-inch CMOS sensor with a sensitivity of 0.002 lux. It is equipped with a motorized lens with a focal length of 2.7 ~ 13.5 mm, a horizontal viewing angle of 101° ~ 31°, a vertical viewing angle of 53° ~ 18°, and an aperture of F/1.3. The camera features an RJ-45 network port, an integrated microphone, an audio input, an audio output, an alarm input, an alarm output, and a microSD slot supporting up to 256 GB. It is powered by 12V DC or PoE, with a maximum power consumption of 11.8W. The dimensions are 222.86 x 79.03 x 74.76 mm, and it weighs 640 g.
