TR-D2S1 v2 3.6

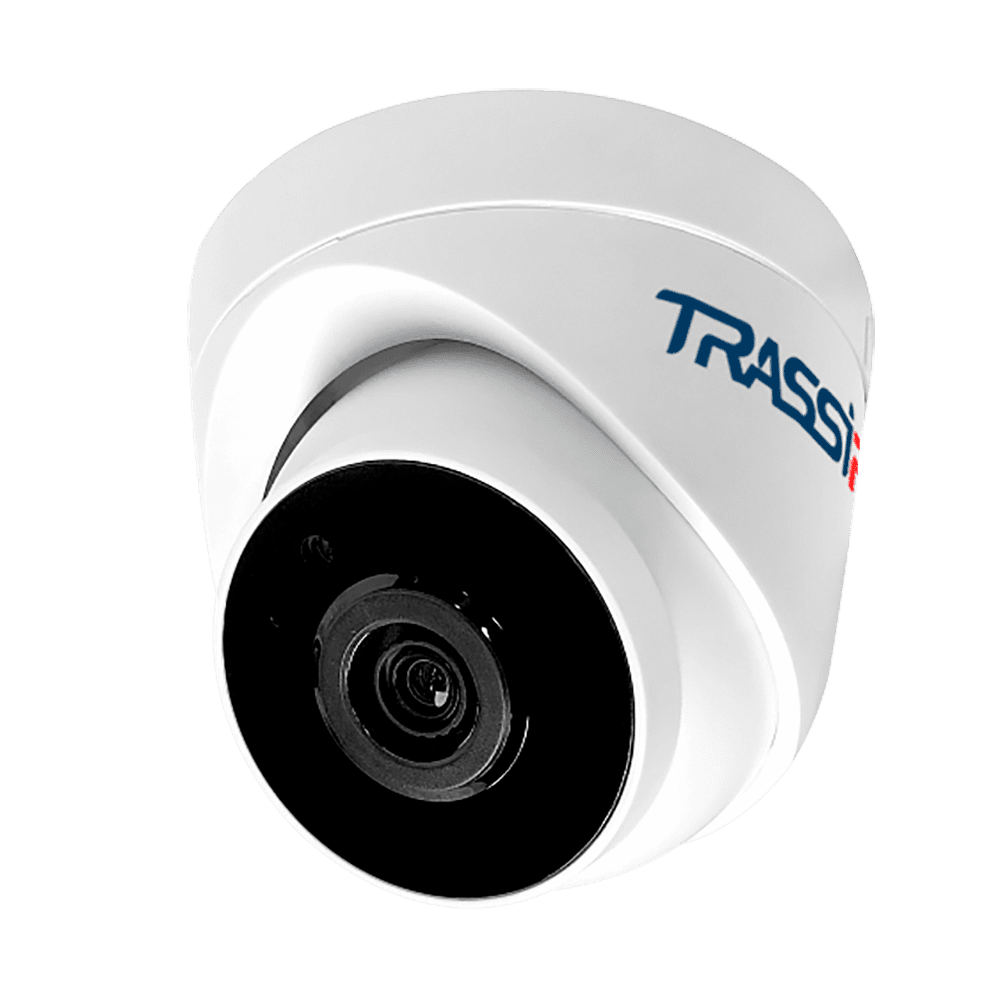

TRASSIR TR-D2S1 v2 (3.6 mm)

2 megapixel (1920 × 1080) IP-camera is equipped with IR illumination with a range of 20 m - for night video surveillance. Designed for indoor use.

Functionality:

• - Detection of people.
• - Motion detection.
• - Detection of crossing the virtual line.
• - Area control (detection of intrusion / exit from the zone).
• - WDR 105 dB - Reducing the influence of changes in the level of illumination on the image quality.
• - 3D DNR - spatial noise reduction.
• - Corridor Mode - Supports 9:16 vertical resolution.
• - Defog - enhances contrast to minimize the effect of fog and smoke.
• - BLC - Backlight Compensation.
• - The video stream speed is 25 frames per second.
• - Compression with H.265 + and H.264 +, H.265 and H.264 codecs.
• - Day / night mode with ICR: in sufficient light, the filter refracts IR rays, optimizing color rendition, and in the dark it is mechanically shifted away from the matrix to increase its sensitivity and backlight operation.
• - Bitrate - 8 Mbps.

Basics:

TR-D2S1 v2 (3.6 mm) is built on a 1 / 2.9 "CMOS sensor with progressive scanning, 0.005 lux sensitivity. Equipped with a 3.6 mm fixed focal length lens, horizontal viewing angle 81 °, vertical viewing angle - 44 °. Power supply - DC 12 V or PoE Maximum power consumption - 2.4 W. Size - Ø110.0 × 93.2 mm Weight - 205 g Operating temperatures from –10 ° C… +50 ° C.
