TR-D4D2 v2 2.7-13.5
PoE:
69WDR:
DWDR 105 dBCorridor mode:
YesBitrate (Mb/sec):
8Archive, Tb:
151Power supply:

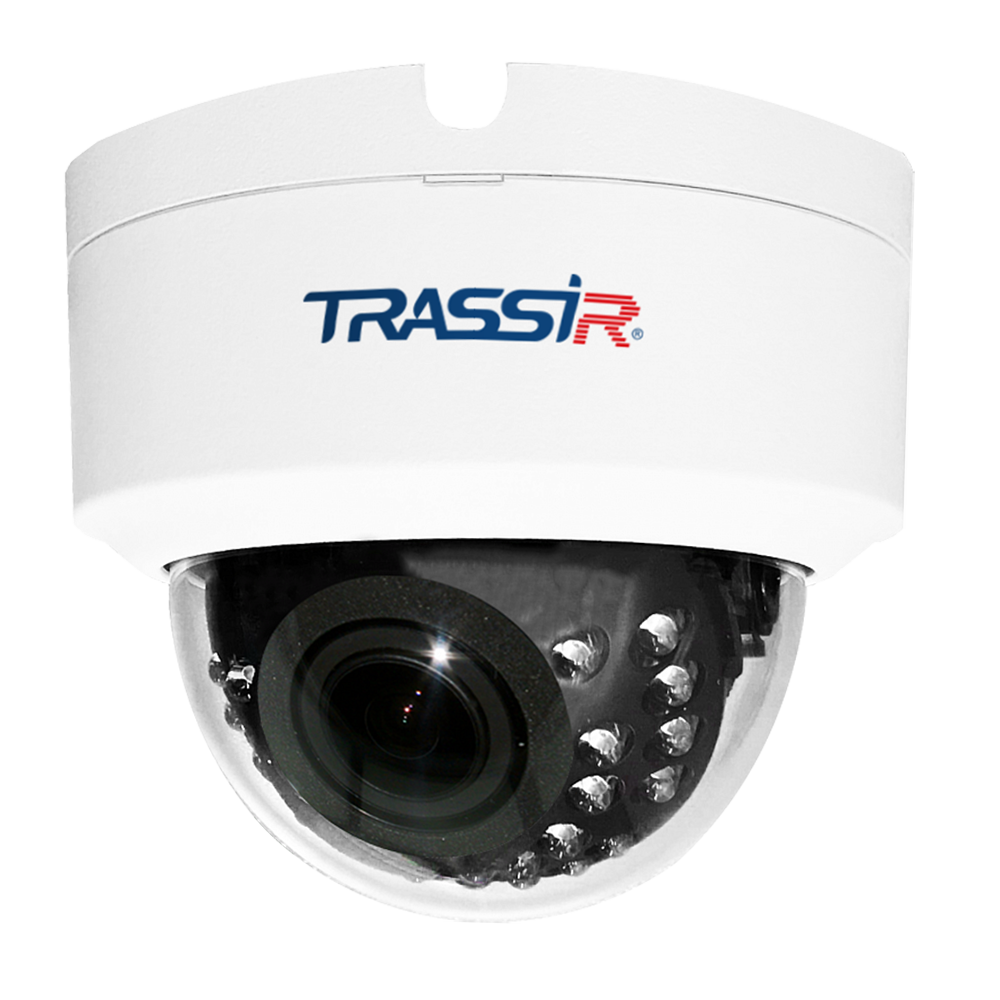

DC 12 V, PoETRASSIR TR-D4D2 v2 (2.7-13.5 mm)
The 4MP (2560 × 1440) IP camera is designed for indoor use. Suitable for night time video monitoring - equipped with IR illumination with a range of 25 m. With on board set of analytical functions - Detection of people, movement, crossing of virtual lines, intrusion into prohibited areas and exiting from the area.
Functionality:
- - WDR 105 dB - Eliminates the effect of fluctuations in illumination levels on picture quality.
- - 3D DNR - Noise Reduction.
- - Corridor mode (vertically oriented video).
- - Defog - contrast enhancement to neutralize the effect of fog and smoke.
- - BLC - Backlight Compensation.
- - Day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction; and in the dark it is mechanically shifted away from the sensor to increase its sensitivity.
- - Compression of H.265 +, H.265 and H.264.
- - Broadcast speed - 25 fps. Bitrate - 8 Mbps.
Basics:
TR-D4D2 v2 (2.7-13.5 mm) is built on a 1/3" CMOS sensor with progressive scanning, 0.003 lux sensitivity. Equipped with a zoom lens 2.7 ~ 13.5 mm, horizontal viewing angle 93° ~ 28°, vertical - 50 ° ~ 16°. Power supply - DC 12 V, PoE. Maximum power consumption - 4.6 W. Size - Ø112 × 98.1 mm. Weight - 250 g. Operating temperatures from –10 ° C ... +50 ° C. Case material - plastic.
TR-D4D2v2_passport_en.pdf
