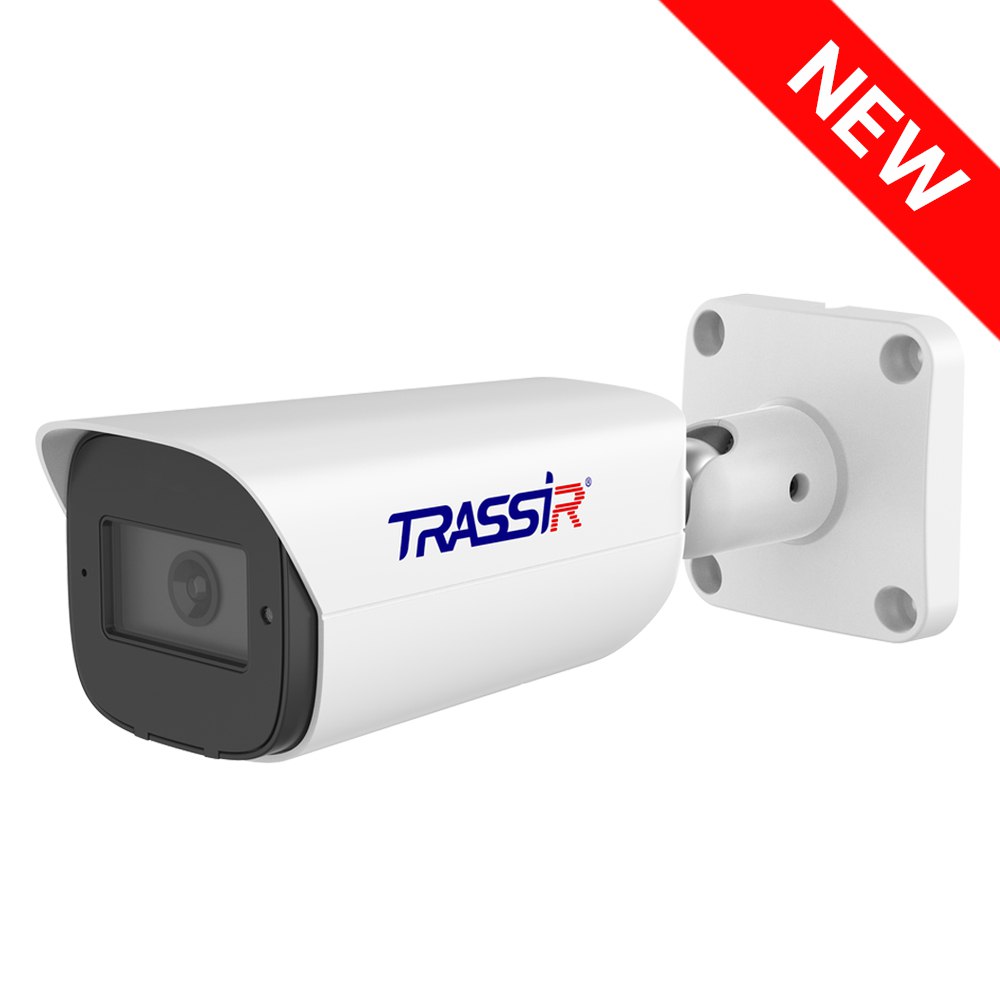

TR-D2351WDIR4

Overview:

The 5 MP (2592x1920) IP camera TRASSIR TR-D2351WDIR4 2.8/3.6 is adapted for year-round outdoor use: the housing is protected against moisture and dust according to the IP67 standard, the operating temperatures range from -50°C to +60°C, and it has surge protection rated at TVS 4000 V.

Functionality:

· Motion detection, face detection, human detection, line crossing detection, area entrance and exit detection, loitering detection, vehicle detection, people counting.

· IR illumination with a range of 40 meters.

· WDR 120 dB — eliminates the impact of varying light levels on image quality.

· 3D DNR — spatial noise reduction.

· Defog — software-based removal of blur caused by fog or smoke.

· BLC — backlight compensation.

· HLC — masking of local light sources.

· Day/night mode with ICR: in sufficient light, the filter blocks IR rays to optimize color rendering, and in darkness, it mechanically moves away from the sensor to increase sensitivity.

· Compression formats: H.265+, H.265, H.264.

· Streaming speed — 25 fps with WDR off, 25 fps with WDR on. Bitrate — 8 Mbps.

· Built-in microphone.

· Cold start.

Basics:

The TR-D2351WDIR4 2.8/3.6 is based on a 1/2.7" CMOS sensor with a sensitivity of 0.003 lux. It is equipped with a fixed focal length lens of 2.8mm, providing a horizontal viewing angle of 99˚ and a vertical viewing angle of 72˚, and a 3.6mm lens with a horizontal viewing angle of 79˚ and a vertical viewing angle of 60˚, with an aperture of F/1.3. The camera features an RJ-45 network port, audio input, audio output, alarm input, alarm output, and a microSD slot supporting up to 256 GB. It is powered by 12V DC or PoE, with a maximum power consumption of 6.1W. The dimensions are 197.1 x 66.1 x 62.7 mm, and it weighs 400 g.
