Technical specifications

Line:

TRASSIR pro

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/50,000 s

IR range:

up to 60 m

Digital noise Reduction:

3D DNR

IVS:

Yes

Corridor mode:

Yes

Maximum video output resolution:

2560x1920

Image sensor:

1/2.8 CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Overview

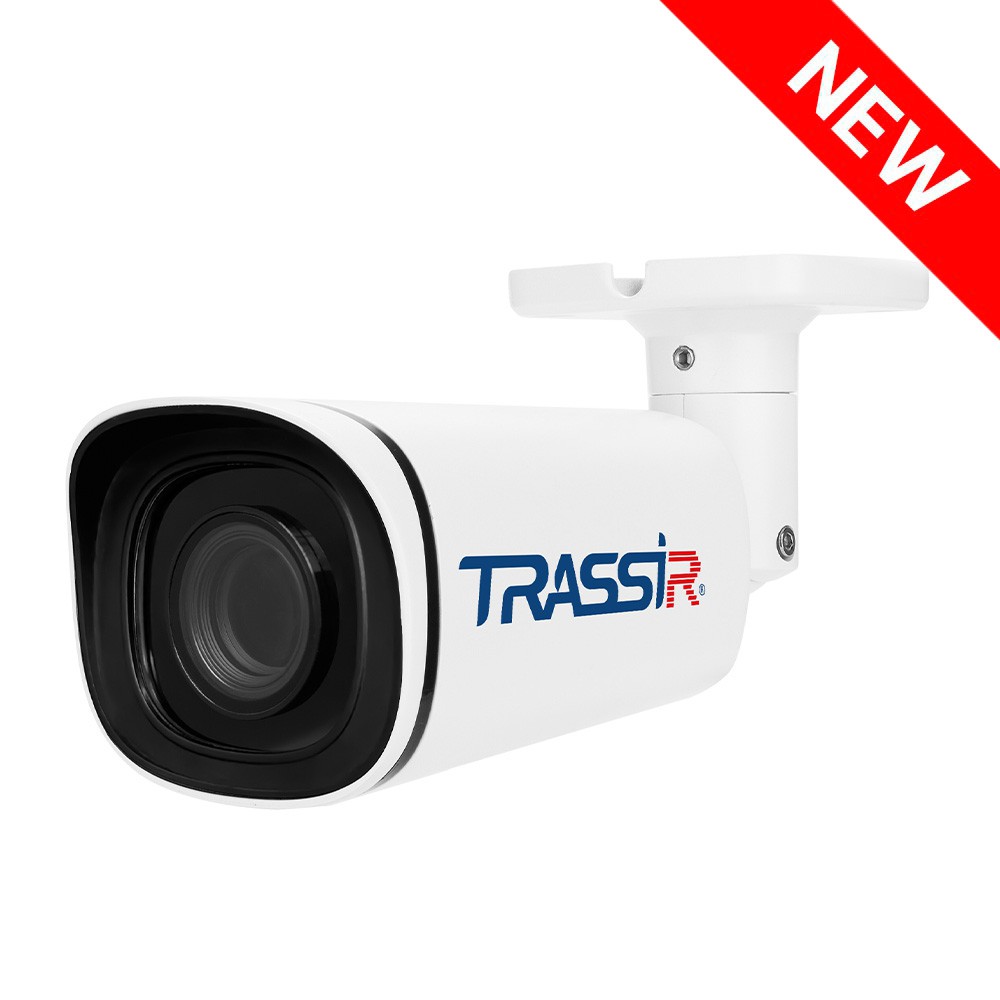

TRASSIR TR-D2153ZIR6 v7 (2.7–13.5 mm)

The shockproof (IK08) 5 MP IP camera TRASSIR TR-D2153ZIR6 v7 2.7–13.5 is housed in a metal casing and protected against moisture and dust according to the IP67 standard. Combined with an operating temperature range of –40 °C to +60 °C and 4000 V TVS lightning protection, it ensures reliable outdoor operation all year round.

Parameters:

Blackface IR illumination technology
Detection of people, vehicles, line crossing, area entry, and exit
WDR 120 dB for improved image quality in high-contrast lighting
3D DNR for spatial noise reduction
Corridor mode for vertically oriented video
1/2.8" CMOS sensor with 0.003 lx sensitivity
Motorized varifocal lens (2.7–13.5 mm), horizontal viewing angle: 93°–29°, vertical viewing angle: 69°–22°, aperture: F/1.6
Video compression: H.265+, H.265, H.264
IR illumination for night surveillance up to 60 meters
Local storage: SD card slot supporting up to 256 GB
Two-way audio: built-in microphone, audio input, and output
Power supply: DC 12 V or PoE
Maximum power consumption: 12.5 W
Dimensions: 234.3 × 77.5 × 75.3 mm
Weight: 635 g
