TR-D2B5-noPOE v2 3.6
PoE:
69WDR:
RWDR 105 dBBitrate (Mb/sec):
8Archive, Tb:
151Power supply:
12V DC

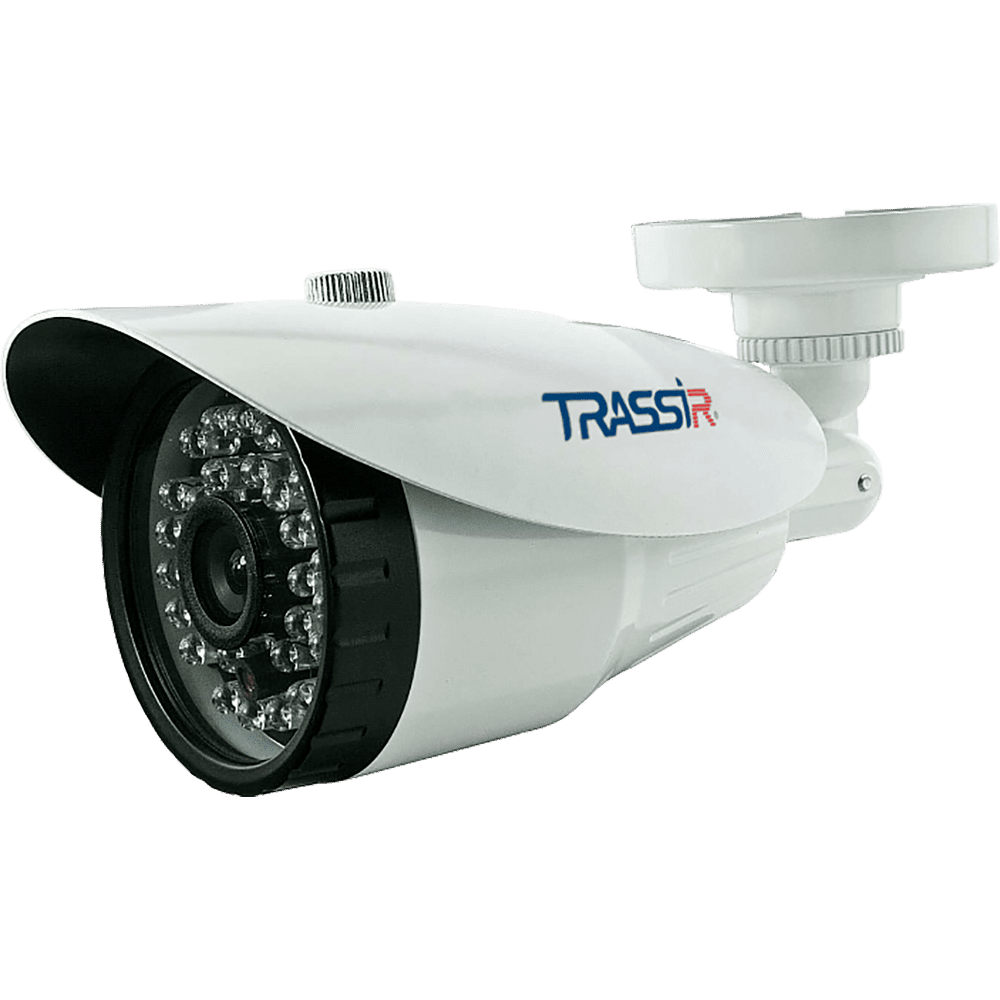

TRASSIR TR-D2B5-noPOE v2 (3.6 mm)
2 MP (1920 × 1080) IP-camera is adapted for outdoor use any time of the year or day - under the direct influence of precipitation: protection of the case against dust and moisture corresponds to IP67, operating temperatures from –40 ° C ... +60 ° C, lightning protection - TVS 4000 V, integrated IR illumination range - 30 m.
Functionality:
- - WDR 105 dB - the selection of the optimal exposure for light conditions to minimize the disadvantages caused by different contrast lighting.
- - 3D DNR - spatial noise reduction.
- - Day / night mode with ICR: in sufficient light, the filter cuts off IR rays, normalizing color rendition; in the dark it is mechanically shifted away from the matrix to increase its sensitivity and backlight operation.
- - Broadcast speed - 25 frames per second.
- - Compression of H.265 + and H.264 +, H.265 and H.264.
- - Corridor mode - shooting in vertically oriented resolution.
- - Defog - enhances the contrast to eliminate the effect of fog or smoke in the scene.
- - BLC - Back Light Compensation.
- - Video analytics: motion and people detection, virtual line crossing detection, zone intrusion.
Basics:
TR-D2B5-noPOE v2 (3.6 mm) is equipped with a 3.6 mm fixed focal length lens, 81 ° horizontal field of view, 44 ° vertical field, F / 1.8 aperture. Supplied in a metal case with a swivel arm for easy adjustment of the monitoring direction. Power supply - DC 12 V. Maximum power consumption - 3.3 W. Dimensions - 207.6 × 76.5 × 86.0 mm. Weight - 330 g.
