TR-D2223WDIR7 v2 2.7-13.5
Technical specifications
PoE:
69Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
RWDR 120 dBFrame rate:
30Electronic shutter speed:
1/2 ~ 1/1 000 sDigital noise Reduction:
3D DNRCorridor mode:
YesBitrate (Mb/sec):
8Archive, Tb:
151Power supply:
12V DCOverview

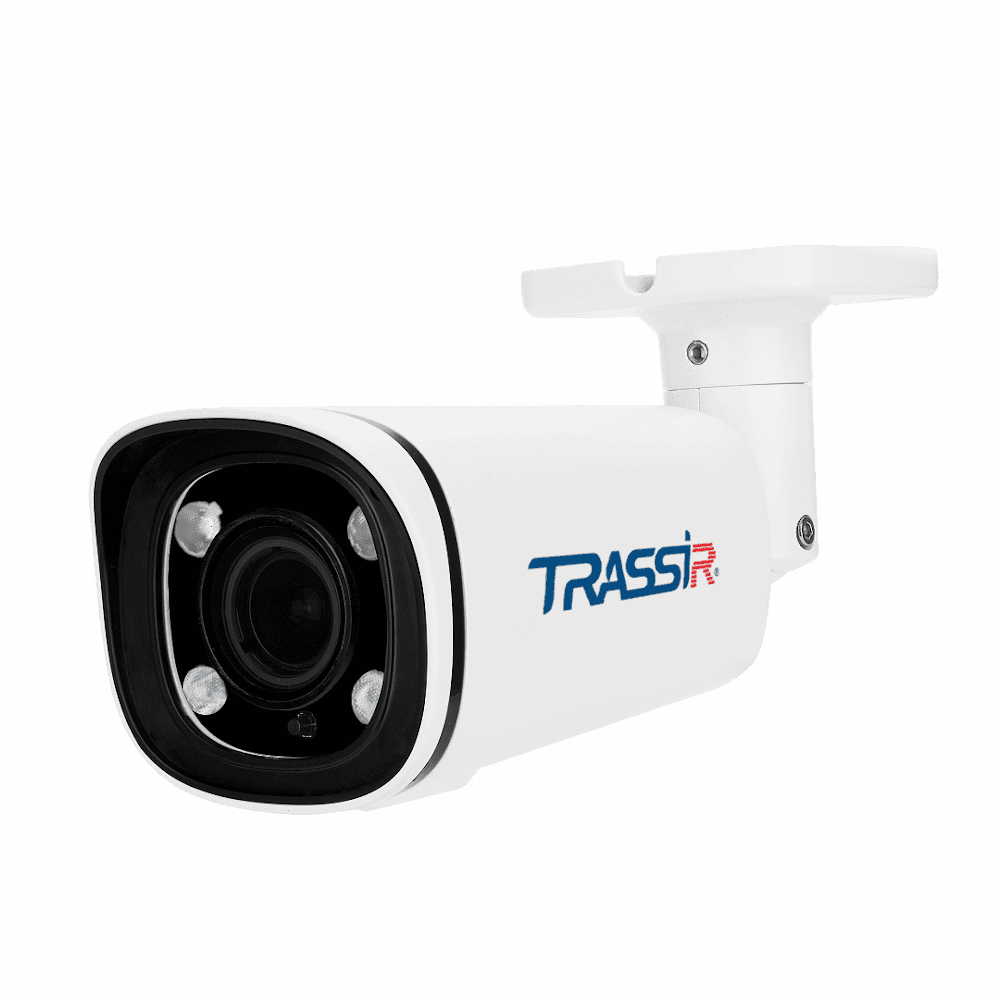

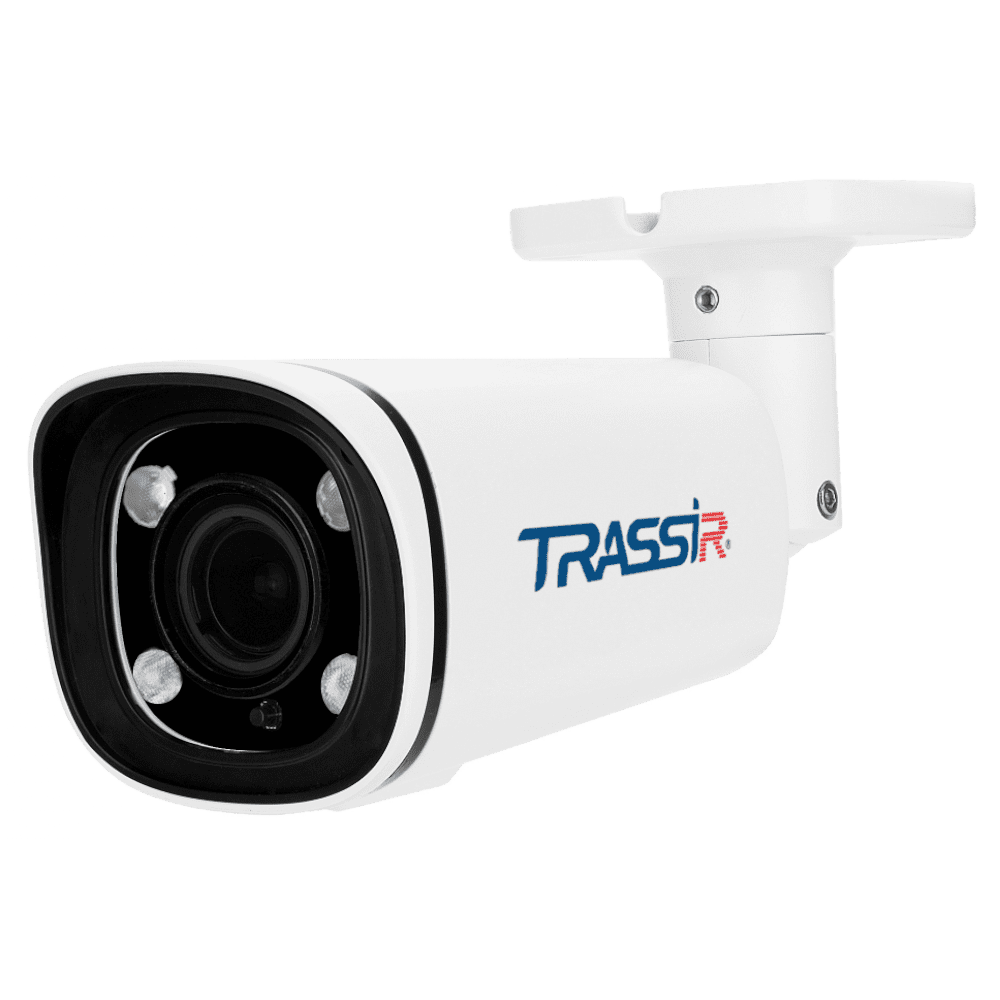

Shock-resistant (IK08) 2 MP (1920×1080) TRASSIR TR-D2223WDIR7 v2 2.7–13.5 IP camera is designed for year-round outdoor use: protection of the metal case against moisture and dust complies with IP67, operating temperatures from -40 °C ... +60 °C , lightning protection - TVS 4000 V.
Functionality
Basics
TR-D2223WDIR7 v2 2.7–13.5 is built on a 1/2.8-inch CMOS sensor with 0.003 lux sensitivity. Supports day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor to increase its sensitivity. Bitrate - 8 Mbps. Equipped with 2.7 ~ 13.5mm zoom lens, 101° ~ 30° horizontal, 55° ~ 18° vertical, F/1.3 aperture, RJ-45 network port, integrated microphone, microSD slot up to 128GB , audio in, audio out, alarm in, alarm out. Power supply - DC 12 V, PoE. The maximum power consumption is 7.8 W. Size - 234.33 × 77.50 × 75.31 mm. Weight - 635 g.
Functionality
- Detect motion, people, line crossing, zone intrusion, loitering, traffic, people counting.
- WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
- 3D DNR - spatial noise reduction.
- Corridor mode - shooting in vertically oriented resolution.
- Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
- BLC - backlight compensation.
- IR illumination with a range of 70 m.
- Compression H.265+, H.265, H.264.
- The broadcast speed and resolution of the main stream is 25 fps 1920×1080, 1280×960, 1280×720, the secondary stream is 25 fps 704×576, 640×480, 640×360, 352×288.
Basics
TR-D2223WDIR7 v2 2.7–13.5 is built on a 1/2.8-inch CMOS sensor with 0.003 lux sensitivity. Supports day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor to increase its sensitivity. Bitrate - 8 Mbps. Equipped with 2.7 ~ 13.5mm zoom lens, 101° ~ 30° horizontal, 55° ~ 18° vertical, F/1.3 aperture, RJ-45 network port, integrated microphone, microSD slot up to 128GB , audio in, audio out, alarm in, alarm out. Power supply - DC 12 V, PoE. The maximum power consumption is 7.8 W. Size - 234.33 × 77.50 × 75.31 mm. Weight - 635 g.
Documentation
TR-D2223WDIR7v2_passport_en.pdf
