TR-D3121IR2 v6 (B) 3.6

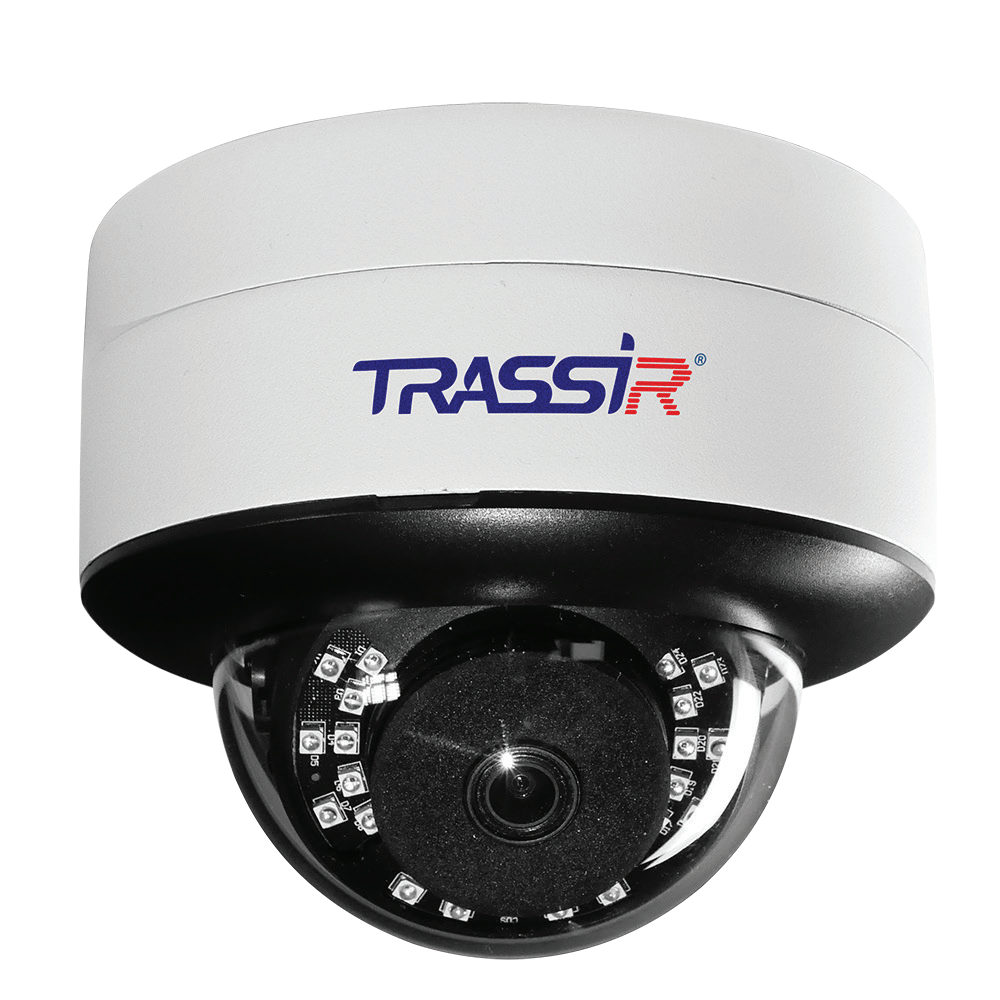

2 MP (1920×1080) IP Camera TRASSIR TR-D3121IR2 v6 (B) 3.6 is designed for outdoor use in areas with direct access throughout the year and in any weather conditions. It comes in a metal housing, protected against moisture and dust to the IP66 standard, and against mechanical impacts to IK10. It operates stably in a temperature range of –40 °C to +60 °C, with TVS 4000 V lightning protection and an integrated IR illumination range of 25 m.

Functionality

· Software Detection: motion detection, people detection, virtual line crossing, zone intrusion, area exit.

· Built-in Microphone.

· WDR 120 dB: eliminates the impact of varying lighting contrasts on image quality.

· 3D DNR: spatial noise reduction.

· Corridor Mode: vertical resolution shooting to reduce blind spots at the top and bottom.

· Defog: increases contrast to eliminate blurriness caused by fog or smoke.

· BLC: digital backlight correction.

· Day/Night Mode with ICR: switches to infrared sensitivity in the dark by moving the IR filter away when illumination is sufficient.

· Compression Formats: H.264, H.265, H.264+, H.265+.

· Streaming Speed: 25 fps, bitrate — 8 Mbps.

Basics:

The TR-D3121IR2 v6 (B) 3.6 is built on a CMOS sensor with a sensitivity of 0.005 lux. It comes equipped with a fixed focal length lens of 3.6 mm, providing a horizontal viewing angle of 82° and a vertical viewing angle of 44°, with an aperture of F/1.8. The camera includes an RJ-45 network port, a slot for a microSD card with a capacity of up to 128 MB, and a power connector. It can be powered by either a 12V DC source or via PoE (Power over Ethernet). The power consumption is 3.9 watts. The camera's dimensions are Ø116.10×96.51 mm, Weight: 450 grams.
