TR-D8221WDCL3 4.0
Technical specifications
PoE:
69Audio:
Built-in microphoneAudio-out
WDR:
RWDR 120 dBFrame rate:
25Corridor mode:
YesBitrate (Mb/sec):
8Archive, Tb:
151Power supply:
12V DCOverview

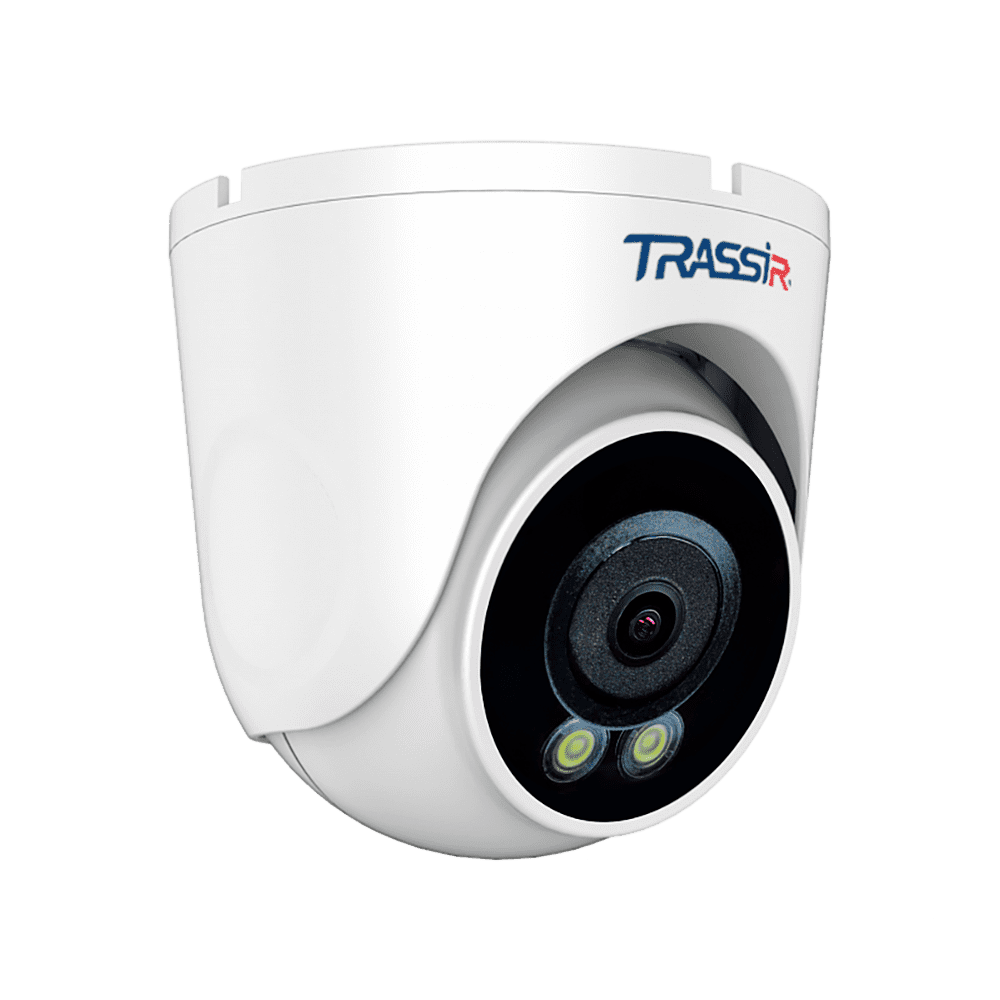

TRASSIR TR-D8221WDCL3 (4 mm)
2MP (1920 × 1080) IP-camera is supplied in a housing protected from moisture and dust according to IP66 standard, which, together with an operating temperature range of –40 ° C ... +60 ° C and 4000 V lightning protection, ensures stable operation of the device outdoors, regardless of time of the year.
Functionality:
TR-D8221WDCL3 (4 mm) is equipped with a microSD slot with a capacity of up to 128 GB. By default, after inserting an SD card, the camera activates the archive recording function by a motion detector signal. The recorded archive can be viewed through the TRASSIR-Client application - provided that the camera is connected to TRASSIR Cloud. For the SD card to work correctly, it must be formatted first.
The focal length of the lens is 4 mm, the horizontal angle of view is 80 °, and the vertical angle is 43 °. Interfaces: RJ-45 network port, audio output, alarm input, alarm output, power connector. Power supply - DC 12 V, PoE. Maximum power consumption - 4.8W max. Dimensions - Ø93.0 × 92.2 mm, weight - 400 g.
2MP (1920 × 1080) IP-camera is supplied in a housing protected from moisture and dust according to IP66 standard, which, together with an operating temperature range of –40 ° C ... +60 ° C and 4000 V lightning protection, ensures stable operation of the device outdoors, regardless of time of the year.
Functionality:
- - Detection of people, crossing a virtual line, entering an area, exiting an area, crossing an area.
- - Software detection of movement, loitering.
- - Counting visitors.
- - Built-in microphone.
- - Corridor mode (vertically oriented video).
- - WDR 120 dB - double scanning at different exposures with further convergence of frames into one balanced one.
- - 3D DNR - Noise Reduction.
- - BLC - Backlight Compensation.
- - Defog - enhances contrast, neutralizing imperfections caused by fog or smoke in the scene.
- - H.264, H.265 and H.265 + for compression.
- - Broadcast speed - 25 fps. Bitrate - 8 Mbps.
TR-D8221WDCL3 (4 mm) is equipped with a microSD slot with a capacity of up to 128 GB. By default, after inserting an SD card, the camera activates the archive recording function by a motion detector signal. The recorded archive can be viewed through the TRASSIR-Client application - provided that the camera is connected to TRASSIR Cloud. For the SD card to work correctly, it must be formatted first.
The focal length of the lens is 4 mm, the horizontal angle of view is 80 °, and the vertical angle is 43 °. Interfaces: RJ-45 network port, audio output, alarm input, alarm output, power connector. Power supply - DC 12 V, PoE. Maximum power consumption - 4.8W max. Dimensions - Ø93.0 × 92.2 mm, weight - 400 g.
Documentation
TR-D8221WDCL3_passport_en (1).pdf
