TR-D2251WDIR4 v2 3.6
Technical specifications
PoE:
69Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
RWDR 120 dBFrame rate:
25Electronic shutter speed:
1/2 ~ 1/1 000 sDigital noise Reduction:
3D DNRCorridor mode:
YesBitrate (Mb/sec):
8Archive, Tb:
151Power supply:
12V DCOverview

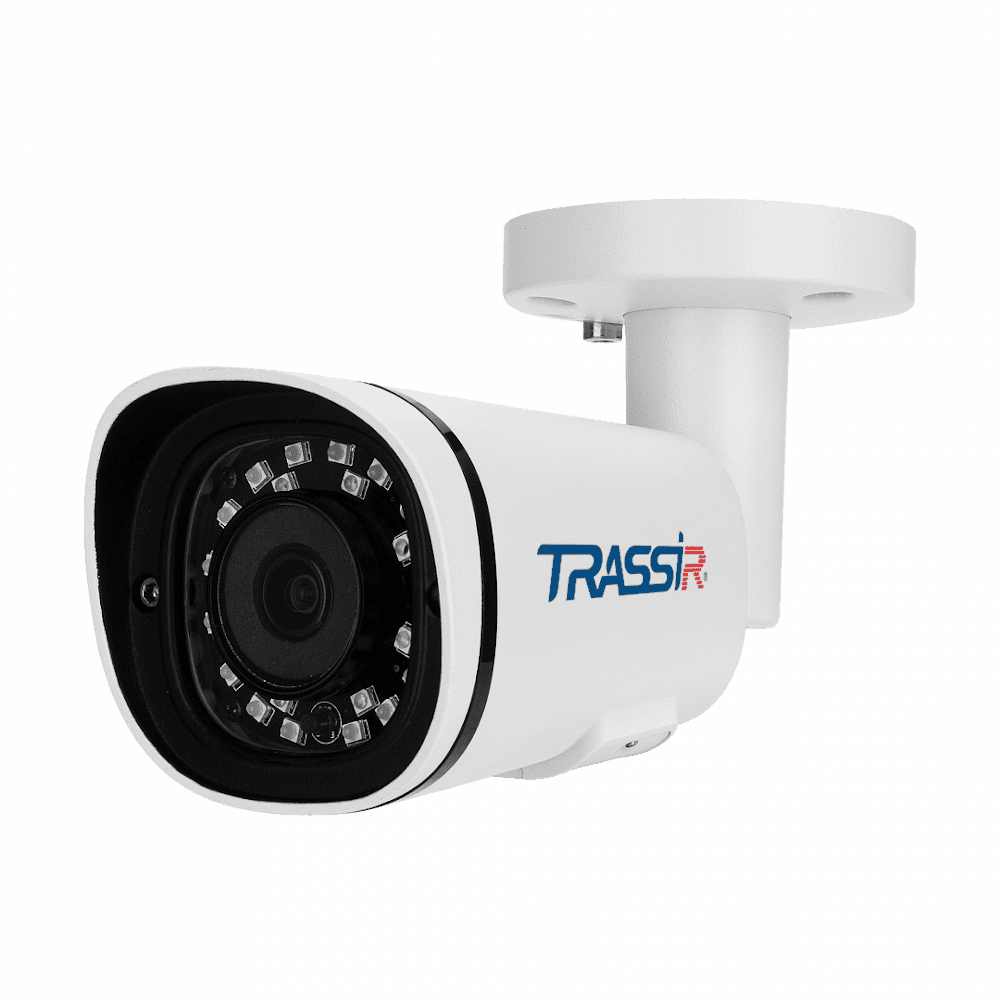

5 MP (2592×1920) TRASSIR TR-D2251WDIR4 v2 3.6 IP camera is designed for year-round outdoor operation: the metal case is protected from moisture and dust according to the IP67 standard, operating temperatures from -40 °C ... +60 °C, lightning protection - TVS 4000 v.
Functionality
Basics
TR-D2251WDIR4 v2 3.6 is built on a highly sensitive (0.003 lx) 1/2.8-inch Sony Starvis sensor, which forms color video even in low light: the camera does not switch to black and white shooting longer. Equipped with 1.9mm fixed lens, 104° horizontal, 75° vertical, F/1.8 aperture, RJ-45 network port, audio-in, audio-out and integrated microphone, alarm-in and alarm-out, microSD slot up to 128 MB. Supports day / night mode with ICR: when there is enough light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor so that its sensitivity is increased and the backlight can work. Streams at 25 frames per second. Bitrate - 8 Mbps. Power Supply – 12V DC or PoE. The maximum power consumption is 6.5 W. Size - 184.67 × 66.50 × 63.05 mm. Weight - 460 g.
Functionality
- Motion detection, faces (optional), cars.
- People counting.
- Detection of virtual line crossing, area intrusion, area exit, loitering.
- WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
- 3D DNR - spatial noise reduction.
- Corridor mode - hardware support for vertical resolution.
- Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
- BLC - backlight compensation.
- IR illumination with a range of 40 m.
- Compression H.265+, H.265, H.264+, H.264.
Basics
TR-D2251WDIR4 v2 3.6 is built on a highly sensitive (0.003 lx) 1/2.8-inch Sony Starvis sensor, which forms color video even in low light: the camera does not switch to black and white shooting longer. Equipped with 1.9mm fixed lens, 104° horizontal, 75° vertical, F/1.8 aperture, RJ-45 network port, audio-in, audio-out and integrated microphone, alarm-in and alarm-out, microSD slot up to 128 MB. Supports day / night mode with ICR: when there is enough light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor so that its sensitivity is increased and the backlight can work. Streams at 25 frames per second. Bitrate - 8 Mbps. Power Supply – 12V DC or PoE. The maximum power consumption is 6.5 W. Size - 184.67 × 66.50 × 63.05 mm. Weight - 460 g.
Documentation
TR-D2251WDIR4v2_passport_en.pdf
