TR-D2153IR6 v2 2.7-13.5

Book A Demo How To Buy

Technical specifications

PoE:

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

RWDR 120 dB

Frame rate:

Electronic shutter speed:

1/2 ~ 1/1 000 s

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Bitrate (Mb/sec):

Archive, Tb:

151

Power supply:

12V DC

Overview

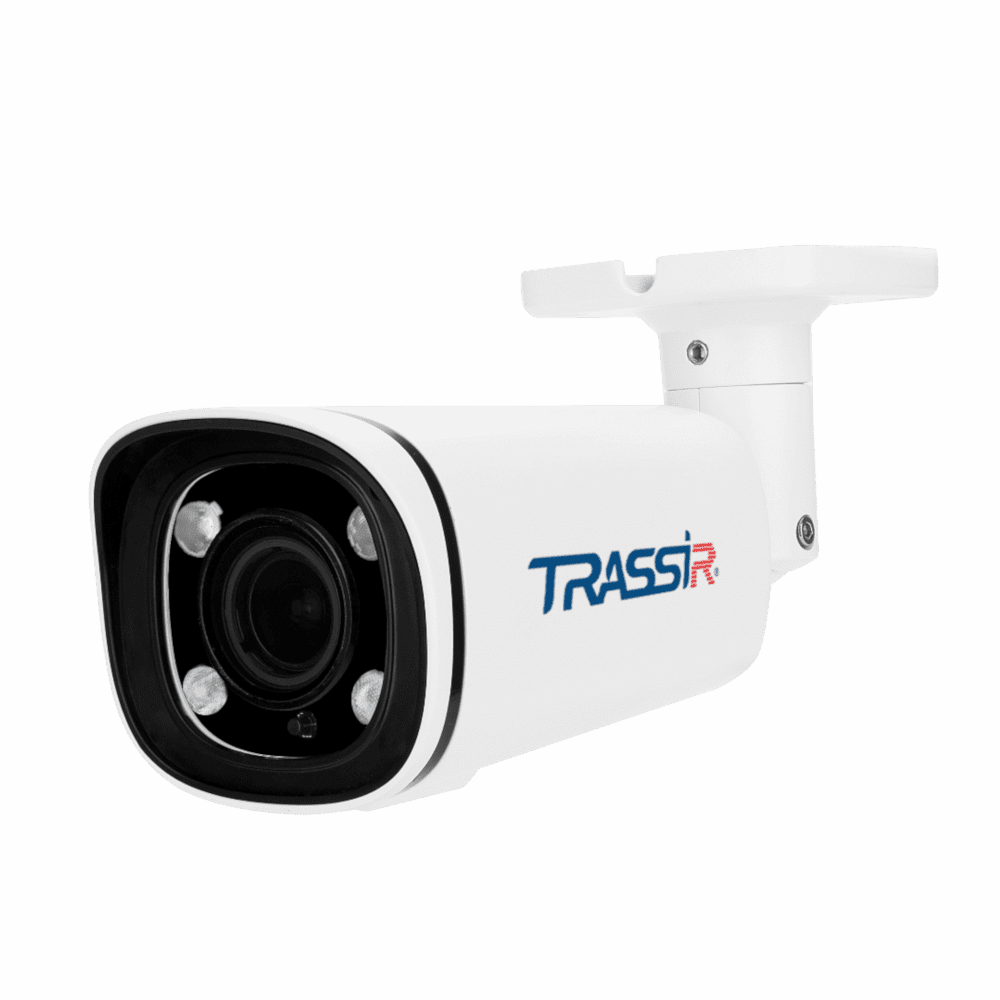

Shock-resistant (IK08) 5 MP (2560×1920) TRASSIR TR-D2153IR6 v2 2.7–13.5 IP camera is designed for year-round outdoor use: protection against moisture and dust - IP67, operating temperatures from -40 °C ... +60 ° C, lightning protection - TVS 4000 V.

Functionality

Built-in microphone.
Detection of movement, people, crossing of virtual lines, intrusion into prohibited areas and exiting from the area.
WDR 120 dB - elimination of the influence of different contrast lighting on the picture quality.
3D DNR - spatial noise reduction.
Corridor mode - shooting in vertically oriented resolution.
Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
BLC - backlight compensation.
IR illumination with a range of 60 m.
Day/night mode with a mechanical filter that blocks IR rays when there is enough light.
Compression H.265+, H.265, H.264.
Bitrate - 8 Mbps, frame rate - 25 fps.

Basics

TR-D2153IR6 v2 2.7–13.5 is built on a 1/2.8-inch CMOS sensor with 0.002 lux sensitivity. Equipped with a zoom lens 2.7 ~ 13.5 mm (horizontal angle - 93 ° ~ 29 °, vertical - 69 ° ~ 22 °, aperture - F / 1.8), RJ-45 network port, microSD slot up to 128 GB , audio in, audio out, alarm in, alarm out. Power supply - DC 12 V, PoE. Power - 8.4 W. Size - 234.33 × 77.50 × 75.31 mm. Weight - 635 g.

Documentation

TR-D2153IR6v2_passport_en.pdf
