TR-D3122ZIR2 v6 (B) 2.8-8

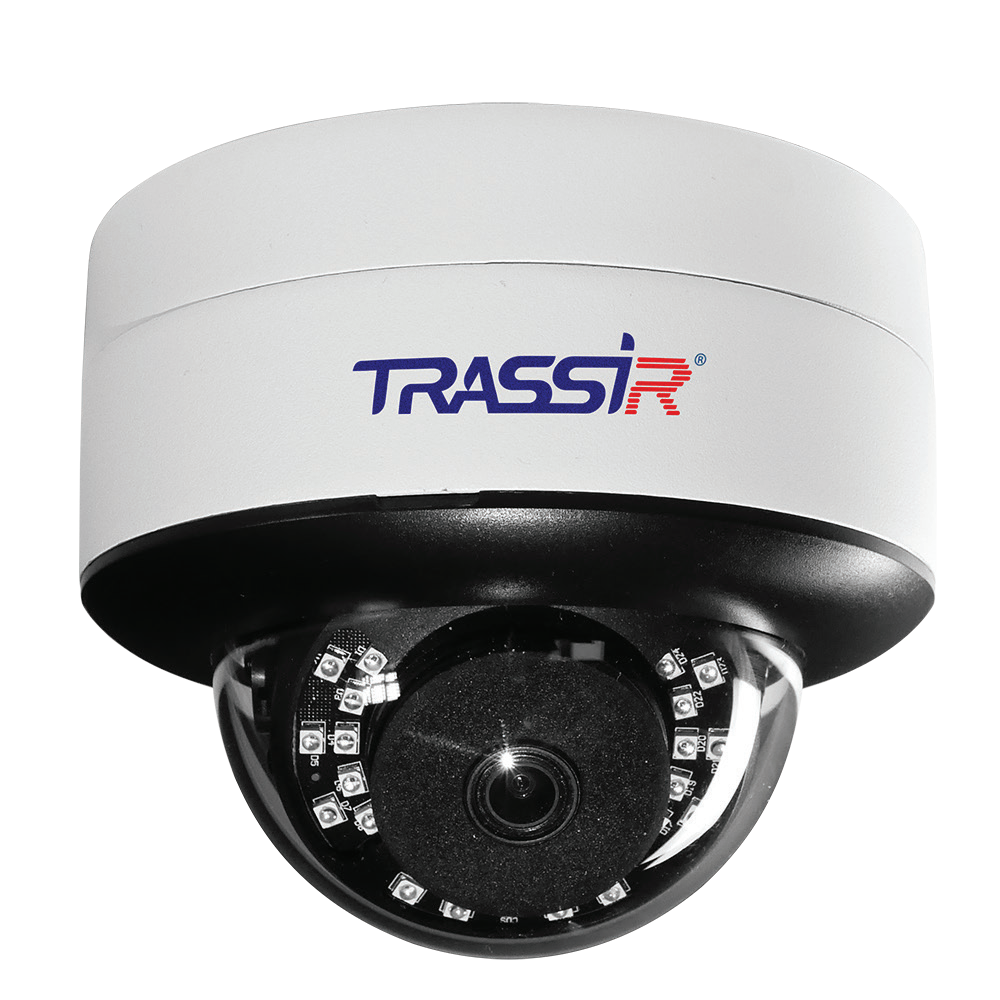

2 MP (1920×1080) IP Camera TRASSIR TR-D3122ZIR2 v6 (2.8–8.0 mm) is designed for year-round outdoor use in areas with direct access. The metal housing provides protection against mechanical impacts (IK10) and against moisture and dust (IP66). It operates reliably in a temperature range of –40 °C to +60 °C and has TVS 4000 V lightning protection.

This camera is based on a high-performance processor and an ultra-sensitive (0.003 lux) 1/2.7-inch CMOS sensor, allowing it to capture color images longer, transmit images with improved color accuracy and detail, and consume less power.

Functionality

· WDR 120 dB: minimizes the impact of varying lighting contrasts on image quality.

· 3D DNR: spatial noise reduction.

· Corridor Mode: supports vertical resolution shooting with a 9:16 aspect ratio.

· Defog: corrects deficiencies caused by fog or smoke.

· BLC: backlight compensation.

· HLC: local light masking.

· Streaming Speed: 25 fps.

· Day/Night Mode with ICR: switches to infrared sensitivity in the dark by moving the IR filter away when illumination is sufficient.

To enable timely response to events and automation, the camera includes analytical functions such as people and motion detection, virtual line crossing detection, area control (intrusion/exiting detection). For real-time image zooming, it features a motorized lens with a focal length of 2.8 ~ 8.0 mm, providing a horizontal viewing angle of 91° ~ 54° and a vertical viewing angle of 50° ~ 30°. Compression is handled by H.264, H.264+, H.265+, and H.265 codecs. It also includes a built-in microphone for audio control.

Basics

The camera features an RJ-45 network port, a slot for a microSD card with a capacity of up to 128 MB, and a power connector. It has multiple axes of rotation, allowing for adjustment of the viewing direction without reinstallation. The camera can be powered by a 12V DC source or via PoE (Power over Ethernet). The maximum power consumption is 5.8 watts. The dimensions are Ø116.1×96.51 mm. Weight 520 grams.
