TR-D3251WDIR3W v2 2.8

Book A Demo How To Buy

Technical specifications

PoE:

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

RWDR 120 dB

Frame rate:

Electronic shutter speed:

1/2 ~ 1/1 000 s

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Bitrate (Mb/sec):

Archive, Tb:

151

Power supply:

12V DC

Overview

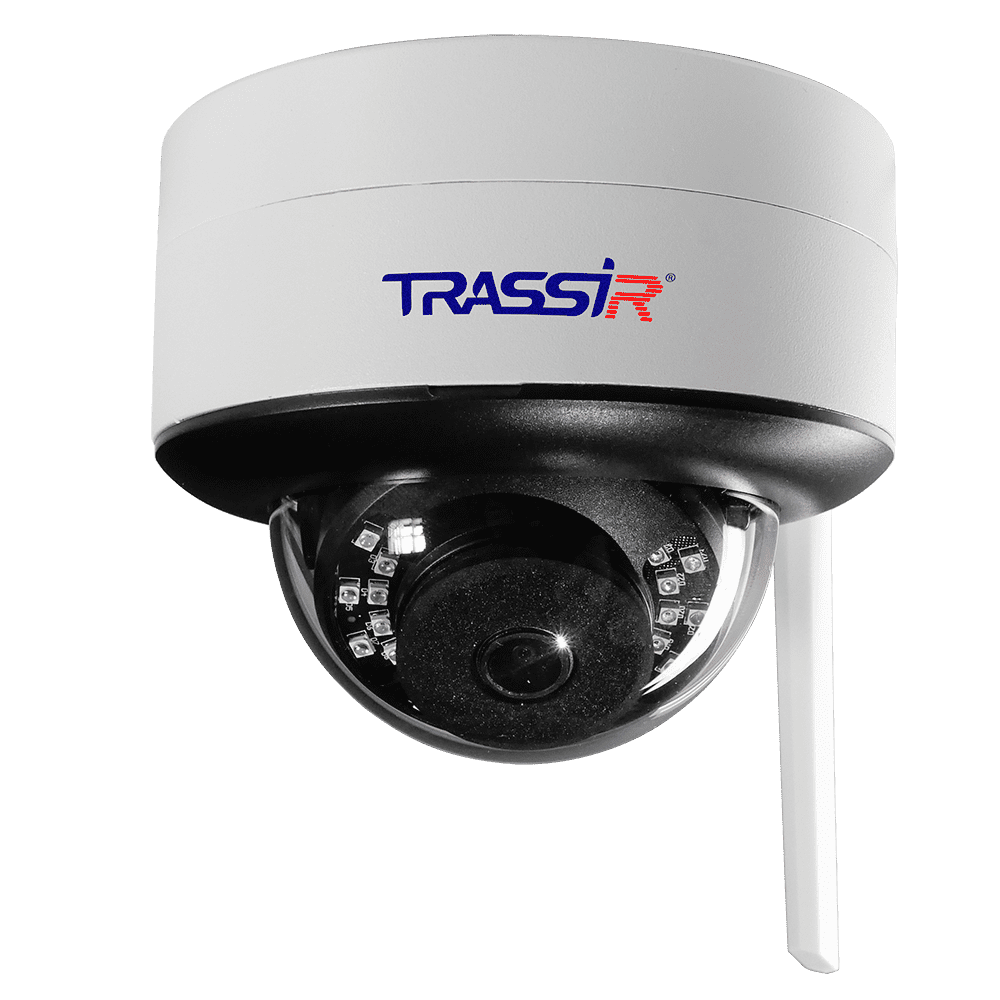

5 MP (2592×1920) IP-camera TRASSIR TR-D3251WDIR3W v2 2.8 is adapted for year-round outdoor operation in places of direct access: the case meets the standard of protection against moisture and dust IP66, against mechanical influences - IK10, operating temperatures from -40 °C... +60 °C, lightning protection - TVS 4000 V. Equipped with a Wi-Fi module for wireless data transmission and IR illumination (30 m range) for night video surveillance.

Functionality

Motion detection, faces (optional), cars, people counting.
Detection of virtual line crossing, area intrusion, area exit, loitering.
WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
3D DNR - spatial noise reduction.
Corridor mode - hardware support for vertical resolution.
Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
BLC - software correction of the overexposed background.
Compression H.265+, H.265, H.264+, H.264

Basics

TR-D3251WDIR3W v2 2.8 is equipped with a fixed lens (focal length - 2.8 mm, horizontal viewing angle - 91 °, vertical - 66 °, aperture - F / 1.8). Equipped with RJ-45 network port, audio input, audio output and integrated microphone, alarm input and alarm output, microSD slot up to 128 MB. Power Supply – 12V DC or PoE. Maximum power - 6.3 W. Size - Ø116.1×96.5 mm. Weight - 450 g.

Documentation

TR-D3251WDIR3Wv2_passport_en.pdf
