TR-D4B5 v2 2.8
Technical specifications
PoE:
69WDR:
DWDR 105 dBFrame rate:
25Corridor mode:
YesBitrate (Mb/sec):
8Archive, Tb:
151Power supply:
DC 12 V, PoEOverview

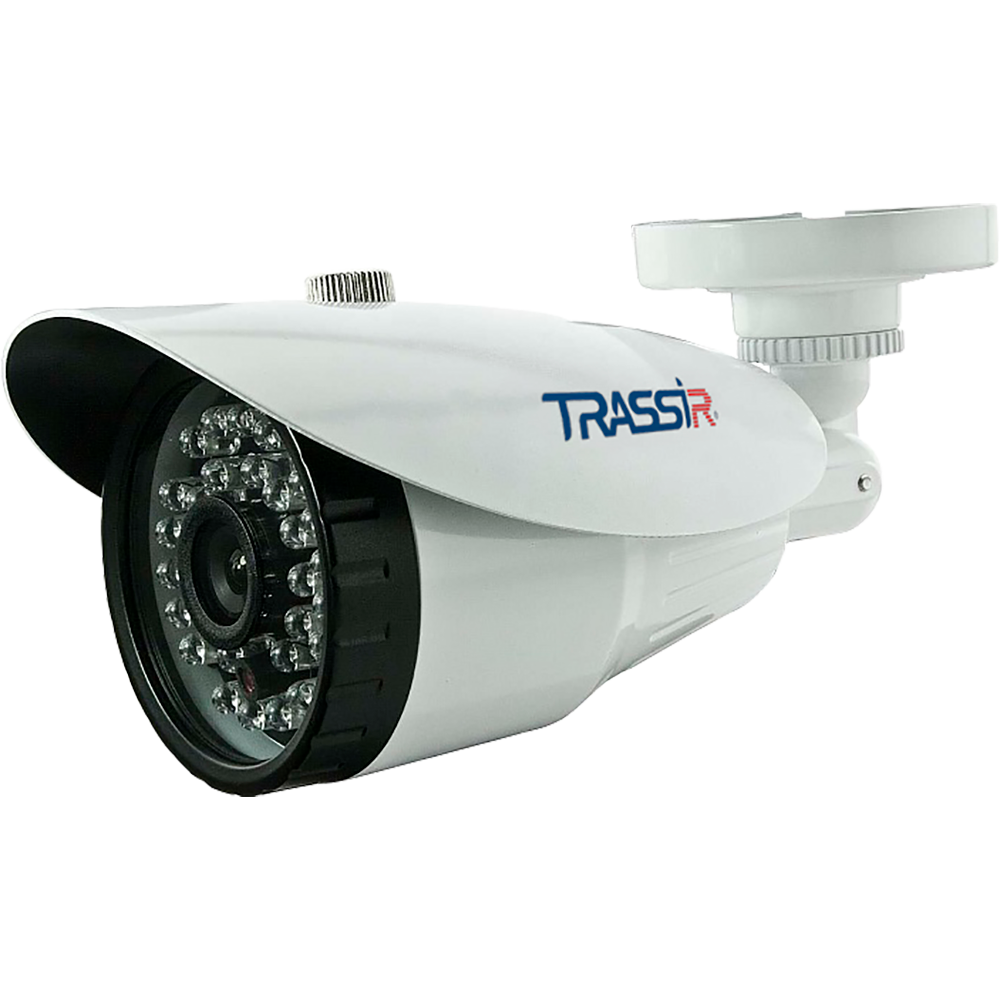

TRASSIR TR-D4B5 v2 (2.8 mm)
4 MP (2560 × 1440) IP-camera is designed taking into account outdoor conditions at any time of the year under the direct influence of precipitation: the case is made of metal, meets the requirements of the IP67 dust and moisture protection standard, operating temperatures from –40 ° C ... +60 ° C, lightning protection - TVS 4000 V. Suitable for night time surveillance - equipped with IR illumination that has a range of 30 m.
Functionality:
Basics:
4 MP (2560 × 1440) IP-camera is designed taking into account outdoor conditions at any time of the year under the direct influence of precipitation: the case is made of metal, meets the requirements of the IP67 dust and moisture protection standard, operating temperatures from –40 ° C ... +60 ° C, lightning protection - TVS 4000 V. Suitable for night time surveillance - equipped with IR illumination that has a range of 30 m.
Functionality:
- - Detection of people, movement, crossing of virtual lines, intrusion into prohibited areas and exiting from the area.
- - WDR 105 dB - Reducing the effect of different-contrast lighting on image quality by choosing the optimal exposure within 105 dB.
- - 3D DNR - Noise Reduction.
- - Corridor mode (aspect ratio 9:16).
- - Defog - elimination of blur caused by fog or smoke in the scene.
- - BLC - Back Light Compensation.
- - Day / night mode with mechanical IR cut filter.
- - Compression of H.265 +, H.265 and H.264.
- - Broadcast speed - 25 fps. Bitrate - 8 Mbps.
Basics:
TR-D4B5 v2 (2.8 mm) is based on a 1/3 "CMOS sensor with 0.005 lux sensitivity. Equipped with a 2.8 mm fixed focal length lens, 77 ° horizontal viewing angle, 42 ° vertical viewing angle, F / 1.8 aperture. DC 12V, PoE. Maximum power consumption - 4.5 W. Size - 236.6 × 86.0 × 76.5 mm. Weight - 350 g.
Documentation
TR-D4B5v2 passport (eng).pdf
