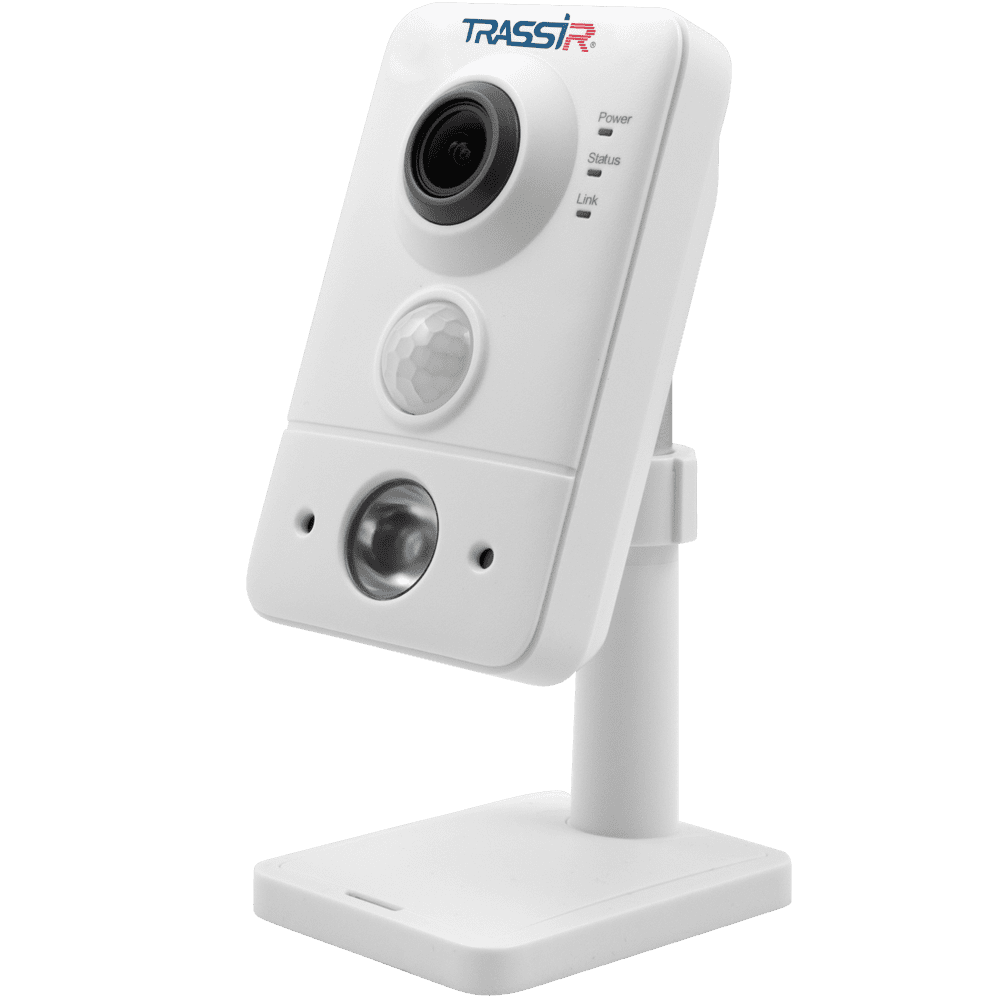

TR-D7251WDIR2W v2 2.8

Book A Demo How To Buy

Technical specifications

PoE:

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

RWDR 120 dB

Frame rate:

Electronic shutter speed:

1/2 ~ 1/1 000 s

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Bitrate (Mb/sec):

Archive, Tb:

151

Power supply:

12V DC

Overview

5 MP (2880 × 1632) TRASSIR TR-D8251WDCL3 2.8 IP camera is adapted for outdoor use at any time of the year and day - in places of direct access under the influence of precipitation: protection of the case from moisture and dust - IP66, from mechanical influences - IK10, working temperatures - -40 °C ... +60 °C, lightning protection - TVS 4000 V, range of the integrated backlight - 30 m.

Functionality

Software motion detection, people, faces, cars.
Detection of virtual line crossing, area intrusion, area exit, loitering.
People counting.
Built-in microphone.
WDR 120dB - Minimizes the effect of different contrast lighting on image quality.
3D DNR - spatial noise reduction.
Corridor Mode - Supports vertical resolution with a 9:16 aspect ratio.
Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
ROI - fixing on the selected area and a parallel decrease in resolution in other parts of the frame.
BLC - backlight compensation.
Frame rate - 25 fps, bit rate - 8 Mbps
Compression H.265+, H.265, H.264.

Basics

TR-D8251WDCL3 2.8 is equipped with a 2.8mm fixed focal length lens with a 101° horizontal and 58° vertical field of view. Equipped with RJ-45 network port, audio input, audio output, alarm input, alarm output, microSD slot up to 128 MB, power connector. Power supply - DC 12 V, PoE. The maximum power consumption is 4.5 W. Size - Ø93.0×92.2 mm. Weight - 400 g.

Documentation

TR-D7251WDIR2Wv2_passport_en.pdf
