TR-D2251WDC 2.8
Technical specifications
PoE:
69Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
RWDR 120 dBFrame rate:
25Electronic shutter speed:
1/2 ~ 1/1 000 sDigital noise Reduction:
3D DNRCorridor mode:
YesBitrate (Mb/sec):
8Archive, Tb:
151Power supply:
12V DCOverview

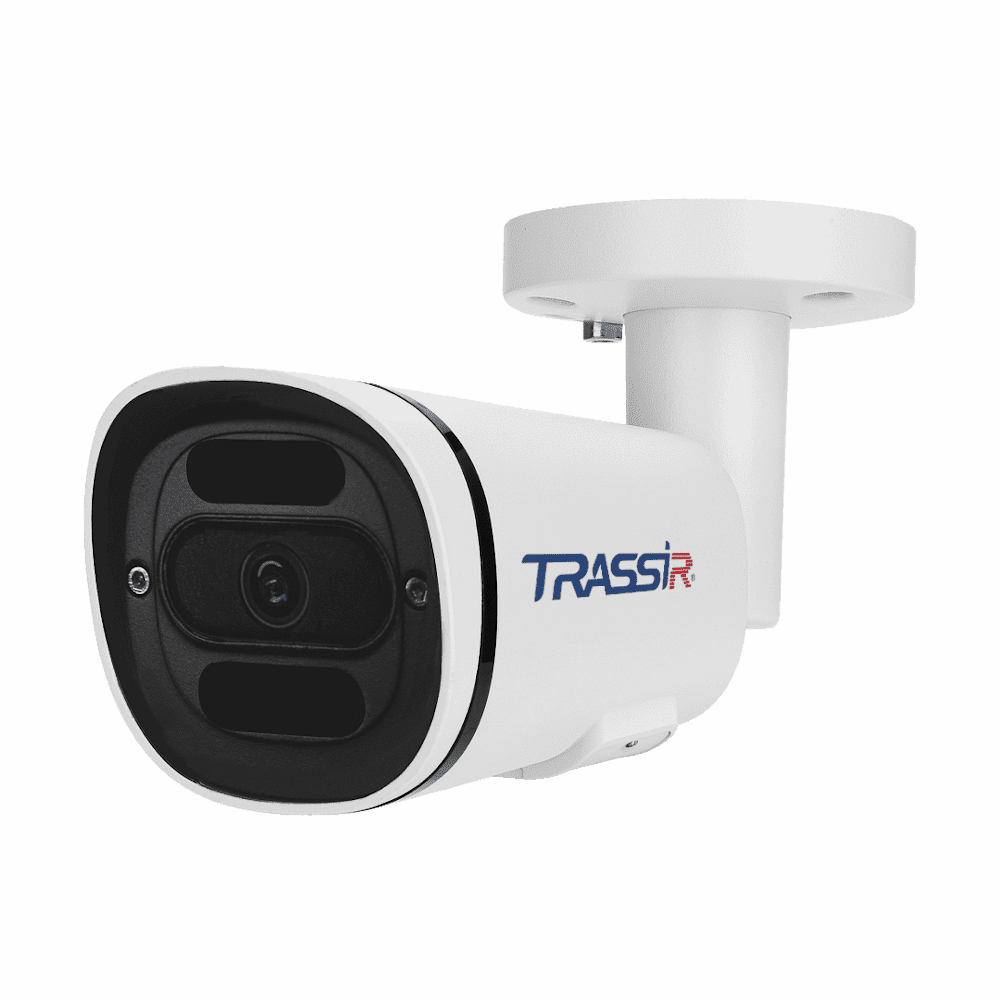

5 MP (2880×1632) shock-resistant (IK08) IP camera TRASSIR TR-D2251WDC 2.8 is adapted for outdoor use at any time of the year: protection against moisture and dust - IP67, operating temperatures from -40 °C ... +60 °C, lightning protection - TVS 4000 V.
Functionality
Basics
TR-D2251WDC 2.8 is equipped with a 2.8mm fixed focal length lens with a 101° horizontal and 58° vertical field of view. Equipped with RJ-45 network port, audio input, audio output, alarm input, alarm output, microSD slot up to 128 MB, power connector. Power supply - DC 12 V, PoE. The maximum power consumption is 2.4 W. Size - 184.7 × 68.0 × 63.0 mm. Weight - 480 g.
Functionality
- Software motion detection, people, faces, cars.
- Detection of virtual line crossing, area intrusion, area exit, loitering.
- People counting.
- Built-in microphone.
- WDR 120dB - Minimizes the effect of different contrast lighting on image quality.
- 3D DNR - spatial noise reduction.
- Corridor Mode - Supports vertical resolution with a 9:16 aspect ratio.
- Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
- ROI - fixing on the selected area and a parallel decrease in resolution in other parts of the frame.
- BLC - backlight compensation.
- Frame rate - 25 fps, bit rate - 8 Mbps
- Compression H.265+, H.265, H.264.
Basics
TR-D2251WDC 2.8 is equipped with a 2.8mm fixed focal length lens with a 101° horizontal and 58° vertical field of view. Equipped with RJ-45 network port, audio input, audio output, alarm input, alarm output, microSD slot up to 128 MB, power connector. Power supply - DC 12 V, PoE. The maximum power consumption is 2.4 W. Size - 184.7 × 68.0 × 63.0 mm. Weight - 480 g.
Documentation
TR-D2251WDC_passport_en.pdf
