TR-D3251WDIR3 v2 3.6
Technical specifications
PoE:
69Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
RWDR 120 dBFrame rate:
25Electronic shutter speed:
1/2 ~ 1/1 000 sDigital noise Reduction:
3D DNRCorridor mode:
YesBitrate (Mb/sec):
8Archive, Tb:
151Power supply:
12V DCOverview

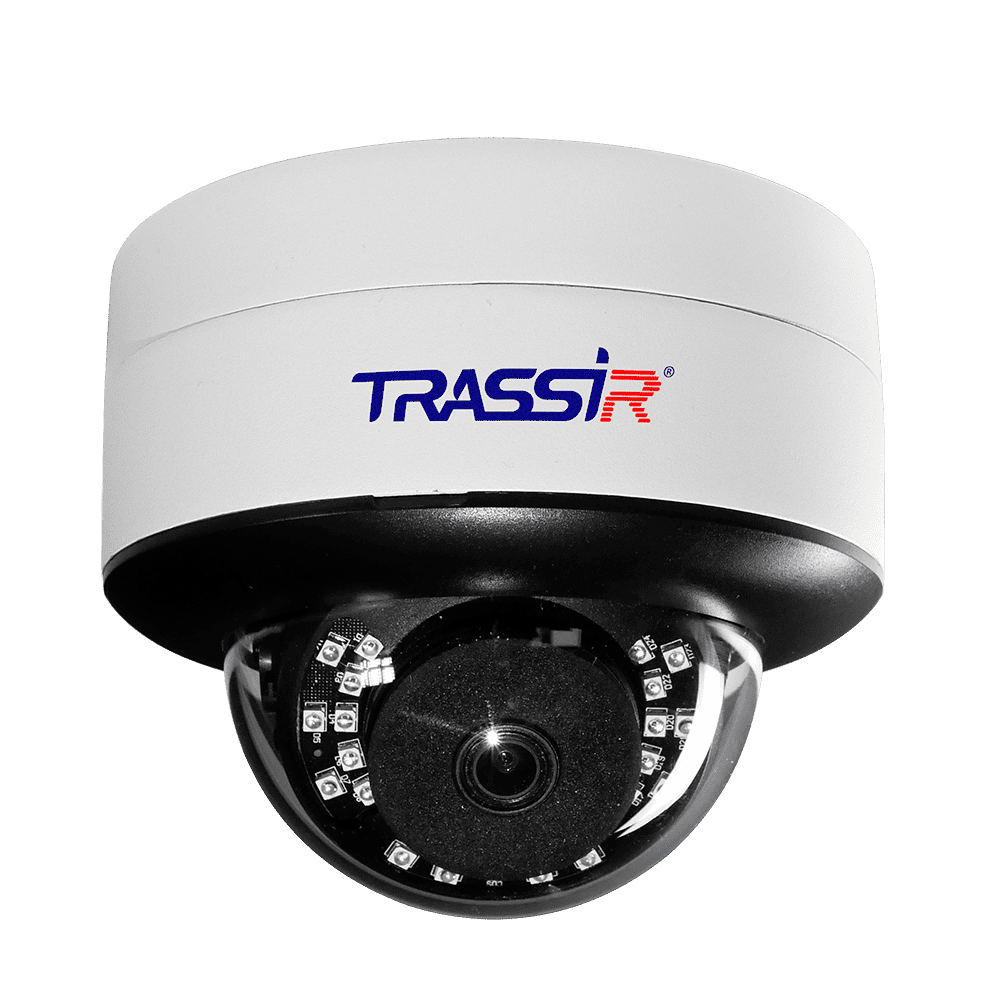

5 MP (2592×1920) IP-camera TRASSIR TR-D3251WDIR3 v2 3.6 is adapted for year-round outdoor use in places of direct access: the case meets the standard of protection against moisture and dust IP66, against mechanical influences - IK10, operating temperatures from -40 °C... +60 °C, lightning protection - TVS 4000 V.
Functionality
Motion detection, faces (optional), cars, people counting.
Detection of virtual line crossing, area intrusion, area exit, loitering.
WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
3D DNR - spatial noise reduction.
Corridor mode - hardware support for vertical resolution.
Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
BLC - backlight compensation.
IR illumination with a range of 30 m.
Compression H.265+, H.265, H.264+, H.264.
Basics
TR-D3251WDIR3 v2 2.8 is equipped with a lens with a fixed focal length of 3.6 mm, a horizontal angle of view of 91°, a vertical angle of 66°, aperture of F/1.8. Equipped with RJ-45 network port, audio input, audio output and integrated microphone, alarm input and alarm output, microSD slot up to 128 MB. Power Supply – 12V DC or PoE. The maximum power consumption is 5.8 W. Size - Ø116.10×96.51 mm. Weight - 450 g.
Functionality
Motion detection, faces (optional), cars, people counting.
Detection of virtual line crossing, area intrusion, area exit, loitering.
WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
3D DNR - spatial noise reduction.
Corridor mode - hardware support for vertical resolution.
Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
BLC - backlight compensation.
IR illumination with a range of 30 m.
Compression H.265+, H.265, H.264+, H.264.
Basics
TR-D3251WDIR3 v2 2.8 is equipped with a lens with a fixed focal length of 3.6 mm, a horizontal angle of view of 91°, a vertical angle of 66°, aperture of F/1.8. Equipped with RJ-45 network port, audio input, audio output and integrated microphone, alarm input and alarm output, microSD slot up to 128 MB. Power Supply – 12V DC or PoE. The maximum power consumption is 5.8 W. Size - Ø116.10×96.51 mm. Weight - 450 g.
Documentation
TR-D3251WDIR3v2_passport_en.pdf
