Technical specifications

PoE:

Audio:

Built-in microphone
Built-in speaker

WDR:

RWDR 120 dB

Bitrate (Mb/sec):

Archive, Tb:

151

Power supply:

DC 12 V, PoE

Overview

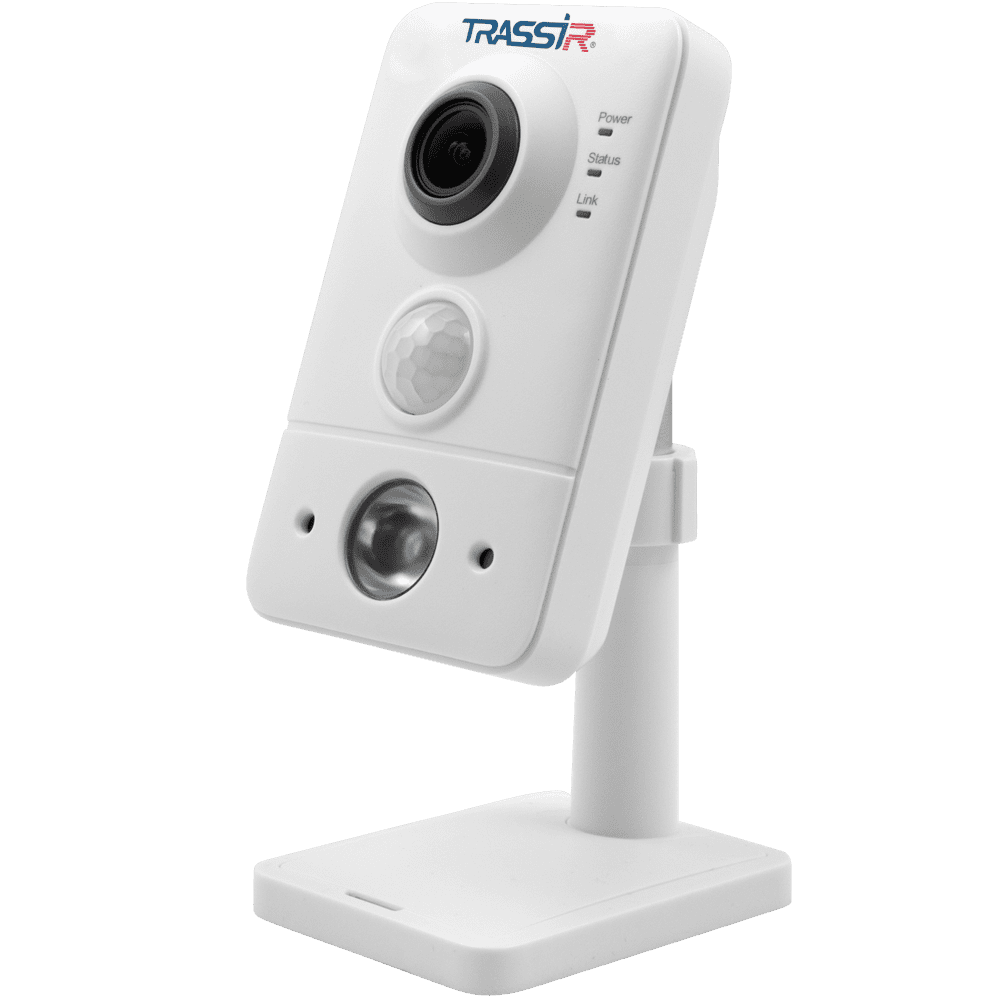

TRASSIR TR-D7151IR1

Internal 5 MP (2592 × 1944) IP camera (2.8 mm). Suitable for night time surveillance - equipped with IR illumination that has a range of 10 m. Equipped with a microphone and speaker - for two-way audio communication.

Resolution and broadcast speed:

5 MP - 15 fps.

4 MP - 20 fps.

3 MP - 25 fps.

2 MP - 25 fps.

1.3 MP - 25 fps.

1 MP - 25 fps.

Functionality:

- WDR 120 dB - neutralization of the influence of different-contrast lighting on the picture quality.
- 3D DNR - spatial noise reduction.
- Shooting in vertical resolution with an aspect ratio of 9:16.
- Defog (anti-fog) - improving the contrast to eliminate the imperfections caused by fog, smoke.
- ROI - fixing on a specific area with an accompanying reduction in resolution in the rest of the frame to optimize the bitrate.
- BLC - backlight correction.
- HLC - local exposure masking.
- Day / night mode with ICR, with sufficient illumination to refract infrared rays.
- Compression with H.265 +, H.265 and H.264 codecs.

Basics:

TR-D7151IR1 (2.8 mm) is equipped with a lens with a fixed focal length of 2.8 mm, horizontal field of view 102 °, vertical field - 72 °, aperture F / 1.8. Equipped with an RJ-45 network port, a microSD slot with a capacity of up to 128 GB, a power connector. At peak loads, it consumes no more than 4.6 watts. Power supply - 12V DC, PoE. Dimensions - 60.0 × 99.0 × 32.8 mm. Weight - 95 g. Operating temperatures from –10 ° C… +50 ° C.

Documentation

TR-D7151IR1_passport_en.pdf
