TR-D2121CL3 4.0
Technical specifications
PoE:
69Audio:
Built-in microphoneWDR:
RWDR 120 dBFrame rate:
25Corridor mode:
YesBitrate (Mb/sec):
8Archive, Tb:
151Power supply:
12V DCOverview

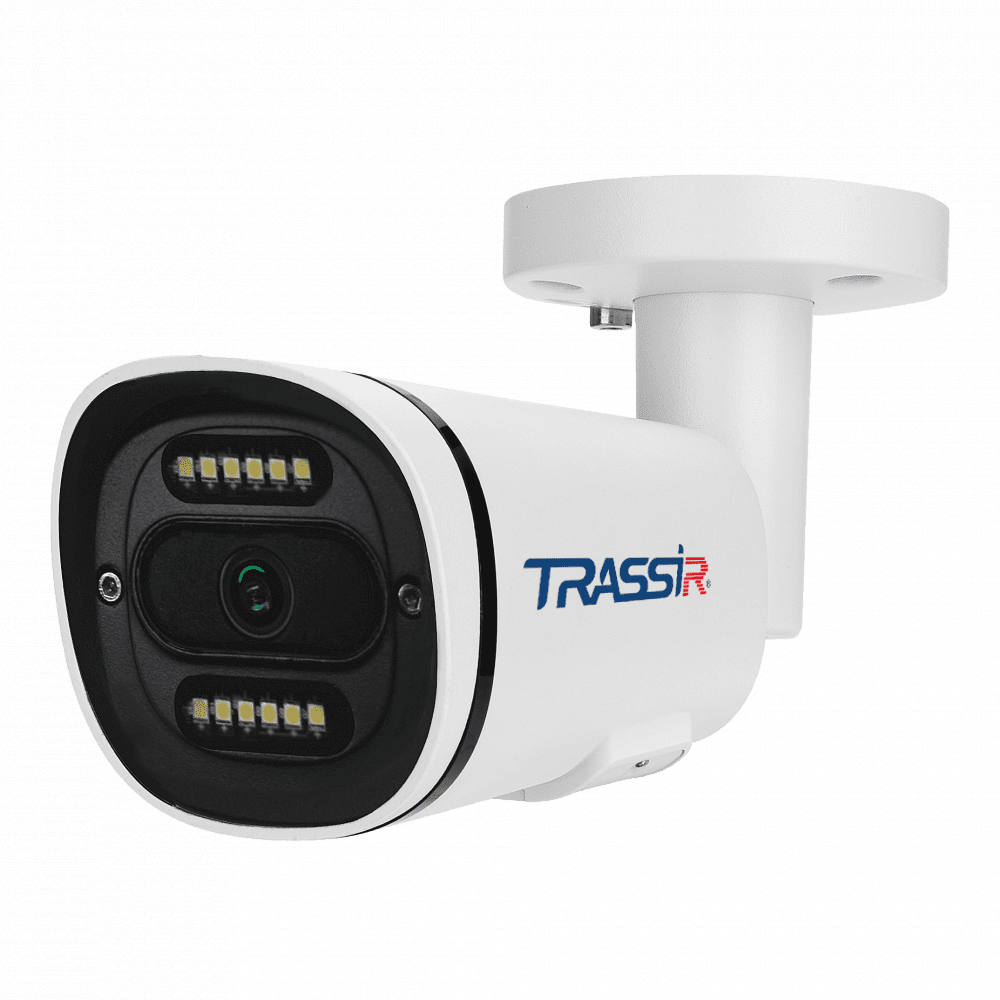

TRASSIR TR-D2121CL3 (4 mm)
2 MP (1920 × 1080) IP-camera is based on a high-sensitivity (0.0015 lux) 1 / 2.8 "matrix, equipped with a fast (F / 1.0) lens and LED-backlight with a range of 35 m, due to which it broadcasts color video around the clock. outdoor use at any time of the year: the case is protected from dust and moisture according to the IP67 standard, operating temperatures - –40 ° C ... +60 ° C, lightning protection - TVS 4000 V.
Functionality:
Basics:
TR-D2121CL3 (4 mm) is equipped with a microSD slot with a capacity of up to 128 GB. By default, after inserting an SD card, the camera activates the archive recording function by a motion detector signal. The recorded archive can be viewed through the TRASSIR-Client application - provided that the camera is connected to TRASSIR Cloud. For the SD card to work correctly, it must be formatted first.
The focal length of the lens is 4 mm, the horizontal angle of view is 105 °, and the vertical angle is 55 °. Interfaces: RJ-45 network port, power connector. Power supply - DC 12 V, PoE. Power: DC - 3.36 W, PoE - 4.80 W max. Dimensions - 184.7 × 66.5 × 63.0 mm, weight - 480 g.
2 MP (1920 × 1080) IP-camera is based on a high-sensitivity (0.0015 lux) 1 / 2.8 "matrix, equipped with a fast (F / 1.0) lens and LED-backlight with a range of 35 m, due to which it broadcasts color video around the clock. outdoor use at any time of the year: the case is protected from dust and moisture according to the IP67 standard, operating temperatures - –40 ° C ... +60 ° C, lightning protection - TVS 4000 V.
Functionality:
- - Detection of people, movement, crossing a virtual line, entering an area, exiting an area, crossing an area.
- - Built-in microphone.
- - WDR 120 dB - reducing the effect of changes in the level of illumination on the image quality: double scanning with different shutter speeds and the subsequent formation of the final balanced frame.
- - 3D DNR - spatial noise reduction.
- - BLC - backlight correction.
- - Defog - elimination of deficiencies caused by fog or smoke.
- - Compression of H.264, H.264 +, H.265 and H.265 +.
- - Broadcast speed - 25 fps. Bitrate - 8 Mbps.
Basics:
TR-D2121CL3 (4 mm) is equipped with a microSD slot with a capacity of up to 128 GB. By default, after inserting an SD card, the camera activates the archive recording function by a motion detector signal. The recorded archive can be viewed through the TRASSIR-Client application - provided that the camera is connected to TRASSIR Cloud. For the SD card to work correctly, it must be formatted first.
The focal length of the lens is 4 mm, the horizontal angle of view is 105 °, and the vertical angle is 55 °. Interfaces: RJ-45 network port, power connector. Power supply - DC 12 V, PoE. Power: DC - 3.36 W, PoE - 4.80 W max. Dimensions - 184.7 × 66.5 × 63.0 mm, weight - 480 g.
Documentation
TR-D2121CL3_passport_en.pdf
