TR-D8151IR2 v2 3.6
Technical specifications
PoE:
69Audio:
Built-in microphoneWDR:
RWDR 120 dBFrame rate:
25Electronic shutter speed:
1/2 ~ 1/1 000 sDigital noise Reduction:
3D DNRCorridor mode:
YesBitrate (Mb/sec):
8Archive, Tb:
151Power supply:
12V DCOverview

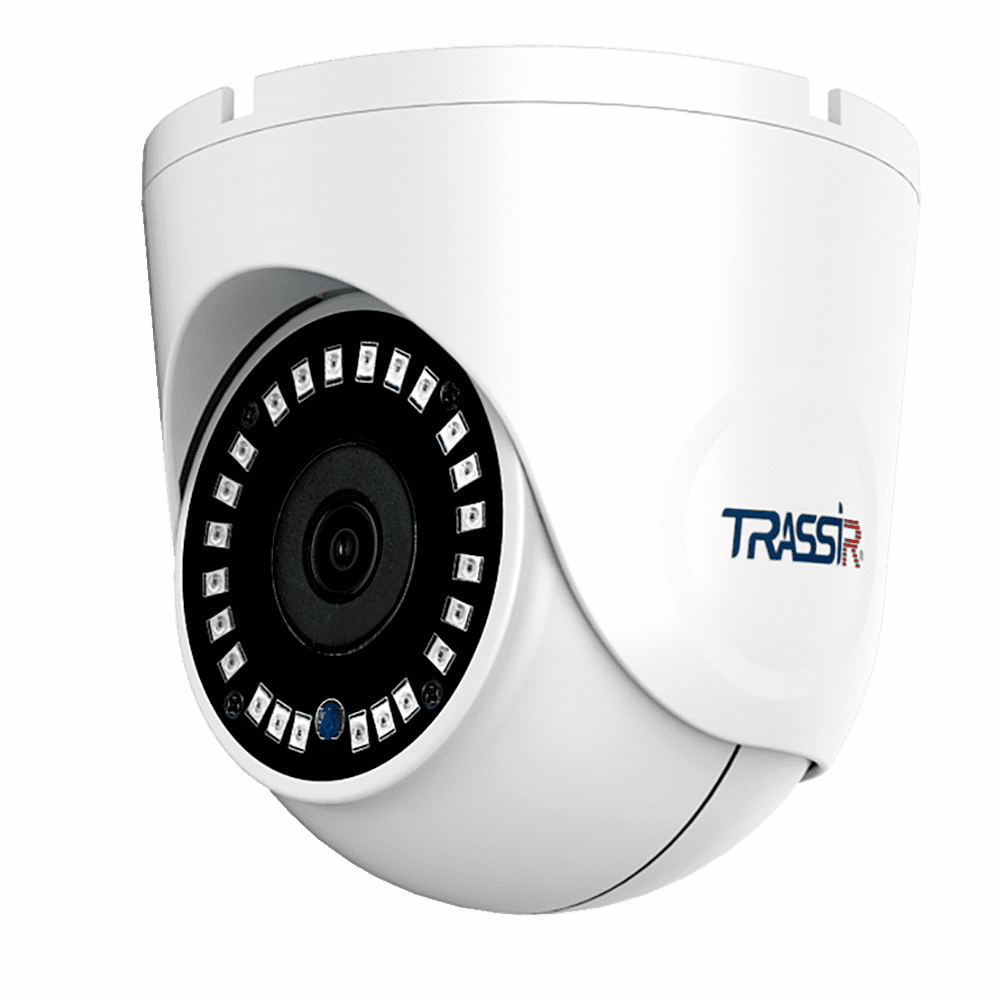

5 MP (2560 × 1920) IP camera TRASSIR TR-D8151IR2 v2 3.6 is adapted for outdoor use regardless of the season and location: protection against moisture and dust - IP66, mechanical impact - IK10, operating temperatures from -40 °C … +60 °C, lightning protection – TVS 4000 V.
Functionality
Basics
TR-D8151IR2 v2 3.6 is built on a 1/2.8-inch CMOS sensor with 0.003 lux sensitivity. Supports day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor to increase its sensitivity. Equipped with a lens with a fixed focal length of 2.8 mm, a horizontal angle of view of 96°, a vertical angle of 69°, an aperture of F / 1.8, an RJ-45 network port, a slot for microSD with a capacity of up to 128 GB. Power supply - DC 12 V, PoE. The maximum power consumption is 5.5 W. Size - Ø93.0×92.2 mm. Weight - 380 g.
Functionality
- Built-in microphone.
- Software motion detection, people.
- Detection of crossing of virtual lines, intrusion into prohibited areas and exiting from the area.
- WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
- 3D DNR - spatial noise reduction.
- Corridor mode - shooting in vertically oriented resolution.
- Defog - contrast enhancement to eliminate the effect introduced by fog, smoke.
- BLC - backlight compensation.
- IR illumination with a range of 25 m.
- Compression H.265+, H.265, H.264.
- Frame rate - 25 fps, bit rate - 8 Mbps.
Basics
TR-D8151IR2 v2 3.6 is built on a 1/2.8-inch CMOS sensor with 0.003 lux sensitivity. Supports day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor to increase its sensitivity. Equipped with a lens with a fixed focal length of 2.8 mm, a horizontal angle of view of 96°, a vertical angle of 69°, an aperture of F / 1.8, an RJ-45 network port, a slot for microSD with a capacity of up to 128 GB. Power supply - DC 12 V, PoE. The maximum power consumption is 5.5 W. Size - Ø93.0×92.2 mm. Weight - 380 g.
Documentation
TR-D8151IR2v2_passport_en.pdf
