Technical specifications

Line:

TRASSIR pro

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/50,000 s

IR range:

up to 35 m

Digital noise Reduction:

3D DNR

IVS:

Yes

Corridor mode:

Yes

Maximum video output resolution:

2560x1920

Image sensor:

1/2.8 CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Overview

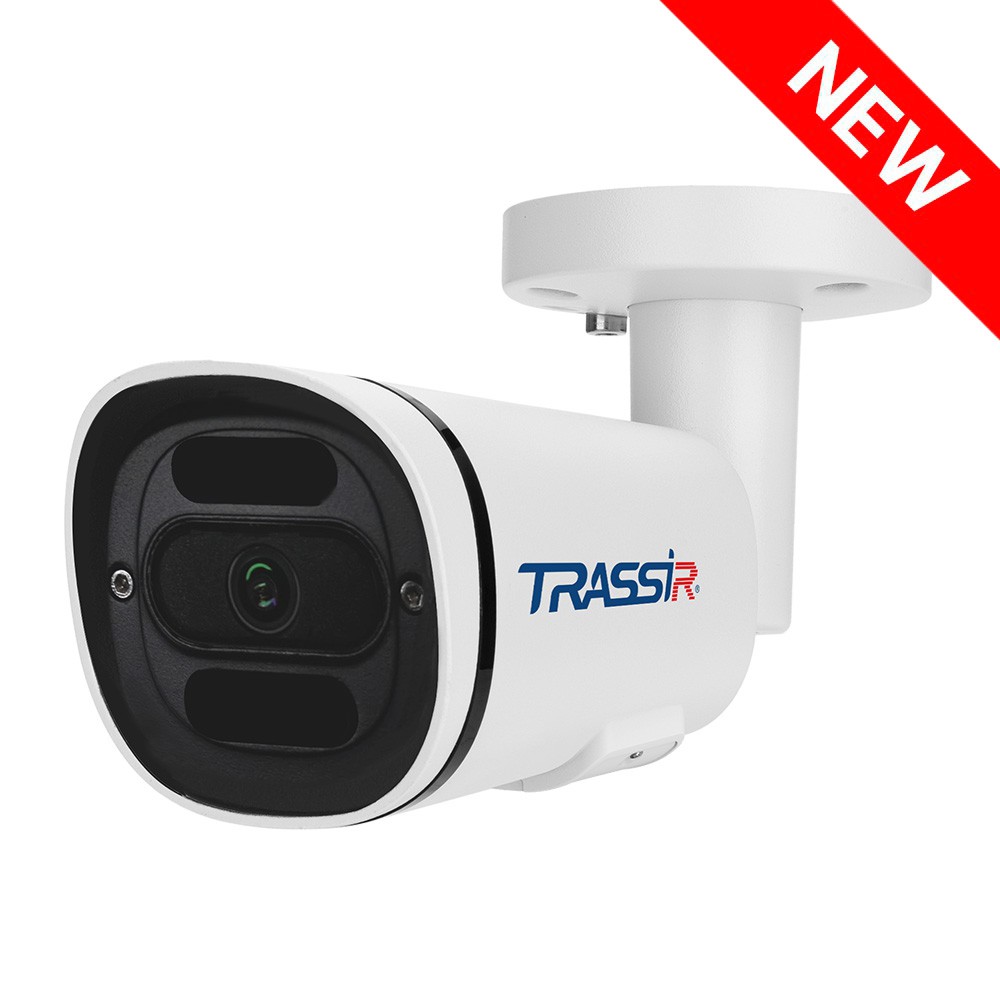

TRASSIR TR-D2151IR3 v7 (2.8 mm)

The 5 MP (2560 × 1920) IP camera TRASSIR TR-D2151IR3 v7 2.8 is housed in a robust metal body with protection ratings of IP67 (dust/moisture), and TVS 4000 V for lightning protection. Designed for year-round outdoor use, it operates reliably in extreme temperatures ranging from –40 °C to +60 °C.

Parameters:

Blackface IR illumination technology
Detection of people, vehicles, line crossing, area entry, and exit
WDR 120 dB to reduce the impact of high-contrast lighting on image quality
3D DNR for spatial noise reduction
Corridor mode for vertically oriented video
1/2.8" CMOS sensor with 0.003 lx sensitivity
Fixed focal length lens: 2.8 mm focal length, 98° horizontal viewing angle, 71° vertical viewing angle, F/1.6 aperture
Video compression codecs: H.265+, H.265, H.264
Night surveillance with IR illumination up to 35 m
Local storage via SD card slot supporting up to 256 GB
Two-way audio communication: built-in microphone, audio input, and audio output
Power supply: DC 12 V or PoE
Maximum power consumption: 6.7 W
Dimensions: 184.67 × 66.50 × 63.05 mm
Weight: 460 g
