TR-D2151IR3 v7 3.6

Book A Demo How To Buy

Technical specifications

Line:

TRASSIR pro

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/50,000 s

IR range:

up to 35 m

Digital noise Reduction:

3D DNR

IVS:

Yes

Corridor mode:

Yes

Maximum video output resolution:

2560x1920

Image sensor:

1/2.8 CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Overview

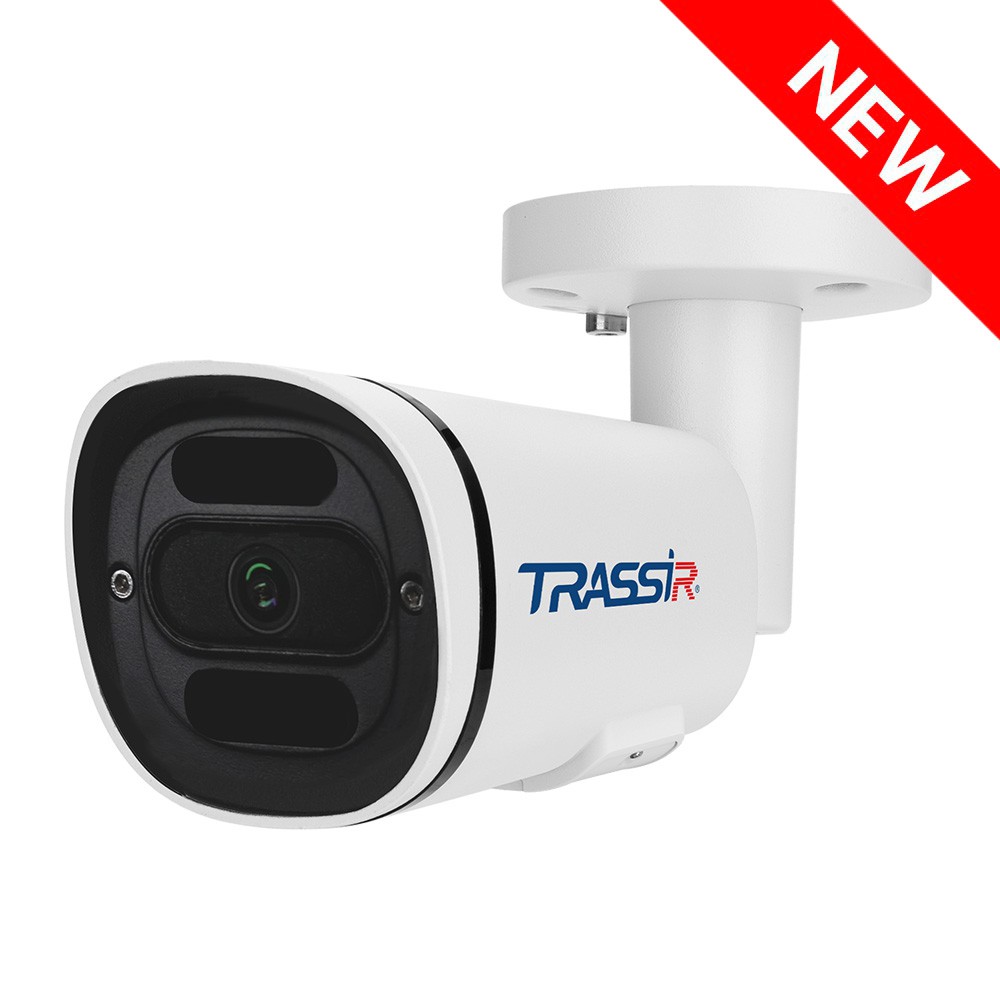

TRASSIR TR-D2151IR3 v7 (3.6 mm)

Designed for year-round outdoor use, the 5 MP (2560×1920) IP camera TRASSIR TR-D2151IR3 v7 3.6 features a metal housing protected against moisture and dust according to the IP67 standard. It operates within a temperature range of –40 °C to +60 °C and includes 4000 V TVS lightning protection.

Parameters:

Blackface IR illumination technology
Detection of people, vehicles, line crossing, and area entry and exit
WDR 120 dB to reduce the effects of high-contrast lighting on image quality
3D DNR for spatial noise reduction
Corridor mode for vertically oriented video capture
1/2.8" CMOS sensor with 0.003 lx sensitivity
Fixed focal length lens: 3.6 mm focal length, 84° horizontal viewing angle, 60° vertical viewing angle, F/1.6 aperture
Video compression codecs: H.265+, H.265, H.264
Night surveillance with IR illumination up to 35 meters
Local storage via SD card slot supporting up to 256 GB
Two-way audio: built-in microphone, audio input, and audio output
Power supply: DC 12 V or PoE
Maximum power consumption: 6.7 W
Dimensions: 184.67 × 66.50 × 63.05 mm
Weight: 460 g
