TR-D2253WDZIR7 v2 2.7-13.5
Technical specifications
PoE:
69Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
RWDR 120 dBFrame rate:
25Electronic shutter speed:
1/2 ~ 1/1 000 sDigital noise Reduction:
3D DNRCorridor mode:
YesBitrate (Mb/sec):
8Archive, Tb:
151Power supply:
12V DCOverview

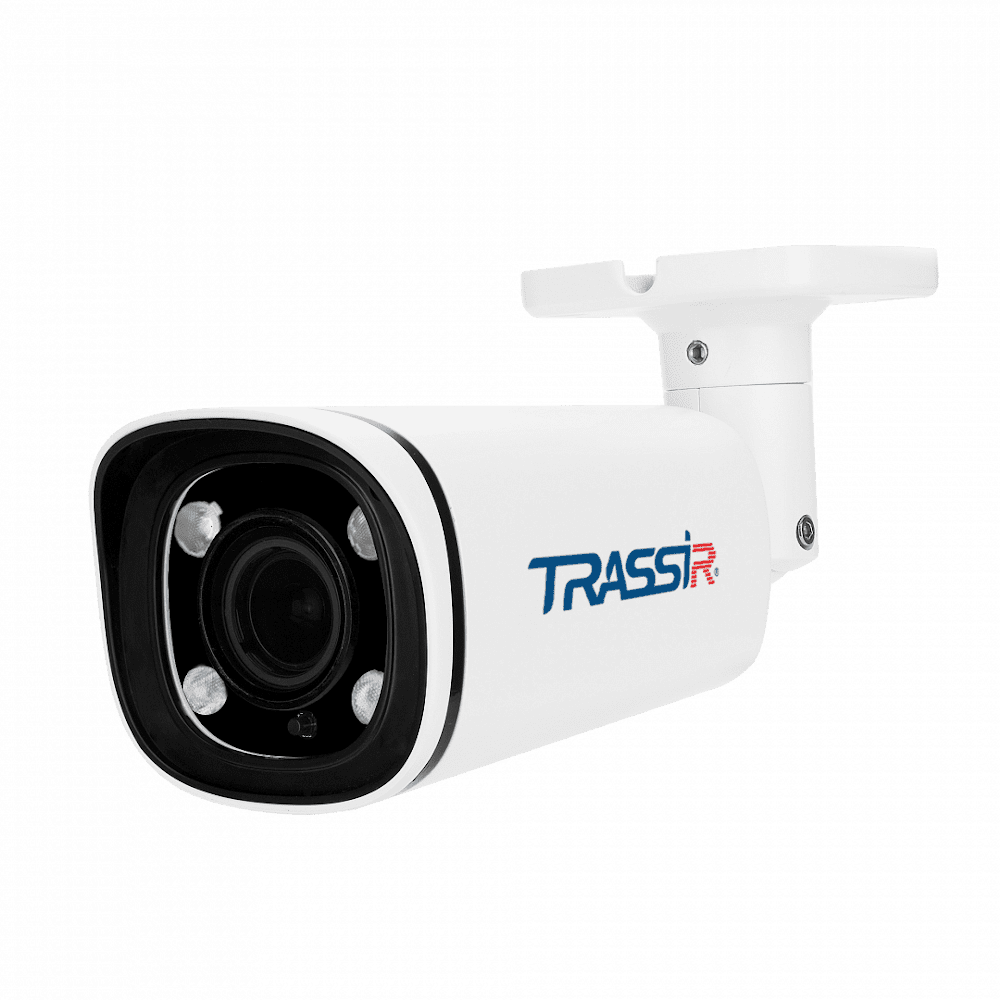

Shock-resistant (IK08) 5 MP (2592×1920) TRASSIR TR-D2253WDZIR7 v2 2.7–13.5 IP camera is designed for year-round outdoor use: protection against moisture and dust - IP67, operating temperatures from -40 °C ... +60 ° C, lightning protection - TVS 4000 V.
Functionality
Motion detection, faces (optional), cars.
People counting.
Detection of virtual line crossing, area intrusion, area exit, loitering.
WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
3D DNR - spatial noise reduction.
Corridor mode - hardware support for vertical resolution.
Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
BLC - backlight compensation.
IR illumination with a range of 70 m.
Compression H.265+, H.265, H.264+, H.264.
Basics
TR-D2253WDZIR7 v2 2.7–13.5 is equipped with a motorized lens with a focal length of 2.7 ~ 13.5 mm, horizontal field of view 93° ~ 29°, vertical field of view 69° ~ 22°, aperture F/1.3. Equipped with RJ-45 network port, audio input, audio output and integrated microphone, alarm input and alarm output, microSD slot up to 128 MB. Power Supply – 12V DC or PoE. The maximum power consumption is 9.6 W. Size - 234.33 × 77.50 × 73.40 mm. Weight - 635 g.
Functionality
Motion detection, faces (optional), cars.
People counting.
Detection of virtual line crossing, area intrusion, area exit, loitering.
WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
3D DNR - spatial noise reduction.
Corridor mode - hardware support for vertical resolution.
Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
BLC - backlight compensation.
IR illumination with a range of 70 m.
Compression H.265+, H.265, H.264+, H.264.
Basics
TR-D2253WDZIR7 v2 2.7–13.5 is equipped with a motorized lens with a focal length of 2.7 ~ 13.5 mm, horizontal field of view 93° ~ 29°, vertical field of view 69° ~ 22°, aperture F/1.3. Equipped with RJ-45 network port, audio input, audio output and integrated microphone, alarm input and alarm output, microSD slot up to 128 MB. Power Supply – 12V DC or PoE. The maximum power consumption is 9.6 W. Size - 234.33 × 77.50 × 73.40 mm. Weight - 635 g.
Documentation
TR-D2253WDZIR7v2_passport_en.pdf
