TR-D3153ZIR3 v7 2.7–13.5

Book A Demo How To Buy

Technical specifications

Line:

TRASSIR trend

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/50,000 s

IR range:

up to 30 m

Digital noise Reduction:

3D DNR

IVS:

Yes

Corridor mode:

Yes

Maximum video output resolution:

2560x1920

Image sensor:

1/2.8 CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Overview

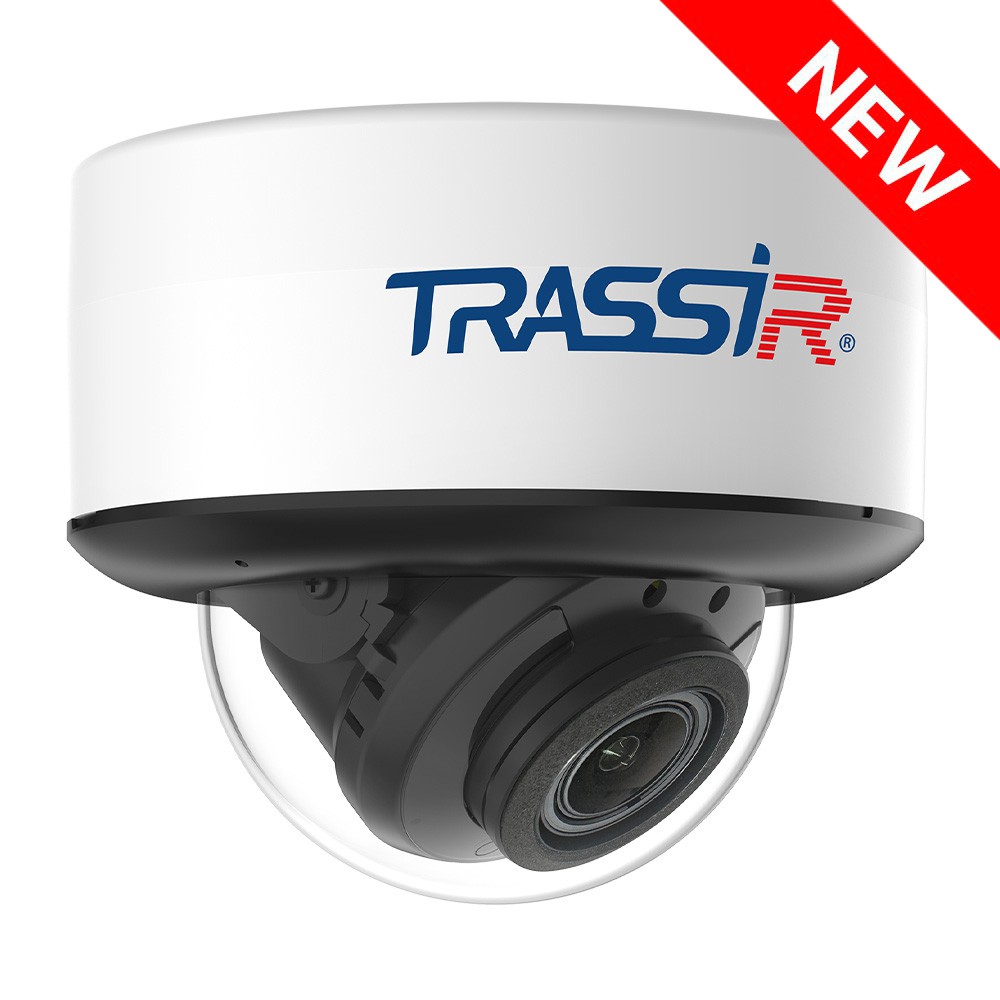

TRASSIR TR-D3153ZIR3 v7 (2.7–13.5mm)

The TRASSIR TR-D3153ZIR3 v7 2.7–13.5 is a 5 MP (2560×1920) IP camera designed for outdoor use in areas with direct public access, offering reliable performance in all weather conditions, day or night. It features a robust metal housing, rated IK10 for impact resistance and IP66 for protection against dust and moisture. The camera operates in temperatures from –40 °C to +60 °C, includes 4000 V TVS lightning protection, and has integrated IR illumination with a range of up to 30 meters.

Parameters:

Blackface IR illumination technology
Detection of people, vehicles, line crossing, and area entry/exit
WDR 120 dB for improved image quality in high-contrast lighting
3D DNR for spatial noise reduction
Corridor mode for vertically oriented video
1/2.8" CMOS sensor with 0.003 lx sensitivity
Motorized varifocal lens (2.7–13.5 mm), horizontal viewing angle: 85°–50°, vertical viewing angle: 62°–38°, aperture: F/1.6
Mechanical IR-cut filter for optimal image clarity under varying lighting conditions
Video compression formats: H.265+, H.265, H.264
Built-in microphone
SD card slot supporting up to 256 GB (hot-swappable)
Interfaces: network port, audio input, audio output, reset button
Power supply: DC 12 V or PoE
Maximum power consumption: 8.9 W
Dimensions: Ø116.10 × 96.51 mm
Weight: 460 g
