TR-D4151IR1 v7 2.8
Technical specifications
Line:
TRASSIR trendAudio:
Built-in microphoneAudio-in
Audio-out
WDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/50,000 sIR range:
up to 15 mDigital noise Reduction:
3D DNRIVS:
YesCorridor mode:
YesMaximum video output resolution:
2560x1920Image sensor:
1/2.8 CMOSBitrate (Mb/sec):
up to 8MbpsPower supply:
PoE (802.3af) / 12V DCOverview

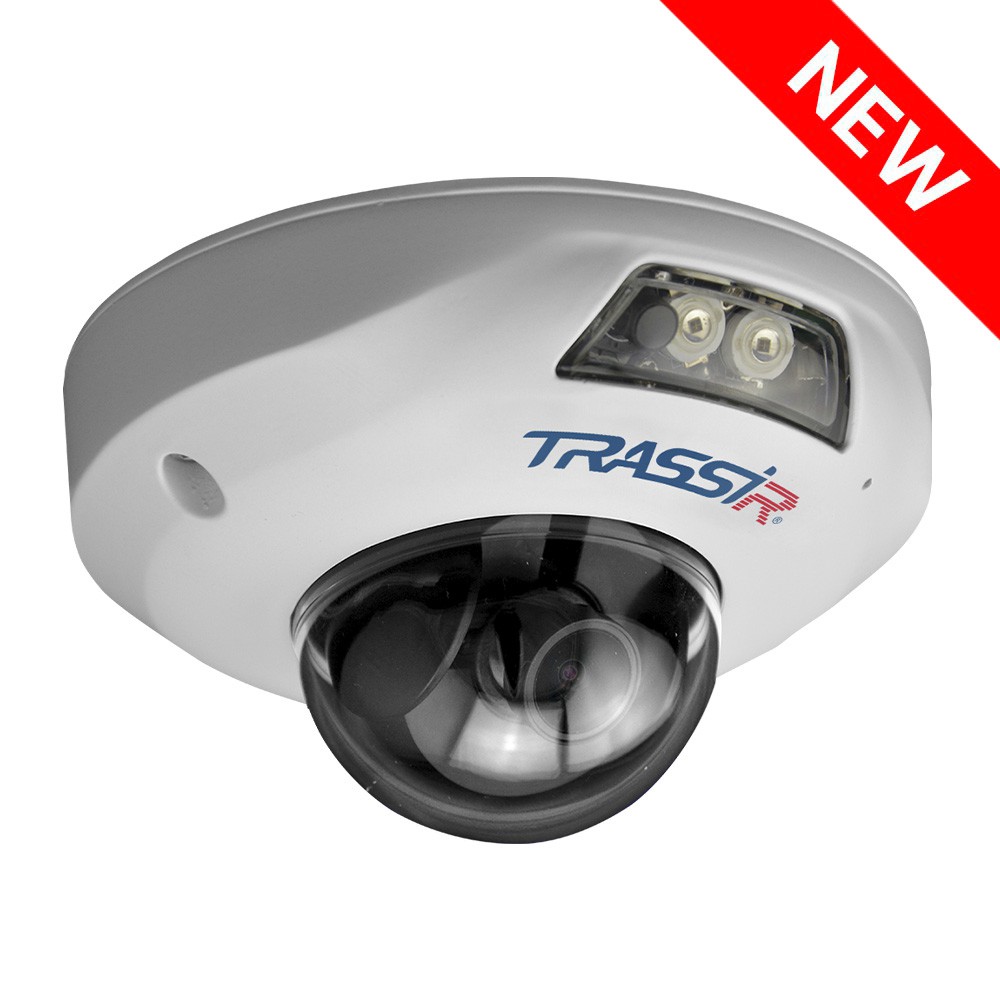

TRASSIR TR-D4151IR1 v7 (2.8 mm)
Parameters:
The TRASSIR TR-D4151IR1 v7 2.8 is a 5 MP (2560×1920) IP camera adapted for year-round outdoor use in areas with direct public access. It features a robust metal housing rated IK10 for impact protection and IP66 for resistance to dust and moisture. The camera operates in temperatures ranging from –40 °C to +60 °C and includes 4000 V TVS lightning protection.
Parameters:
- Detection of people, vehicles, line crossing, and area entry/exit
- WDR 120 dB – reduces the impact of high-contrast lighting on image quality
- 3D DNR – spatial noise reduction
- Corridor mode – optimized for vertically oriented video
- 1/2.8" CMOS sensor with 0.003 lx sensitivity
- Fixed focal length lens (2.8 mm), horizontal viewing angle: 98°, vertical viewing angle: 71°, aperture: F/1.6
- Mechanical IR-cut filter for accurate color reproduction under various lighting conditions
- IR illumination range: up to 15 meters
- Video compression formats: H.265+, H.265, H.264
- Built-in microphone
- Two-way audio: audio input and audio output
- SD card slot supporting up to 256 GB (hot-swappable)
- Power supply: DC 12 V or PoE
- Maximum power consumption: 5.5 W
- Dimensions: Ø102.20 × 56.38 mm
- Weight: 310 g
