TR-H2L1 2.8

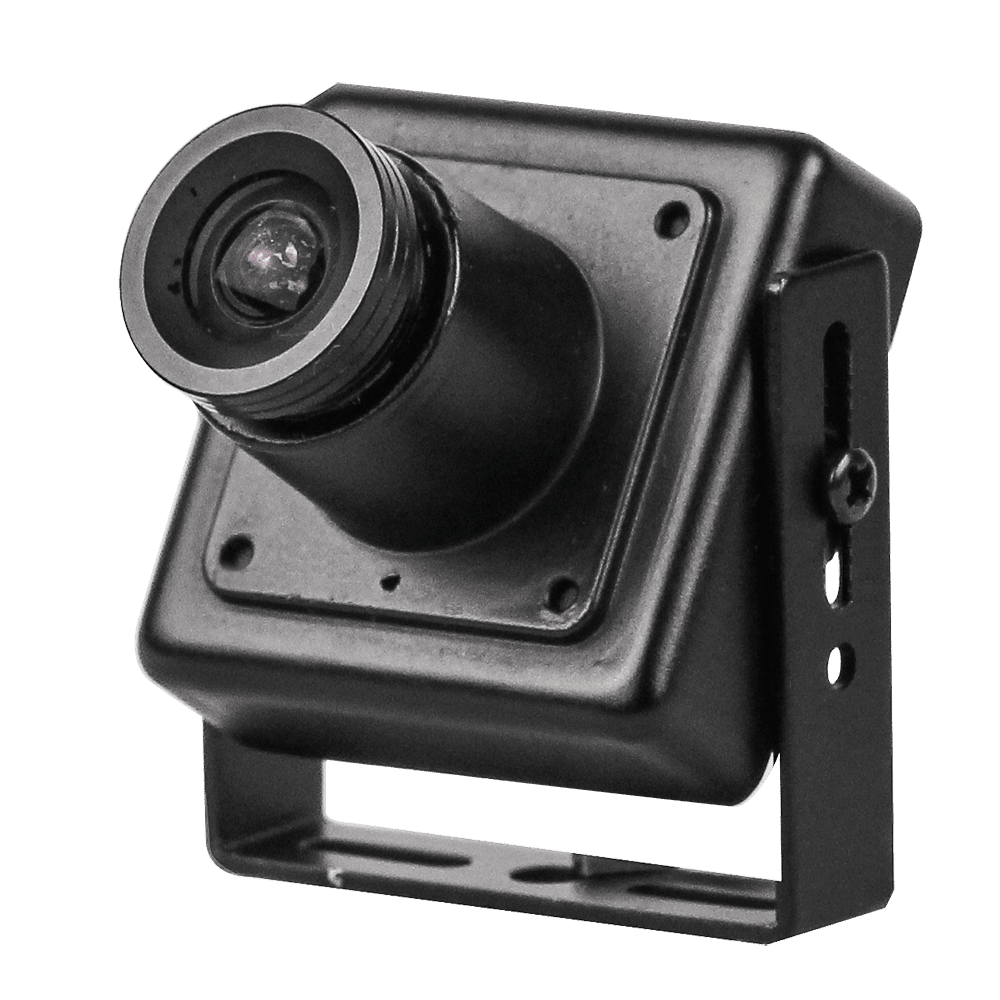

This 2 MP (1920 × 1080) analog camera integrated in a micro enclosure, the largest side of which measures 32 mm. Compatible with AHD, HD-CVI, HD-TVI data transfer formats: transmits an uncompressed 2 MP video signal via coaxial cable over a distance of up to 500 m (1,000 ft).

Resolution by format:

• - AHD — 2 MP.

• - HD-CVI — 2 MP.

• - HD-TVI — 2 MP.

• - PAL — 960H

• - DWDR is a software-based image processing solution designed to enhance the visibility of shaded objects.

• - 2D DNR: Noise reduction.

• - Day/night mode with an electronic IR cut-off filter that blocks infrared rays.

• - Broadcast speed: 25 frames per second.


TR-H2L1 (2.8 mm) is built on a 1/2.9" progressive scan CMOS matrix with 0.01 lux sensitivity. Equipped with a 2.8 mm fixed focal length lens. Power supply: 12 V DC. Current consumption: 300 mA. Size: 30 × 33 × 30 mm Working temperature: –10 °C... +50 °C.
