TR-D3123IR2 v6 2.7-13.5

Book A Demo How To Buy

Technical specifications

PoE:

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

RWDR 120 dB

Bitrate (Mb/sec):

Archive, Tb:

151

Power supply:

DC 12 V, PoE

Overview

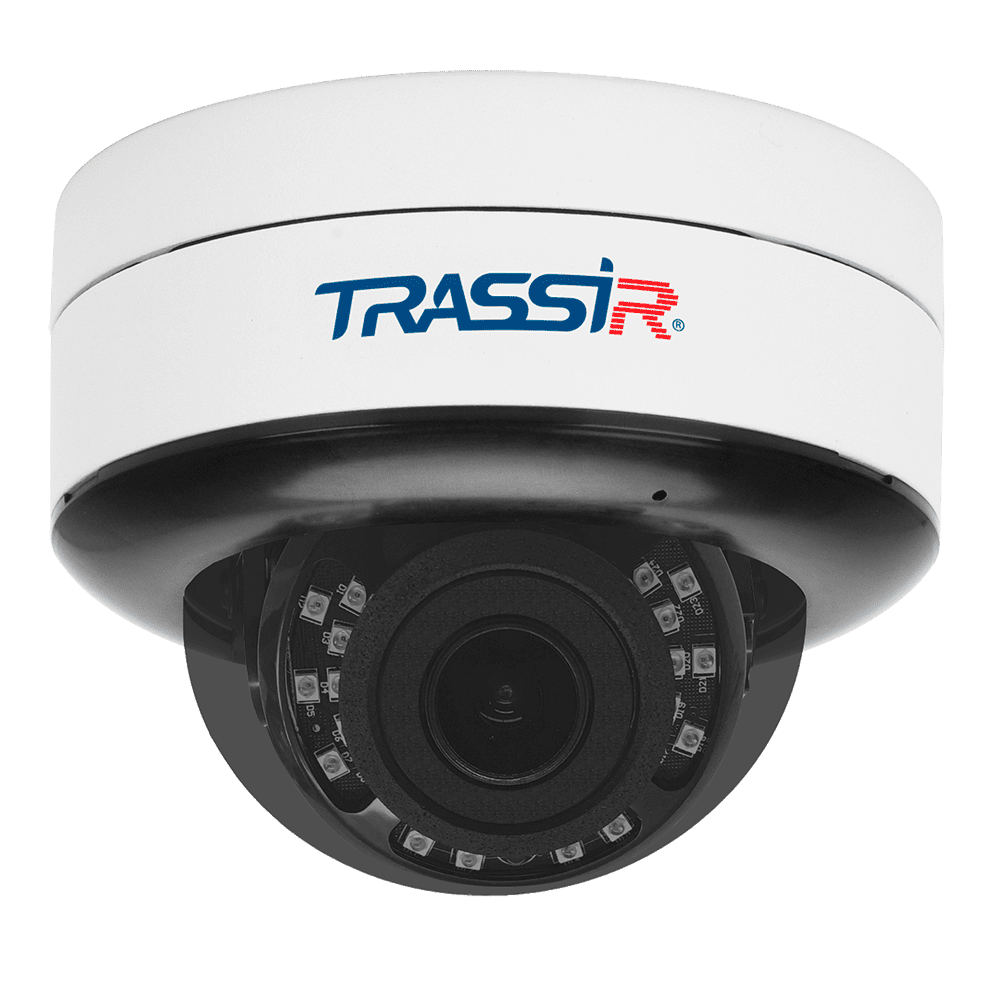

TRASSIR TR-D3123IR2 v6 (2.7-13.5 mm)

2 MP (1920 × 1080) IP-camera for year-round outdoor use is supplied in a metal case, protected from moisture and dust according to IP66, from mechanical impacts - IK10, stably operates in the temperature range –40 ° C ... +60 ° C. Lightning protection TVS 4000 V is provided. For compression, H.264, H.264 +, H.265, H.265 + codecs are intended, for organizing audio messages with the installation site of the camera - audio input and output, for audio control - a built-in microphone, for night video surveillance - IR illumination with a range of 25 m.

Functionality:

- Software detection of movement and people.
- Detection of crossing the virtual line.
- Area control (detection of intrusion / exit from the zone).
- WDR 120 dB - minimizes the effect of different contrast lighting on image quality.
- 3D DNR - spatial noise reduction.
- Support for shooting in vertical resolution (corridor mode) with an aspect ratio of 9:16.
- Defog - increase the contrast to eliminate the effects of fog or smoke in the scene.
- BLC - Backlight Compensation.
- Day / night mode with ICR, with sufficient illumination blocking IR rays (in the dark it is shifted to increase the sensitivity of the matrix and the backlight).
- Broadcast speed - 25 frames per second.

Basics:

TR-D3123IR2 v6 (2.7-13.5 mm) is equipped with a 2.7 ~ 13.5 mm variable focal length lens, horizontal viewing angle 100 ° ~ 28 °, vertical field - 56 ° ~ 15 °. Equipped with an RJ-45 network port, a microSD slot with a capacity of up to 128 MB, a power connector. Power Supply - 12V DC or PoE. The maximum power consumption is 3.9 W. Dimensions - Ø116.1 × 90.9 mm. Weight - 520 g.

Documentation

TR-D3123IR2v6 passport (eng).pdf
