Technical specifications

Line:

TRASSIR trend

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/50,000 s

IR range:

up to 35 m

Digital noise Reduction:

3D DNR

IVS:

Yes

Corridor mode:

Yes

Maximum video output resolution:

2560x1920

Image sensor:

1/2.8 CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Overview

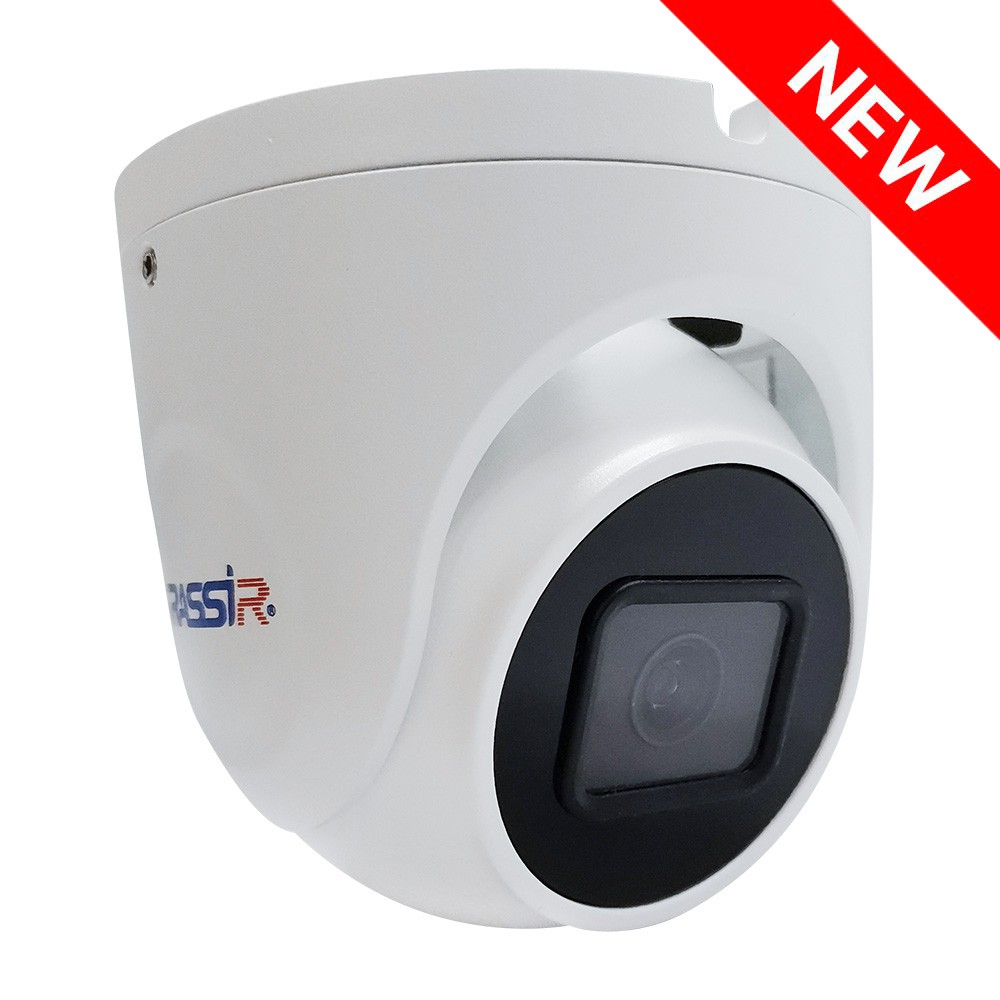

TRASSIR TR-D8151IR3 v7 (3.6 mm)

The TRASSIR TR-D8151IR3 v7 3.6 is a 5 MP (2560×1920) IP camera engineered for outdoor use in areas with direct public access, providing stable performance in all weather and lighting conditions. The camera features a durable metal housing with IK10 impact resistance and IP66 protection against dust and moisture. It operates in extreme temperatures from –40 °C to +60 °C and includes 4000 V TVS lightning protection. Integrated IR illumination supports night surveillance up to 35 meters.

Parameters:

Blackface IR illumination technology
Detection of people, vehicles, line crossing, and area entry/exit
WDR 120 dB – enhances image clarity in high-contrast lighting conditions
3D DNR – spatial noise reduction for cleaner, more detailed footage
Corridor mode – vertically oriented video to minimize blind spots
1/2.8" CMOS sensor with 0.003 lx low-light sensitivity
Fixed lens (3.6 mm), horizontal viewing angle: 84°, vertical viewing angle: 60°, aperture: F/1.6
Mechanical IR-cut filter – blocks infrared light in well-lit conditions for accurate color reproduction
Video compression formats: H.265+, H.265, H.264
Built-in microphone
SD card slot supports up to 256 GB (hot-swappable)
Interfaces: network port, audio input, audio output, reset button
Power supply: DC 12 V or PoE
Maximum power consumption: 7.6 W
Dimensions: Ø93.0 × 92.2 mm
Weight: 380 g
