Technical specifications

Line:

TRASSIR trend

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/50,000 s

IR range:

up to 40 m

Digital noise Reduction:

3D DNR

IVS:

Yes

Corridor mode:

Yes

Maximum video output resolution:

2560x1920

Image sensor:

1/2.8 CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Overview

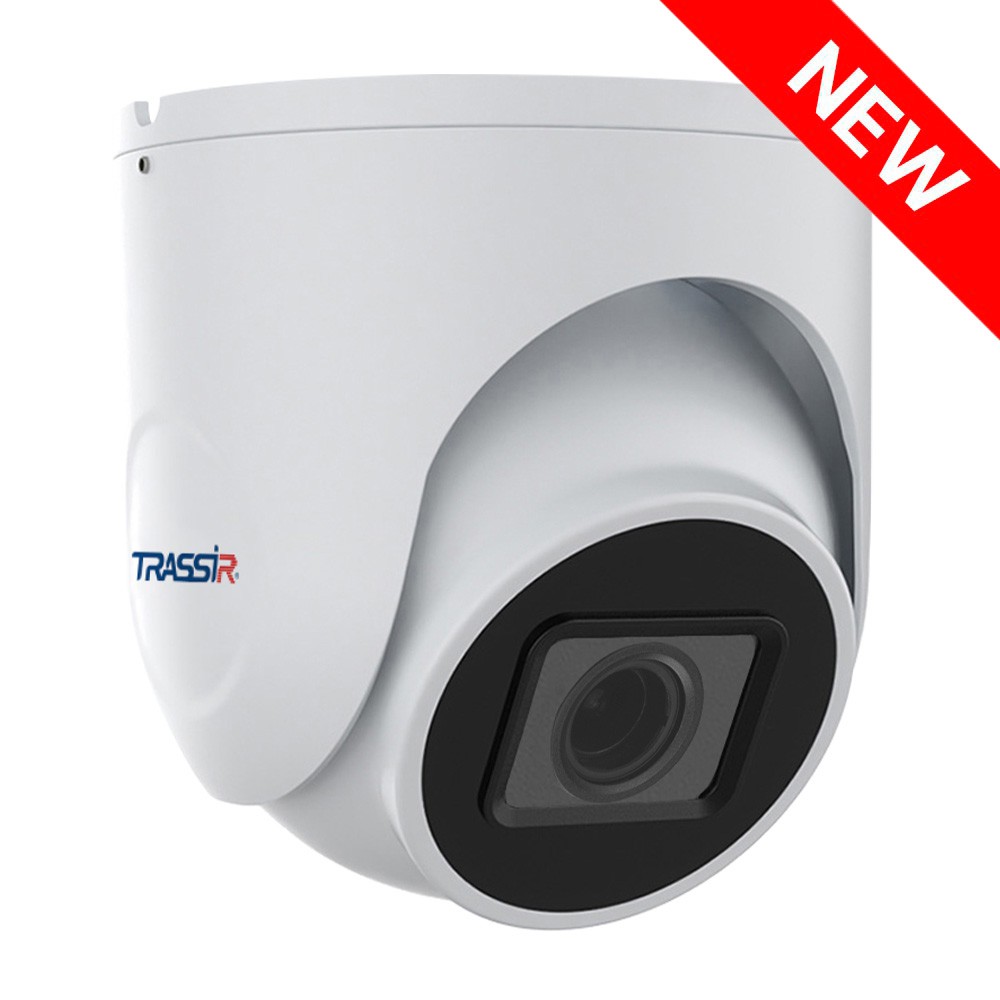

TRASSIR TR-D8153ZIR4 v7 (2.7–13.5 mm)

The TRASSIR TR-D8153ZIR4 v7 2.7–13.5 is a 5 MP (2560×1920) IP camera built for outdoor use in direct access locations, ensuring reliable operation throughout the year and day. It features a robust metal housing with IK10 impact protection and IP66-rated resistance to dust and moisture. The camera works in temperatures ranging from –40 °C to +60 °C and includes 4000 V TVS lightning protection. Its integrated IR illumination supports night vision up to 40 meters.

Parameters:

Blackface IR illumination technology
Detection of people, vehicles, line crossing, and area entry/exit
WDR 120 dB – enhances image quality in multi-contrast lighting
3D DNR – spatial noise reduction for clearer images
Corridor mode – vertical video orientation to minimize blind spots
1/2.8" CMOS sensor with 0.003 lx sensitivity
Motorized varifocal lens (2.7–13.5 mm), horizontal viewing angle: 91°–29°, vertical viewing angle: 69°–22°, aperture: F/1.6
Mechanical IR-cut filter – blocks infrared light in sufficient lighting conditions
Video compression: H.265+, H.265, H.264
Built-in microphone
SD card slot supporting up to 256 GB (hot-swappable)
Interfaces: network port, audio input, audio output, reset button
Power supply: DC 12 V or PoE
Maximum power consumption: 12.8 W
Dimensions: Ø120.0 × 110.8 mm
Weight: 400 g
