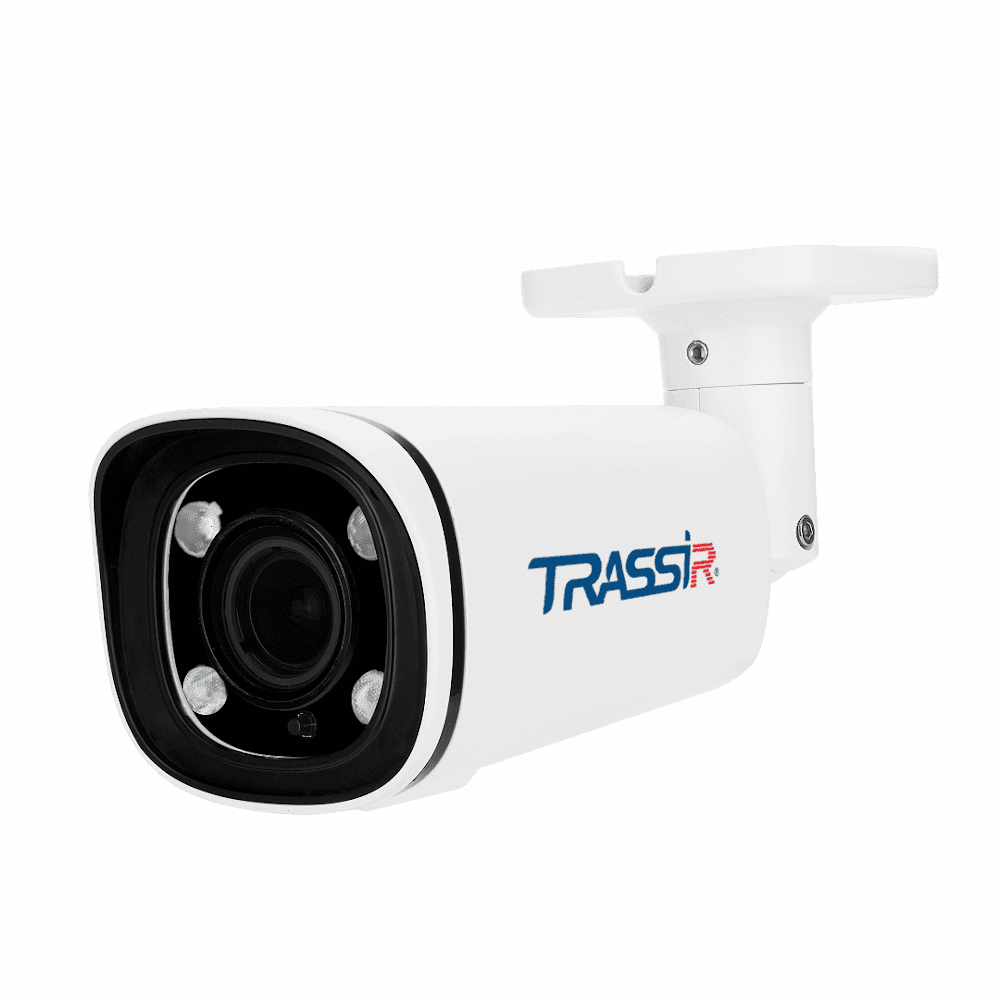

TR-D2224WDZIR7 v2 5-50
Technical specifications
PoE:
69Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
RWDR 120 dBFrame rate:
30Electronic shutter speed:
1/2 ~ 1/1 000 sDigital noise Reduction:
3D DNRCorridor mode:
YesBitrate (Mb/sec):
8Archive, Tb:
151Power supply:
12V DCOverview
2 MP (1920×1080) TRASSIR TR-D2224WDZIR7 v2 5–50 IP camera is adapted for year-round outdoor operation: body protection against moisture and dust - IP67, mechanical impact - IK08, operating temperatures from -40 °C ... +60 °C , lightning protection - TVS 4000 V. H.265+, H.265, H.264 codecs are provided for compression, traffic optimization - 2-stream broadcasting, night video surveillance - IR illumination with a range of 70 m, two-way audio messages with an installation site - built-in microphone, audio input and audio output, additional sensor connections and connection with a PTZ camera - alarm input and output.
Functionality
Basics
TR-D2224WDZIR7 v2 5–50 is built on a 1/2.8-inch CMOS sensor with 0.003 lux sensitivity. Supports day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor to increase its sensitivity. Equipped with a motorized lens (focal length - 5 ~ 50mm, horizontal viewing angle - 45° ~ 10°, vertical - 25° ~ 5°, aperture - F / 1.3), RJ-45 network port, slot for microSD up to 128 GB. Power supply - DC 12 V, PoE. The maximum power consumption is 9.1 W. Size - 234.33 × 77.50 × 73.40 mm. Weight - 635 g.
Functionality
- Detect motion, people, line crossing, zone intrusion, loitering, traffic, people counting.
- WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
- 3D DNR - spatial noise reduction.
- Corridor mode - shooting in vertically oriented resolution.
- Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
- BLC - backlight compensation.
- Bitrate - 8 Mbps.
- The broadcast speed and resolution of the main stream is 25 fps 1920×1080, 1280×960, 1280×720, the secondary stream is 25 fps 704×576, 640×480, 640×360, 352×288.
Basics
TR-D2224WDZIR7 v2 5–50 is built on a 1/2.8-inch CMOS sensor with 0.003 lux sensitivity. Supports day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor to increase its sensitivity. Equipped with a motorized lens (focal length - 5 ~ 50mm, horizontal viewing angle - 45° ~ 10°, vertical - 25° ~ 5°, aperture - F / 1.3), RJ-45 network port, slot for microSD up to 128 GB. Power supply - DC 12 V, PoE. The maximum power consumption is 9.1 W. Size - 234.33 × 77.50 × 73.40 mm. Weight - 635 g.
Documentation
TR-D2224WDZIR7v2_passport_en.pdf
