TR-D4D5 v2 2.8

Technical specifications

PoE:

69

WDR:

DWDR 105 dB

Corridor mode:

Yes

Bitrate (Mb/sec):

8

Archive, Tb:

151

Power supply:

DC 12 V, PoE
Overview

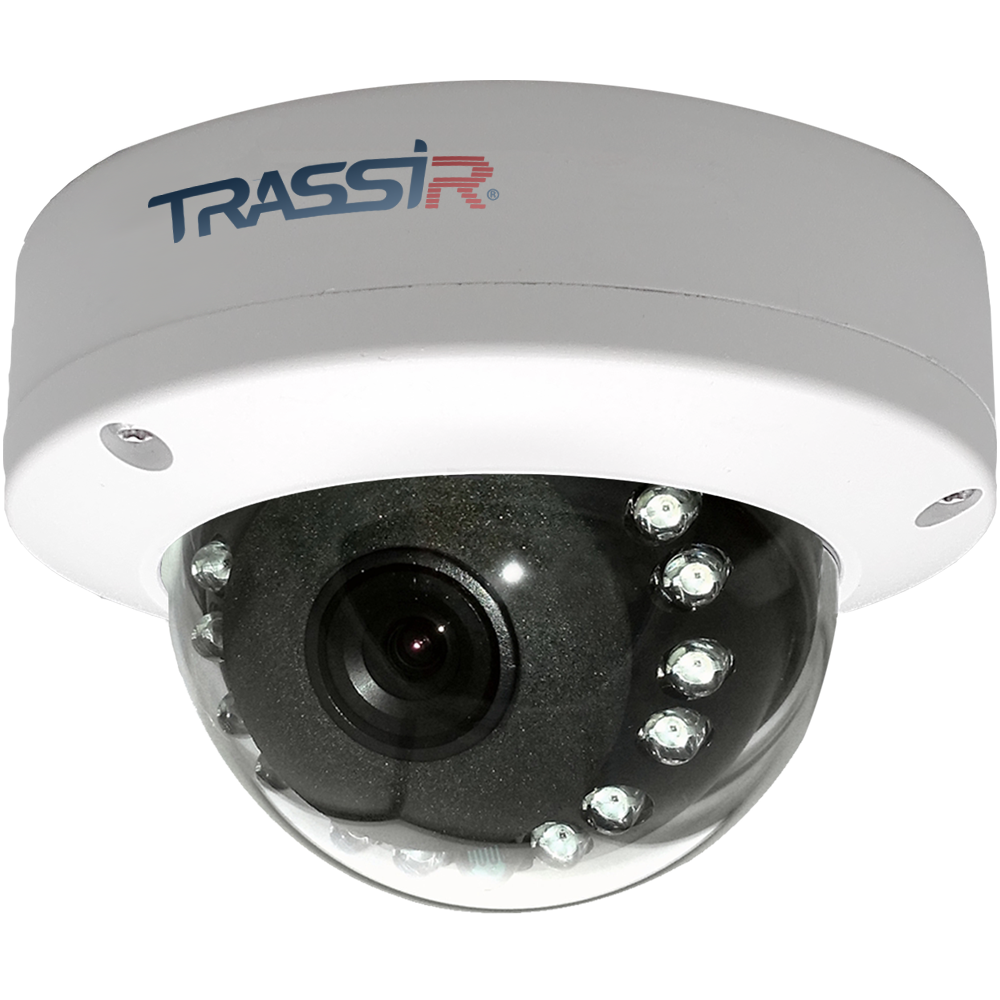

TRASSIR TR-D4D5 v2 (2.8 mm)

4 MP (2560 × 1440) IP-camera adapted for outdoor use, including places of direct access, at any time of the year: supplied in a housing protected from dust and moisture according to IP66, from mechanical impact - IK10, operating temperatures from -40 ° C ... +60 ° C, lightning protection - TVS 4000 V.

Functionality:

  • - Detection of people, movement, crossing of virtual lines, intrusion into prohibited areas and exiting from the area.
  • - IR illumination with a range of 15 m.
  • - WDR 105 dB - Eliminates the effect of fluctuations in the level of illumination on the picture quality.
  • - 3D DNR - Noise Reduction.
  • - Corridor mode (vertically oriented video).
  • - Defog - contrast enhancement to neutralize the effect of fog and smoke.
  • - BLC - Backlight Compensation.
  • - Day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor to increase its sensitivity.
  • - Compression of H.265 +, H.265 and H.264.
  • - Broadcast speed - 25 fps. Bitrate - 8 Mbps.

Basics:

TR-D4D5 v2 (2.8 mm) is built on a 1/3 "CMOS sensor, 0.005 lux sensitivity. Equipped with a 2.8 mm fixed focal length lens, horizontal field of view 94 °, vertical field of view - 50 °. Power supply - DC 12V or PoE Maximum power consumption - 2.9 W. Size - Ø95 × 63 mm Weight - 295 g Case material - metal.
