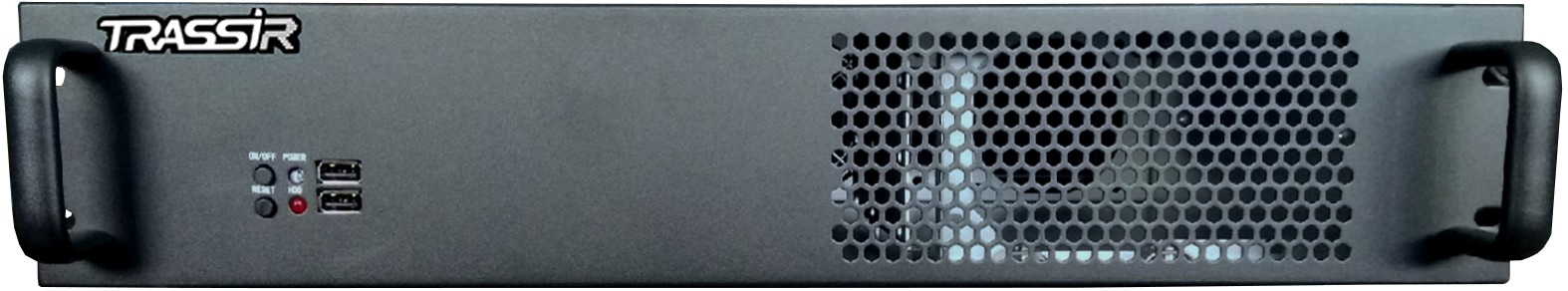

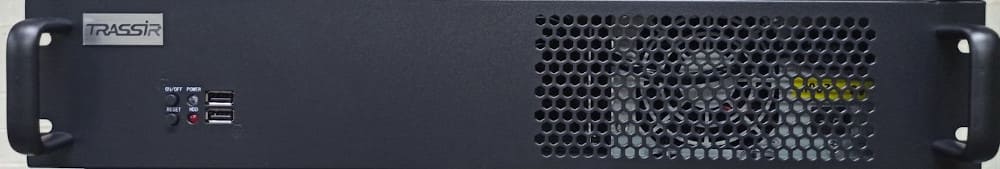

TRASSIR PC Server 8400R/32
Technical specifications
PoE:
69Number of HDD:
4Maximum number of channels:
32Maximum HDD capacity:
No limitsMaximum resolution of cameras:
No limitsCase size for rack:
2UArchive, Tb:
151Power supply:
AC 220 VOverview
PC Server 88400R/32 is designed for 32 IP cameras of any resolution. Equipped with HDMI, D-Sub and DVI video outputs, Gigabit RJ-45, SATA for four 3.5" hard drives of any capacity, six USB 2.0 (four on the rear panel, two on the front), two USB 3.2 (rear panel) , PS/2 Supports H.265, H.265+, H.264, MPEG4, MJPEG video codecs, G711a, G711u, PCM, AAC, G722.1, G726, MP2L2, TCP/IP, IPv4/v6, UDP, DHCP, CloudConnect, DNS, NTP, SADP, SMTP, iSCSI, UPnP, HTTP/HTTPS, RTSP, ONVIF, DualStream, remote connection (up to 100) via TRASSIR client, Android mobile client, iOS, TRASSIR Cloud, Offload -analytics (processing of data coming from other servers), SSL-encryption Supplied with a pre-installed operating system TRASSIR OS based on Linux Recording resolution - unlimited Output resolution: D-Sub, DVI - 2 Mp, HDMI - 8 Mp. Bitrate - 640 Mbps.
Equipment:
Basics:
PC Server series IP video recorders work with analytical modules based on neural networks. The use of neural network technologies has significantly reduced the number of false positives. Power supply - 220 V, power - 500 W, size - 482 × 390 × 89 mm, weight - 5.3 kg, operating temperatures - +10 °C ... +30 °C.
Equipment:
- DVR (assembly and package)
- Keyboard (USB)
- Mouse (USB)
- Power cable
- Technical certificate
- Warranty card
- User's manual
Basics:
PC Server series IP video recorders work with analytical modules based on neural networks. The use of neural network technologies has significantly reduced the number of false positives. Power supply - 220 V, power - 500 W, size - 482 × 390 × 89 mm, weight - 5.3 kg, operating temperatures - +10 °C ... +30 °C.
Documentation
TRASSIR_PC_Server_passport_G24m1_eng.pdf
