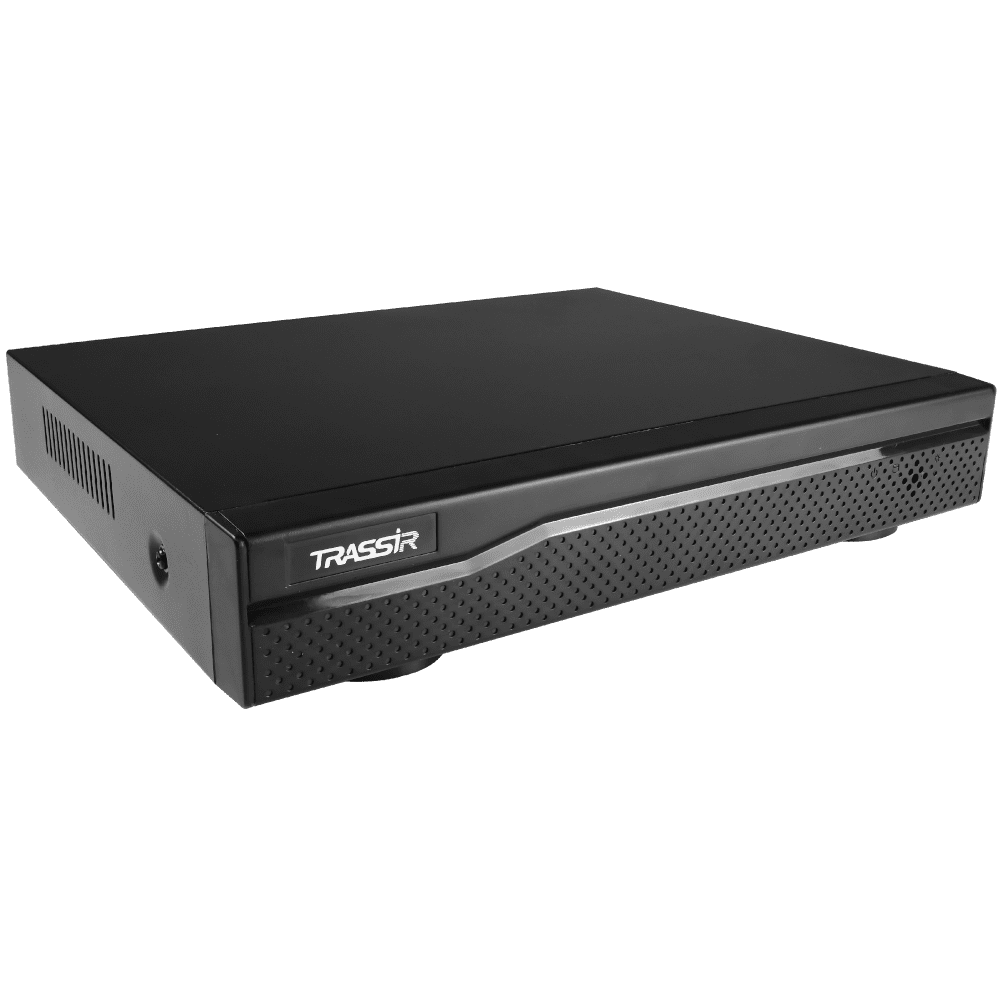

NVR-1104 v2

Technical specifications

PoE:

69

Number of HDD:

1

Maximum number of channels:

4

Maximum HDD capacity:

Up to 8 TB

Maximum resolution of cameras:

Up to 6 Mp

Case size for rack:

Not rack case

Bitrate (Mb/sec):

36

Archive, Tb:

151

Power supply:

12V DC
Overview

The network video recorder is designed to connect 4 IP cameras with a recording resolution of up to 6 megapixels. Delivered with Linux-based TRASSIR OS preinstalled.


NVR-1104 v2 INT is equipped with D-SUB and HDMI video outputs (duplicate), an RJ-45 port, two USB 2.0, 1 HDD (3.5'' and less than 10W).


Equipment:


  •  Network Video Recorder

  •  Power Supply 12V (5A)

  •  Mouse

  •  Datasheet for server


Basics:


Power supply unit power up to 24 W. The operating temperature range is from + 10 ° C to + 45 ° C. The dimensions of the device are 258 х 206 х 45.5 mm.
