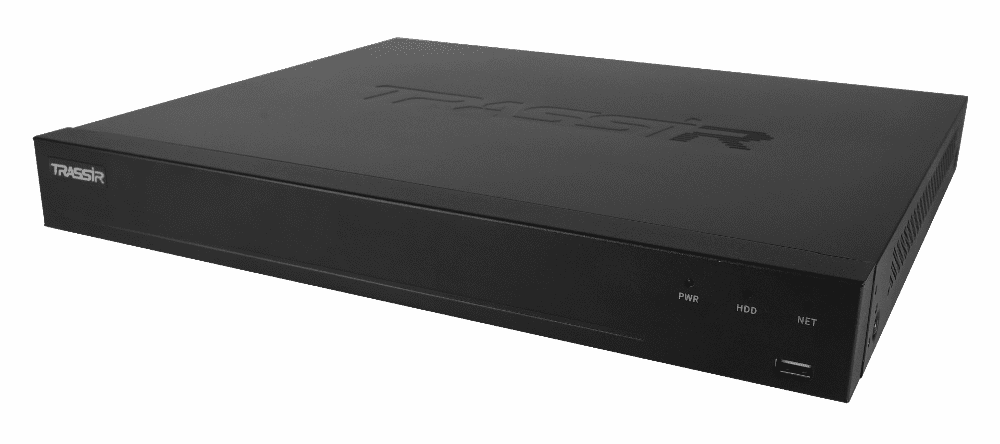

TRASSIR MiniNVR 2216R-16P

Book A Demo How To Buy

Technical specifications

PoE:

Number of HDD:

Maximum number of channels:

Maximum HDD capacity:

Up to 8 TB

Maximum resolution of cameras:

Up to 12 Mp

Case size for rack:

Bitrate (Mb/sec):

256

Archive, Tb:

151

Power supply:

AC 220 V

Overview

TRASSIR MiniNVR 2216R-16P is designed for 16 IP cameras with a resolution of up to 12 megapixels. Equipped with video outputs - HDMI and D-SUB (VGA), Gigabit RJ-45 network port, independent Gigabit PoE RJ-45 ports (for supplying power to cameras simultaneously with data transmission - up to 13 W per port), SATA for two hard drives 3.5 "form factor, USB 2.0 and USB 3.0, audio input and output. Supports H.265 and H.264 codecs. Supplied with Linux-based TRASSIR OS. Recording resolution - up to 12 megapixels. Output resolution: up to 8 megapixels - HDMI, up to 2 Mp - VGA Bit rate - 256 Mbps: 8 Mbps for each main stream, 1 Mbps for additional stream.

Equipment:

Video recorder (assembled and packaged)
Mouse (USB)
Power supply 12 V (5 A)
Power cable
Rack Mount Kit with Screws
Screws for securing hard drives
Technical certificate

Basics:

Power supply - AC 220 V, power - 280 W. Dimensions - 382 × 332 × 47 mm, gross weight - 3.8 kg. Operating temperatures - 0 ° C ... +30 ° C.

Documentation

TRASSIR_NVR_passport_A7m1_en.pdf
