TRASSIR PC Server 8800R/64
Technical specifications
PoE:
69Number of HDD:
8Maximum number of channels:
64Maximum HDD capacity:
No limitsMaximum resolution of cameras:
No limitsCase size for rack:
2UBitrate (Mb/sec):
720Archive, Tb:
151Power supply:
AC 220 VOverview

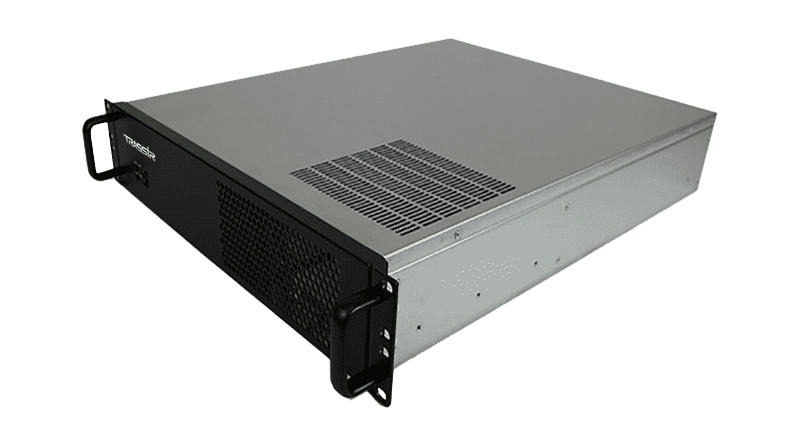

PC Server 8800R / 64
The recorder is designed for 64 IP cameras - no resolution restrictions. Equipped with DVI-D, DisplayPort and D-SUB (VGA) video outputs, two RJ-45 (2 Ethernet 10/100/1000 Mbps), SATA for eight hard drives, two USB 2.0 on the front panel, five USB 3.0, one Rear USB 3.1, PS / 2, audio in and audio out. Supports H.265, H.265 +, H.264, MPEG4, MJPEG codecs. Comes with a preinstalled TRASSIR OS operating system with a set of basic functions. Recording resolution - unlimited. Output Resolution: FullHD on D-SUB (VGA) and DVI-D, 4K on DisplayPort.
Equipment:
Basics:
Power supply - 220 V, power - 500 W, size - 485 × 555 × 90 mm, gross weight - 18.1 kg, rack height - 2 U. Operating temperatures - +10 ° C ... +30 ° C.
The recorder is designed for 64 IP cameras - no resolution restrictions. Equipped with DVI-D, DisplayPort and D-SUB (VGA) video outputs, two RJ-45 (2 Ethernet 10/100/1000 Mbps), SATA for eight hard drives, two USB 2.0 on the front panel, five USB 3.0, one Rear USB 3.1, PS / 2, audio in and audio out. Supports H.265, H.265 +, H.264, MPEG4, MJPEG codecs. Comes with a preinstalled TRASSIR OS operating system with a set of basic functions. Recording resolution - unlimited. Output Resolution: FullHD on D-SUB (VGA) and DVI-D, 4K on DisplayPort.
Equipment:
- Video recorder (assembled and packaged)
- Mouse (USB)
- Keyboard
- Telescopic guides
- Power cable
- SATA cable
- Technical certificate
- Warranty card
- User guide
Basics:
Power supply - 220 V, power - 500 W, size - 485 × 555 × 90 mm, gross weight - 18.1 kg, rack height - 2 U. Operating temperatures - +10 ° C ... +30 ° C.
Documentation
TRASSIR_PC Server_passport_G27m8_en.pdf
