TR-H2L1 3.6

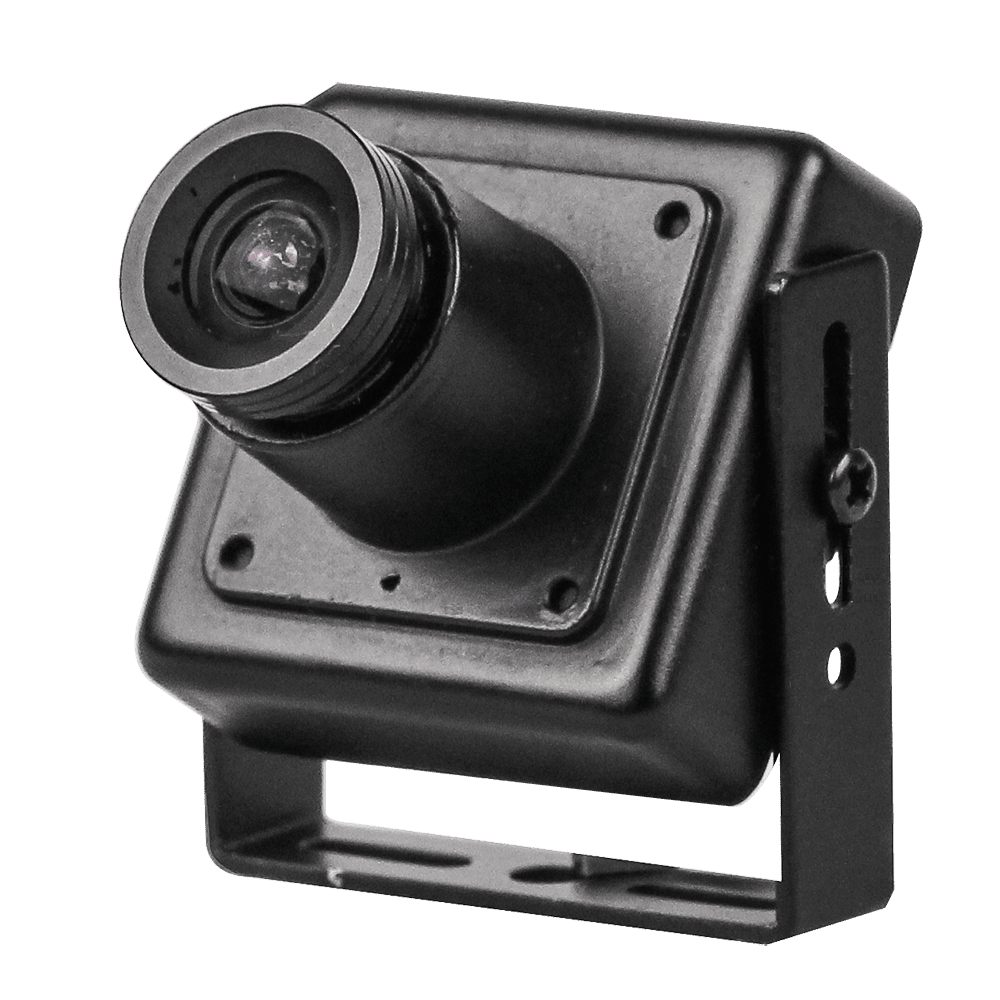

TRASSIR TR-H2L1 (3.6 mm) 2 MP analog camera (1920 × 1080) is integrated in a micro enclosure, the largest side of which measures 32 mm. Compatible with AHD, HD-CVI, HD-TVI data transfer formats: transmits an uncompressed 2 MP video signal via coaxial cable over a distance of up to 500 m (1,000 ft). Resolution by format:- AHD — 2 MP.- HD-CVI — 2 MP.- HD-TVI — 2 MP.- PAL — 960H Functionality:- DWDR is a software-based image processing solution designed to enhance the visibility of shaded objects.- 2D DNR: Noise reduction.- Day/night mode with an electronic IR cut-off filter that blocks infrared rays.- Broadcast speed: 25 frames per second.

Specifications:

TR-H2L1 (3.6 mm) is built on a 1/2.9" progressive scan CMOS matrix with a sensitivity of 0.01 lux. Equipped with a 3.6 mm fixed focal length lens. Power supply: 12 V DC.
Current consumption: 300 mA. Size: 30 × 33 × 30 mm Working temperature: –10 °C... +50 °C.

Basics:

TR-H2L1 (3.6 mm) is built on a 1/2.9" progressive scan CMOS matrix with 0.01 lux sensitivity . Equipped with a 3.6 mm fixed focal length lens. Power supply: 12 V DC. Current consumption: 300 mA. Size: 30 × 33 × 30 mm Working temperature: –10 °C to +50 °C.
