TR-D2224WDZIR7 5-50
Technical specifications
PoE:
69Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
RWDR 120 dBFrame rate:
25Bitrate (Mb/sec):
8Archive, Tb:
151Power supply:
12V DCOverview

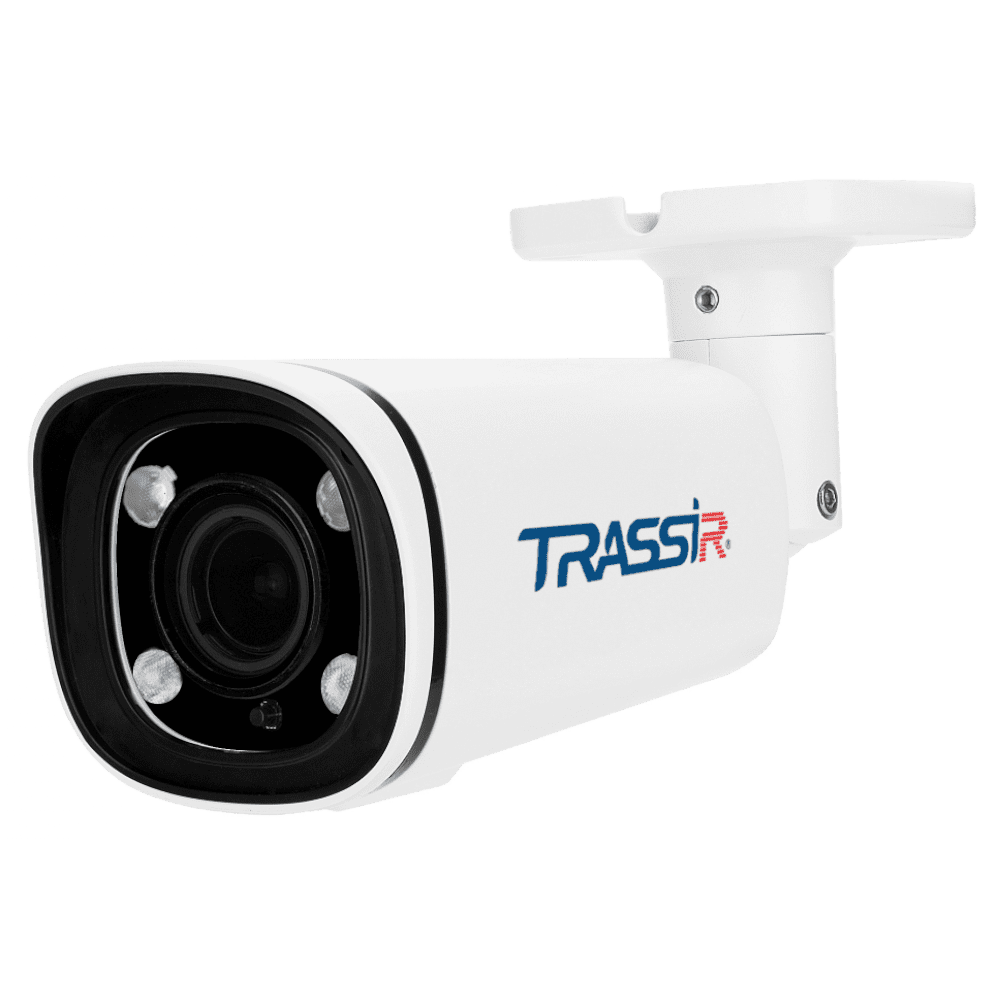

TRASSIR TR-D2224WDZIR7
Functionality:
Basics:
TRASSIR TR-D2224WDZIR7 supports day / night with ICR, compresses video with H.265, H.265 + and H.264 codecs, broadcasts data at 25 fps simultaneously with two streams - to reduce the load on the network / server.
Interfaces: RJ-45 with PoE support, audio in / out and a built-in microphone, a connector for a power supply (not included), a slot for a microSD card with a capacity of up to 128 GB. Power supply - DC 12V / PoE. At peak loads, the camera draws a maximum of 11 watts. Dimensions - 233.4 × 77.5 × 80.0 mm, weight - 6350 g.
2 megapixel (1920 × 1080) IP-camera is supplied in a housing that meets the requirements of the standard for protection of the enclosure against dust and moisture IP67, against mechanical influences - IK08, which, together with an operating temperature range of -40 ° C ... +60 ° C and TVS 4000V lightning protection ensures stable operation of the device outdoors, regardless of the season. Equipped with a motorized lens 5 ~ 50 mm - for almost instant 10-fold increase of the desired fragment, IR illumination with a range of 70 m - for night video monitoring with control of a large area. Viewing angles: horizontal - 42.3 ° ~ 7.8 °, vertical - 23.7 ° ~ 4.5 °.
Functionality:
- - WDR 120 dB - double scanning with different shutter speeds (within 120 dB) and subsequent convergence of two frames into one balanced in terms of brightness, to minimize the effect of changes in the level of illumination on the picture quality.
- - 3D DNR - Noise Reduction.
- - BLC - Back Light Compensation.
- - HLC - local exposure masking.
- - Defog - neutralization of blur introduced by fog, smoke, dusting of the scene by improving the contrast.
Basics:
TRASSIR TR-D2224WDZIR7 supports day / night with ICR, compresses video with H.265, H.265 + and H.264 codecs, broadcasts data at 25 fps simultaneously with two streams - to reduce the load on the network / server.
Interfaces: RJ-45 with PoE support, audio in / out and a built-in microphone, a connector for a power supply (not included), a slot for a microSD card with a capacity of up to 128 GB. Power supply - DC 12V / PoE. At peak loads, the camera draws a maximum of 11 watts. Dimensions - 233.4 × 77.5 × 80.0 mm, weight - 6350 g.
Documentation
TR-D2224WDZIR7_passport_en.pdf
