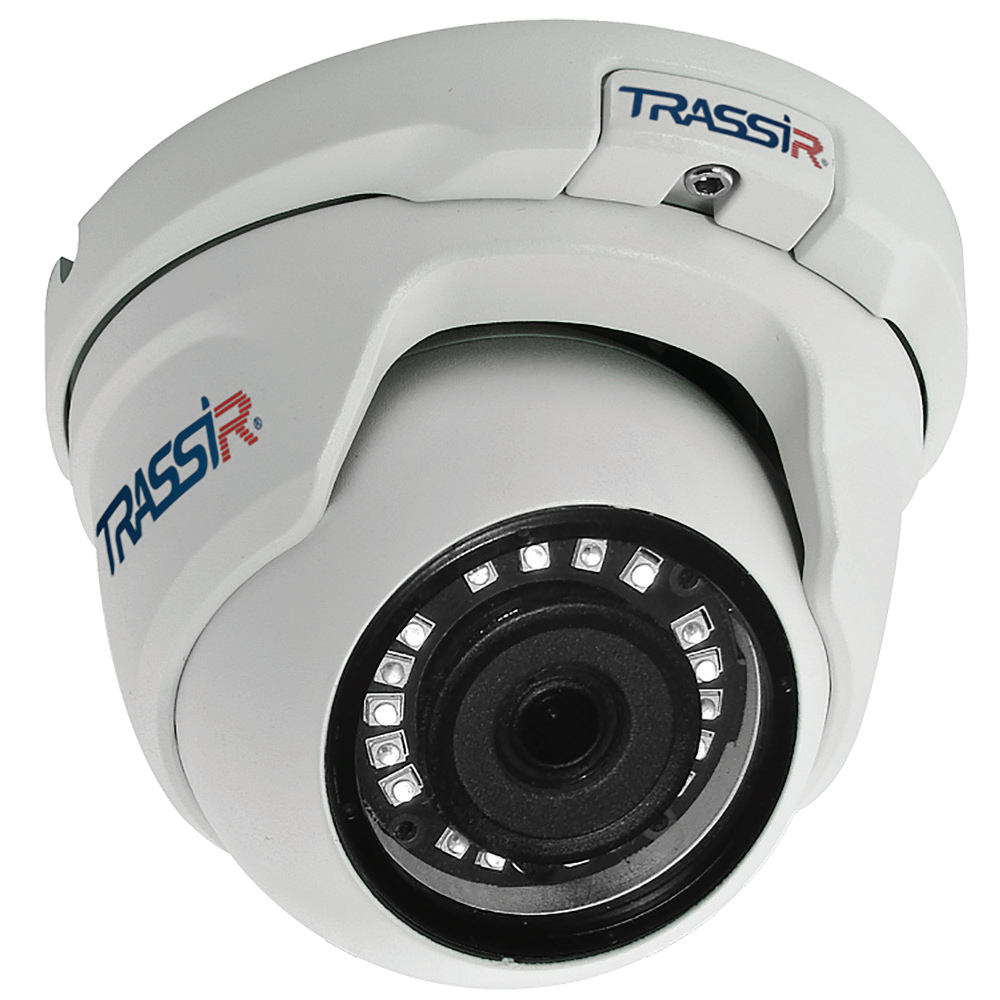

TR-D4S5 v3 2.8

The 4 MP (2560×1440) IP camera TRASSIR TR-D4S5 v3 2.8 is designed for outdoor use in any weather conditions, subjected to direct exposure to precipitation. The camera's housing is protected from dust and moisture according to IP66 standards, and it has an extended operating temperature range from -40°C to +60°C. Additionally, it features TVS 4000 V surge protection and IR illumination with a range of up to 25 meters.

Functionality:

· Detection: People, motion, crossing of virtual lines, intrusion into zones, zone exiting.

· WDR 105 dB: Minimization of the influence of changes in illumination level on image quality.

· 3D DNR: Noise reduction.

· Defog: Contrast enhancement to neutralize the effect caused by fog or smoke.

· BLC: Backlight compensation.

· Day/Night mode with ICR: When there is sufficient light, the filter blocks IR rays to optimize color reproduction. In darkness, it mechanically shifts to increase matrix sensitivity.

· Compression: H.265+, H.265, and H.264.

· Transmission speed: 25 fps. Bitrate: 8 Mbps.

· Protocols: TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, UpnP, SMTP, ONVIF.\

Basics:

The TR-D4S5 v3 2.8 is equipped with a 1/3" CMOS sensor with progressive scanning and sensitivity of 0.005 lux. The fixed-focus lens with a focal length of 2.8 mm provides horizontal and vertical viewing angles of 94° and 50°, respectively. Power can be supplied from a DC 12 V source or via PoE. Maximum power consumption is 4 W. The camera dimensions are 106.00×96.87×73.50 mm, and it weighs 335 g. The housing is made of metal.
