TR-D3121IR2W v3 2.8
Technical specifications
PoE:
69Audio:
Built-in microphoneWDR:
RWDR 120 dBFrame rate:
25Bitrate (Mb/sec):
8Archive, Tb:
151Power supply:
12V DCOverview

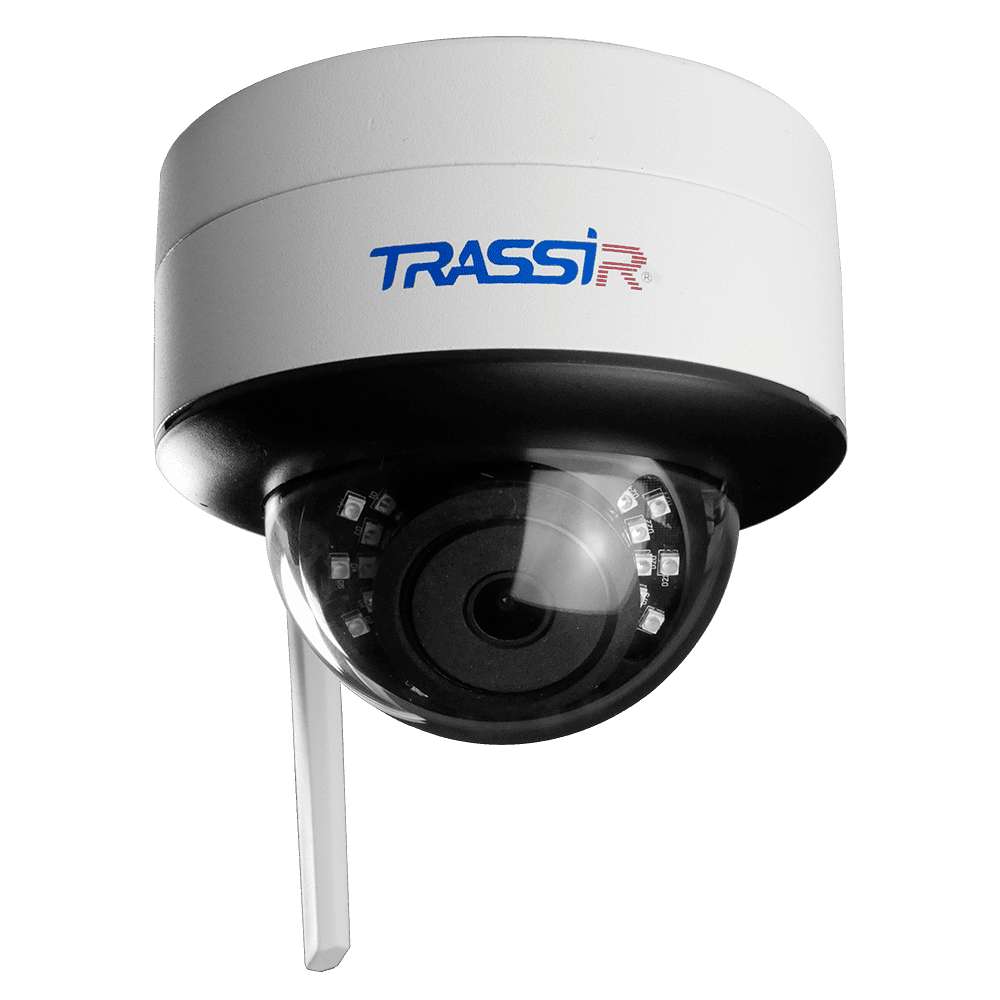

TRASSIR TR-D3121IR2W v3 (2.8 mm)
2MP (1920 × 1080) IP-camera is adapted for outdoor use, including in places of direct access, at any time of the year: protection of the case against moisture and dust meets the IP66 standard, against mechanical influences - the IK10 code, operating temperatures from -40 ° C… +60 ° C, range of built-in IR illumination - 25 m.
Functionality:
Basics:
TR-D3121IR2W v3 (2.8 mm) is based on a high-sensitivity (0.005 lux) CMOS sensor 1 / 2.7 inches, equipped with a 2.8 mm fixed focal length lens, F / 1.8 aperture, horizontal field of view 100 °, vertical field - 54 °. Equipped with an RJ-45 network port, a microSD slot with a capacity of up to 128 GB. Power supply - DC 12 V. Power consumption - 3.8 W max. Dimensions - Ø116.1 × 96.5 mm, weight - 460 g.
2MP (1920 × 1080) IP-camera is adapted for outdoor use, including in places of direct access, at any time of the year: protection of the case against moisture and dust meets the IP66 standard, against mechanical influences - the IK10 code, operating temperatures from -40 ° C… +60 ° C, range of built-in IR illumination - 25 m.
Functionality:
- - Built-in microphone.
- - People detection.
- - Motion detection software.
- - Detection of crossing the virtual line and control of the area (detector of intrusion / exit from the zone).
- - WDR 120 dB - reducing the influence of changes in the level of illumination on the image quality: double scanning with different shutter speeds and the subsequent formation of the final balanced frame.
- - 3D DNR - spatial noise reduction.
- - BLC - backlight correction.
- - Corridor mode (vertically oriented resolution).
- - Defog - elimination of imperfections introduced by fog or smoke.
- - Compression of H.264 and H.265, H.264 + and H.265 +.
- - Broadcast speed - 25 fps. Bitrate - 8 Mbps.
- - Day / night with mechanical IR cut filter to refract IR rays in sufficient light; in the dark, the filter is shifted away from the matrix to increase its sensitivity and backlight operation.
Basics:
TR-D3121IR2W v3 (2.8 mm) is based on a high-sensitivity (0.005 lux) CMOS sensor 1 / 2.7 inches, equipped with a 2.8 mm fixed focal length lens, F / 1.8 aperture, horizontal field of view 100 °, vertical field - 54 °. Equipped with an RJ-45 network port, a microSD slot with a capacity of up to 128 GB. Power supply - DC 12 V. Power consumption - 3.8 W max. Dimensions - Ø116.1 × 96.5 mm, weight - 460 g.
Documentation
TR-D3121IR2Wv3 passport (eng).pdf
