Technical specifications

PoE:

Audio:

Built-in microphone

WDR:

RWDR 120 dB

Bitrate (Mb/sec):

Archive, Tb:

151

Power supply:

DC 12 V, PoE

Overview

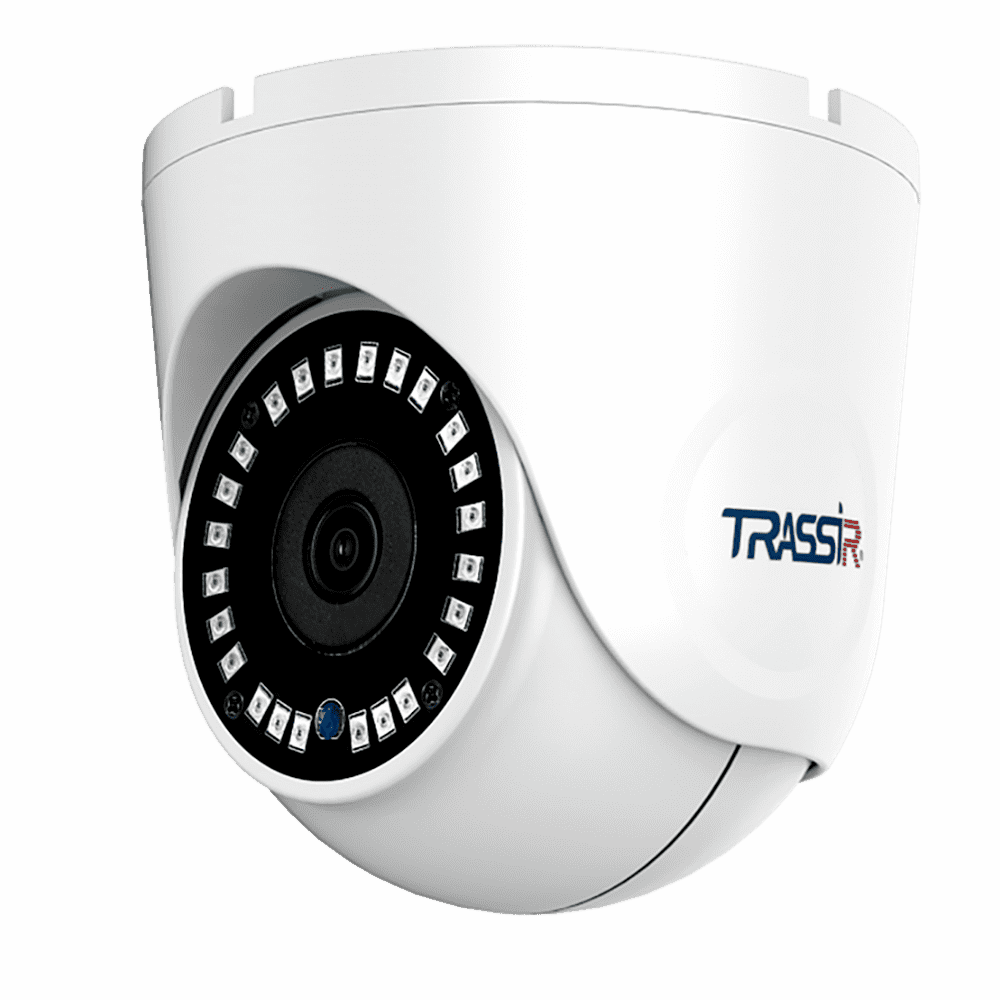

TRASSIR TR-D8122ZIR2 v6 (2.8-8.0 mm)

2 MP (1920 × 1080) IP-camera is adapted for round-the-clock outdoor operation in places of direct access under the influence of precipitation - at any time of the year: the metal case is protected from mechanical stress according to the IK10 code, from moisture and dust - according to the IP66 standard, operating temperatures from –40 ° C… +60 ° C, lightning protection - TVS 4000 V, range of integrated IR - 25 m.

Functionality:

- WDR 120 dB - minimizes the effect of different contrast lighting on image quality.
- 3D DNR - spatial noise reduction.
- Support for shooting in vertical resolution (corridor mode) with an aspect ratio of 9:16.
- Defog - Increases the contrast to eliminate the effect of fog or smoke in the scene.
- Broadcast speed - 25 fps.
- BLC - Backlight Compensation.
- Day / night mode with ICR, with sufficient illumination blocking IR rays (in the dark it is shifted to increase the sensitivity of the matrix and the backlight).

Basics:

For timely response to events and automation, analytical functions are provided - people and movement detection, detection of crossing a virtual line, area control (intrusion / exit detector), for almost instant scaling of the picture in real time - a 2.8 ~ 8.0 mm motorized lens with a viewing angle horizontally 91 ° ~ 54 °, vertical - 50 ° ~ 30 °, for compression - H.264 +, H.264, H.265 +, H.265 codecs, for audio control - built-in microphone. Interfaces: RJ-45 network port, microSD slot up to 128 MB, power connector. Power supply - DC 12 V, PoE. Power consumption - 5.8 W maximum. Dimensions - Ø92.8 × 92.2 mm. Weight - 380 g.

Documentation

TR-D8122ZIR2v6_passport_en.pdf
