TR-D2253WDIR7 v2 2.7-13.5
Technical specifications
PoE:
69Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
RWDR 120 dBFrame rate:
25Electronic shutter speed:
1/2 ~ 1/1 000 sDigital noise Reduction:
3D DNRCorridor mode:
YesBitrate (Mb/sec):
8Archive, Tb:
151Power supply:
12V DCOverview

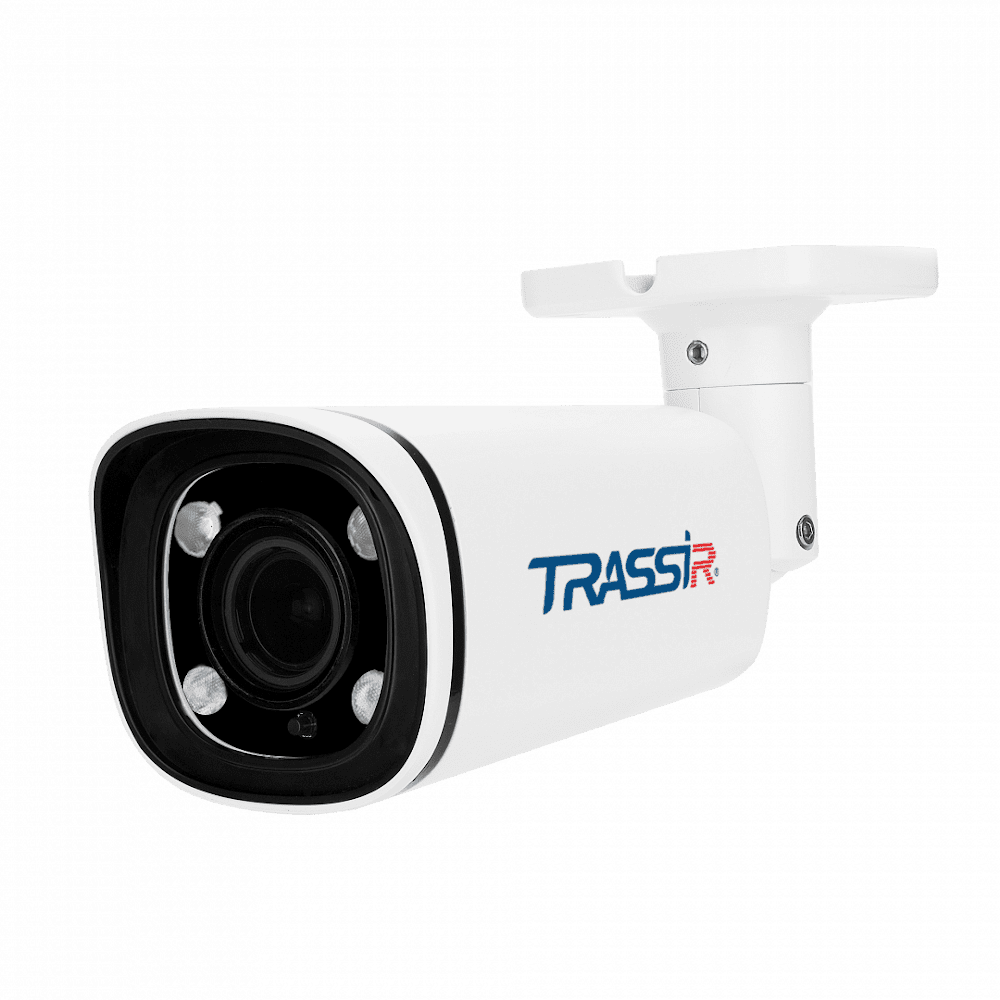

The shock-resistant (IK08) 5 MP (2592×1920) IP camera TRASSIR TR-D2253WDIR7 v2 2.7–13.5 comes in a housing protected from moisture and dust according to the IP67 standard, which, coupled with operating temperatures from -40 °C ... +60 °C and lightning protection TVS 4000 V ensures stable operation of the device on the street, regardless of the season.
Functionality
Motion detection, faces (optional), cars, people counting.
Detection of virtual line crossing, area intrusion, area exit, loitering.
WDR 120 dB - reducing the effect of changes in light levels on picture quality.
3D DNR - spatial noise reduction.
Corridor mode - shooting in vertically oriented resolution.
Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
BLC - backlight compensation.
The broadcast speed is 25 frames per second.
Compression H.265+, H.265, H.264+, H.264.
Bitrate - 8 Mbps.
Basics
The camera supports day / night mode with ICR: when there is enough light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor so that its sensitivity is increased and the backlight can work. Equipped with 2.7 ~ 13.5mm zoom lens, horizontal 93° ~ 29°, vertical 69° ~ 22°, F/1.3 aperture, RJ-45 network port, audio input, audio output and integrated microphone, alarm input and alarm output, slot for microSD up to 128 GB. Power supply - 12 VDC, PoE. Maximum power - 8.4 W. Size - 234.33x77.5x75.31 mm. Weight - 635 g.
Functionality
Motion detection, faces (optional), cars, people counting.
Detection of virtual line crossing, area intrusion, area exit, loitering.
WDR 120 dB - reducing the effect of changes in light levels on picture quality.
3D DNR - spatial noise reduction.
Corridor mode - shooting in vertically oriented resolution.
Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
BLC - backlight compensation.
The broadcast speed is 25 frames per second.
Compression H.265+, H.265, H.264+, H.264.
Bitrate - 8 Mbps.
Basics
The camera supports day / night mode with ICR: when there is enough light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor so that its sensitivity is increased and the backlight can work. Equipped with 2.7 ~ 13.5mm zoom lens, horizontal 93° ~ 29°, vertical 69° ~ 22°, F/1.3 aperture, RJ-45 network port, audio input, audio output and integrated microphone, alarm input and alarm output, slot for microSD up to 128 GB. Power supply - 12 VDC, PoE. Maximum power - 8.4 W. Size - 234.33x77.5x75.31 mm. Weight - 635 g.
Documentation
TR-D2253WDIR7v2_passport_en.pdf
