TR-D8221WDCL3

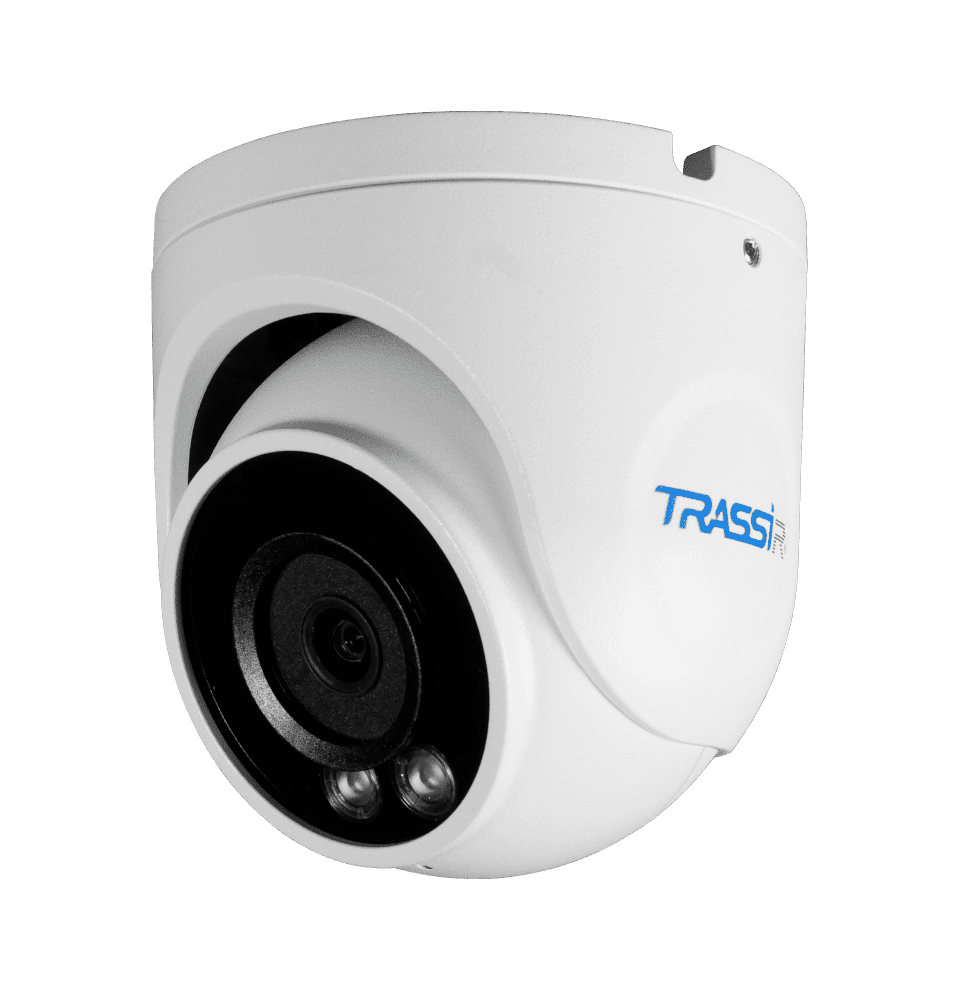

The 2MP (1920×1080) IP-camera TRASSIR TR-D8221WDCL3 (4 mm) comes in a waterproof and dustproof IP66 enclosure, which combined with a working temperature range -40 ° C ... +60 ° C and 4000 V lightning protection ensures stable operation outdoors no matter the time of year.

Thanks to a high-sensitivity (0.0015 lux) 1/2.8-inch CMOS-matrix, high-aperture (F/1.0) lens and white LED illumination with a range of 30 m TR-D2221WDCL4 (4 mm), the camera produces color video around the clock.

Features

• Detection of people who cross the virtual line specified, enter the area, leave the area, or walk across the area.

• Software detects motion, loitering.

• Visitor counting.

• Built-in microphone.

• Corridor mode (vertically oriented video).

• WDR 120 dB provides double scanning at different exposures and then combines the frames into one balanced frame.

• 3D DNR provides noise reduction.

• BLC - back light compensation.

• Defog is a contrast enhancement feature that neutralizes imperfections caused by fog or smoke in the scene.

• Compression H.264, H.265 and H.265+.

• Bradcast speed 25fps. Bitrate 8 mbps.

The TR-D8221WDCL3 (4mm) is equipped with a microSD slot up to 128GB. By default, the camera activates the motion detection recording function once an SD card is inserted. The recorded archive can be viewed through the TRASSIR-Client application if the camera is connected to the TRASSIR Cloud. To ensure the SD card works correctly, it must be formatted beforehand.

Main features

The focal length of the lens is 4 mm, the horizontal viewing angle is 80°, and the vertical is 43°. Interfaces: RJ-45 network port, audio output, alarm input, alarm output, power connector. The camera has several axes of rotation, allowing you to adjust the direction of view without re-mounting. Power supply - DC 12 V, PoE. Maximum power consumption - 4.8 W max. Size - Ø93.0×92.2 mm, weight - 400 g.
