Technical specifications

PoE:

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

RWDR 120 dB

Bitrate (Mb/sec):

Archive, Tb:

151

Power supply:

DC 12 V, PoE

Overview

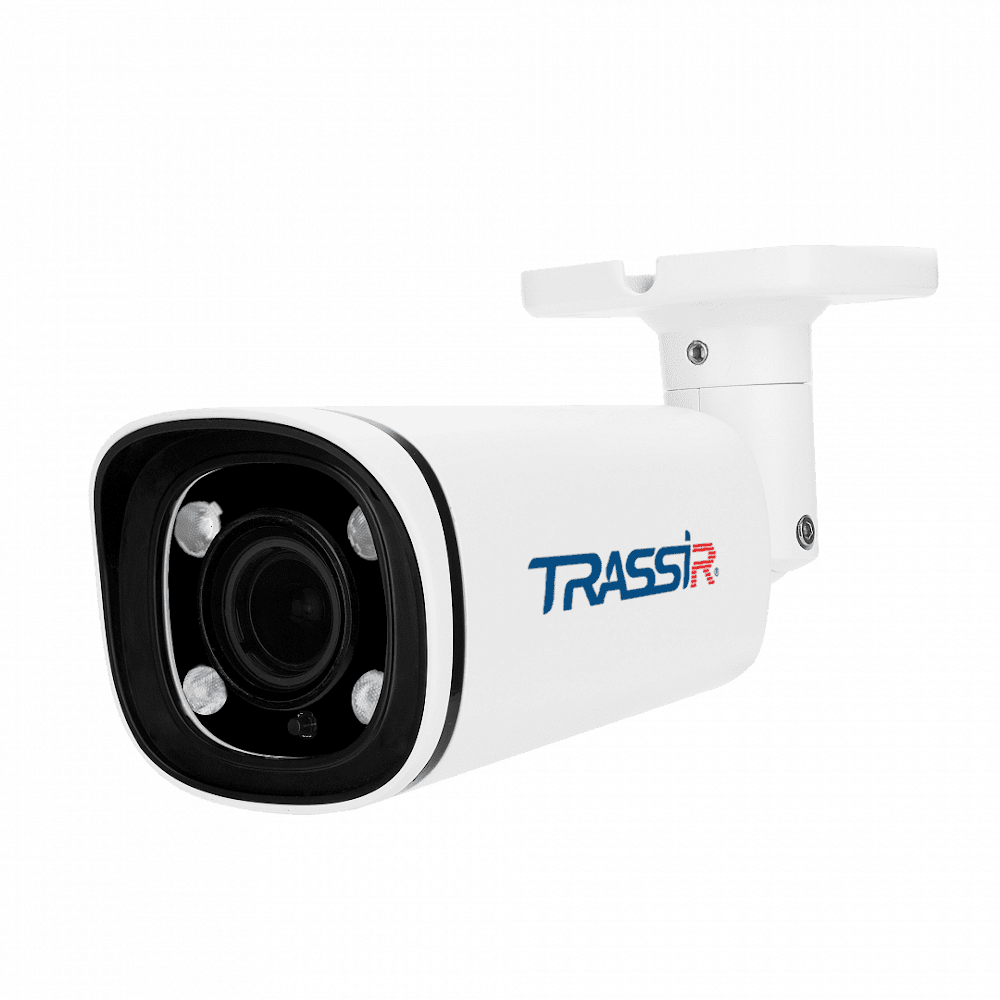

TRASSIR TR-D2123IR6 v6 (2.7-13.5 mm)

Impact-resistant 2 Mp (1920 × 1080) IP-camera for outdoor use at any time of the year is supplied in a metal case, protected from moisture and dust according to IP67, from mechanical influences - IK08, stably operates in the temperature range -40 ° C ... +60 ° C. Lightning protection TVS 4000 V is provided.

Functionality:

- Software detection of movement and people.
- Detection of crossing the virtual line.
- Area control (detection of intrusion / exit from the zone).
- IR illumination with a range of 60 m.
- WDR 120 dB - minimizes the effect of different contrast lighting on image quality.
- 3D DNR - spatial noise reduction.
- Support for shooting in vertical resolution (corridor mode) with an aspect ratio of 9:16.
- Defog - Increases the contrast to eliminate the effect of fog or smoke in the scene.
- BLC - Backlight Compensation.
- Day / night mode with ICR, with sufficient illumination blocking IR rays (in the dark it is shifted to increase the sensitivity of the matrix and the backlight).

Basics:

TR-D2123IR6 v6 (2.7-13.5 mm) is equipped with a 2.7 ~ 13.5 mm variable focal length lens, horizontal field of view 100 ° ~ 28 °, vertical field of view - 56 ° ~ 15 °. Equipped with an RJ-45 network port, a microSD slot with a capacity of up to 128 MB, a power connector. Power Supply - 12V DC or PoE. The maximum power consumption is 5.8 W. Dimensions - 234.2 × 77.3 × 73.2 mm. Weight - 635 g.

Documentation

TR-D2123IR6v6_passport_en (1).pdf
